| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 200 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Processing Technology: | CNC Machining | Hardness: | Customized |
|---|---|---|---|
| Teeth Profile: | Helical | Surface Finish: | Polishing |
| Diameter: | Customized | Usage: | Power Transmission |
| Heat Treatment: | Quenching And Tempering | ||
| Highlight: | 62HRC Gear Shaft,Grinding Gear Shaft |
||

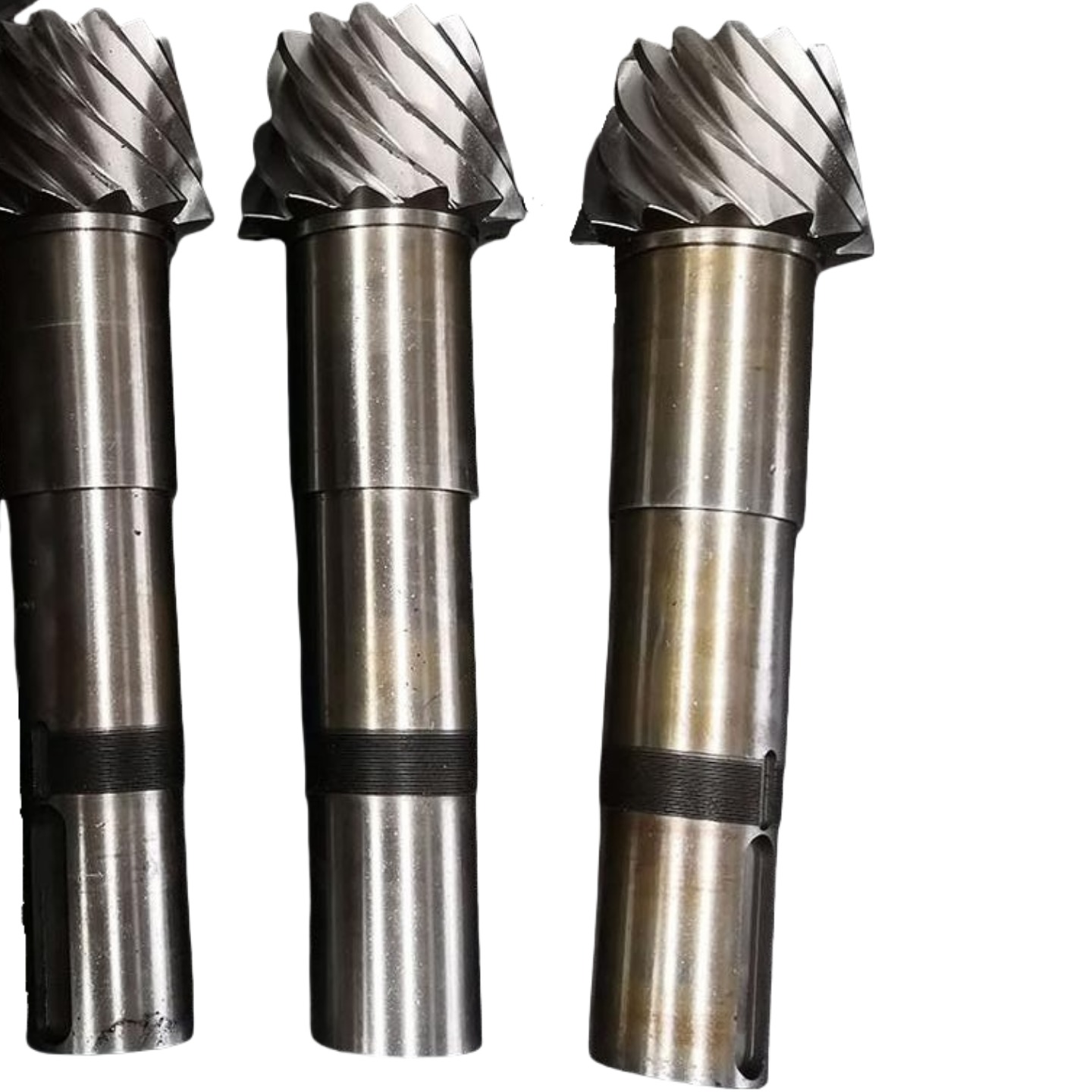

1) Descriptions of Transmission Gear Shaft
Transmission gear shaft is the core component for transmitting power and torque in the mechanical transmission system,
which is usually assembled by integrating or separating the shaft body and gears.
2) Features of Transmission Gear Shaft
a) High-precision fit: gears and shafts are processed with high precision to ensure smooth transmission.
b) Compact structure: integrated design can reduce space occupation.
c) High load capacity: suitable for high torque scenarios.
3) Working Principle of Transmission Gear Shaft
The rotary motion of the input shaft is transmitted to the output shaft through gear meshing, enabling the conversion of speed and torque.
4) Application of Transmission Gear Shaft
Widely used in gearboxes, reducers, machine tools and other precision machinery.
| Products | Transmission Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Gear Teeth Manufacturing | Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
