| Module: | 16.477 | Pressure Angle: | 20° |
|---|---|---|---|
| Helix Angle: | 15° | Material: | 17CrNiMo6 |
| Heat Treatment: | Carburizing | Manufacture Processing: | Gear Teeeth Grinding |
| Highlight: | 16.477 Module Steel Spiral Bevel Gears,Internal Rectangular Spline bevel spiral gear,16.477 Module bevel spiral gear |
||
1) Description of spiral bevel gear
Spiral bevel gear is a special type bevel gear, a spiral bevel gear with a cruve helical angle.
2) Gear quality of spiral bevel gear
Standard spiral bevel gear manufactured by gear teeth milling processing.
The spiral bevel gear can be with gear teeth grinding processing after heat treatment.
The gear teeth quality can reach ISO 5-6 grade (AGMA 10-11 Grade)

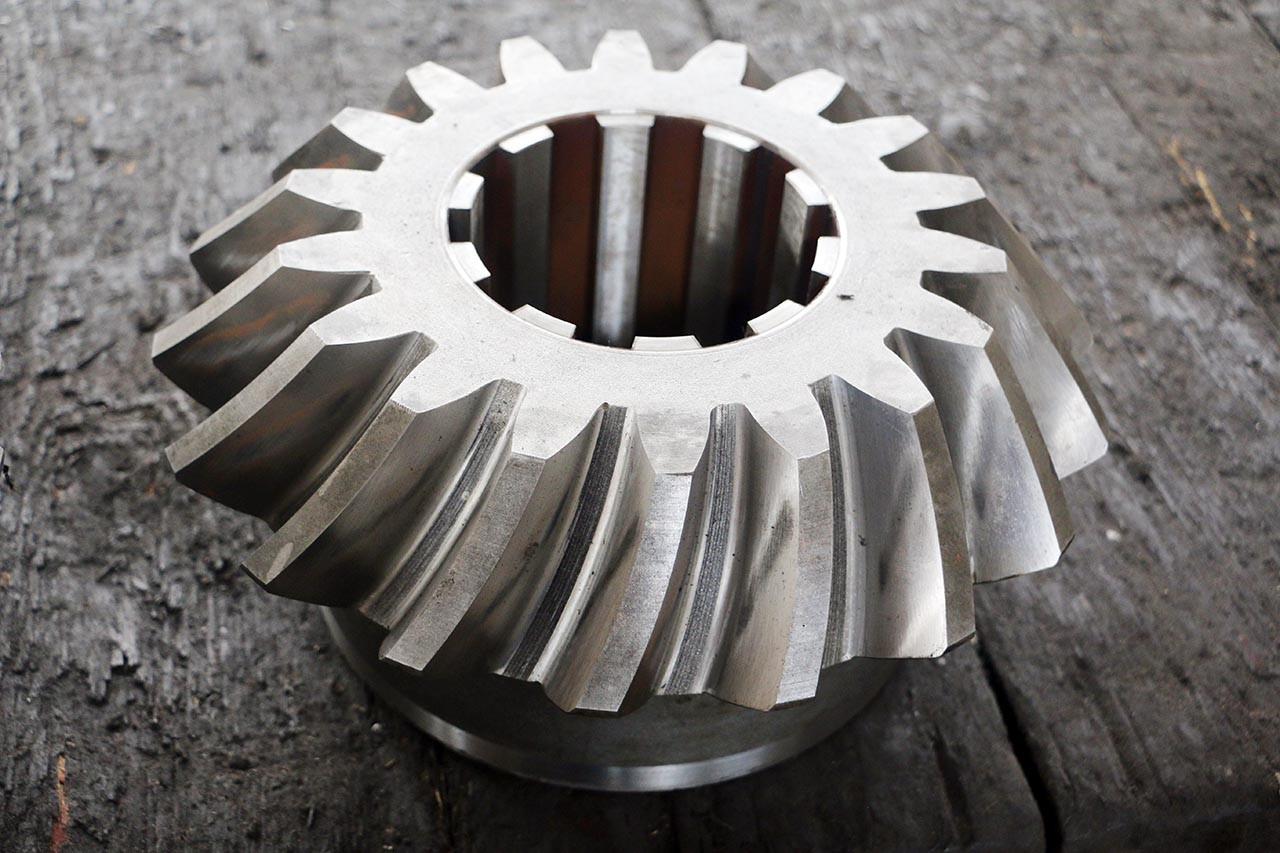

| Products | Spiral Bevel Gears With Internal Splines |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Worm Gear Manufacturing | Gear Milling & Gear Teeth Grinding |
| Worm Shaft Teeth Grinding | √ |
| Module (M) | 16.477 |
| Number of Teeth (Z) | 18 & 23T |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Worm Shaft Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
