| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB2207003 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| DP: | 1.8 | Teeth Number: | 36& 48T |
|---|---|---|---|
| Helix Angle: | 35° | Material: | SAE 4320 |
| Heat Treatment: | Carburizing | Quality Grade: | ISO 6 Grade AGMA 11 Grade |
| Highlight: | DP1.8 Gleason Spiral Bevel Gears,Helical Bevel Gear For Gear Box,DP1.8 Helical Bevel Gear |
||

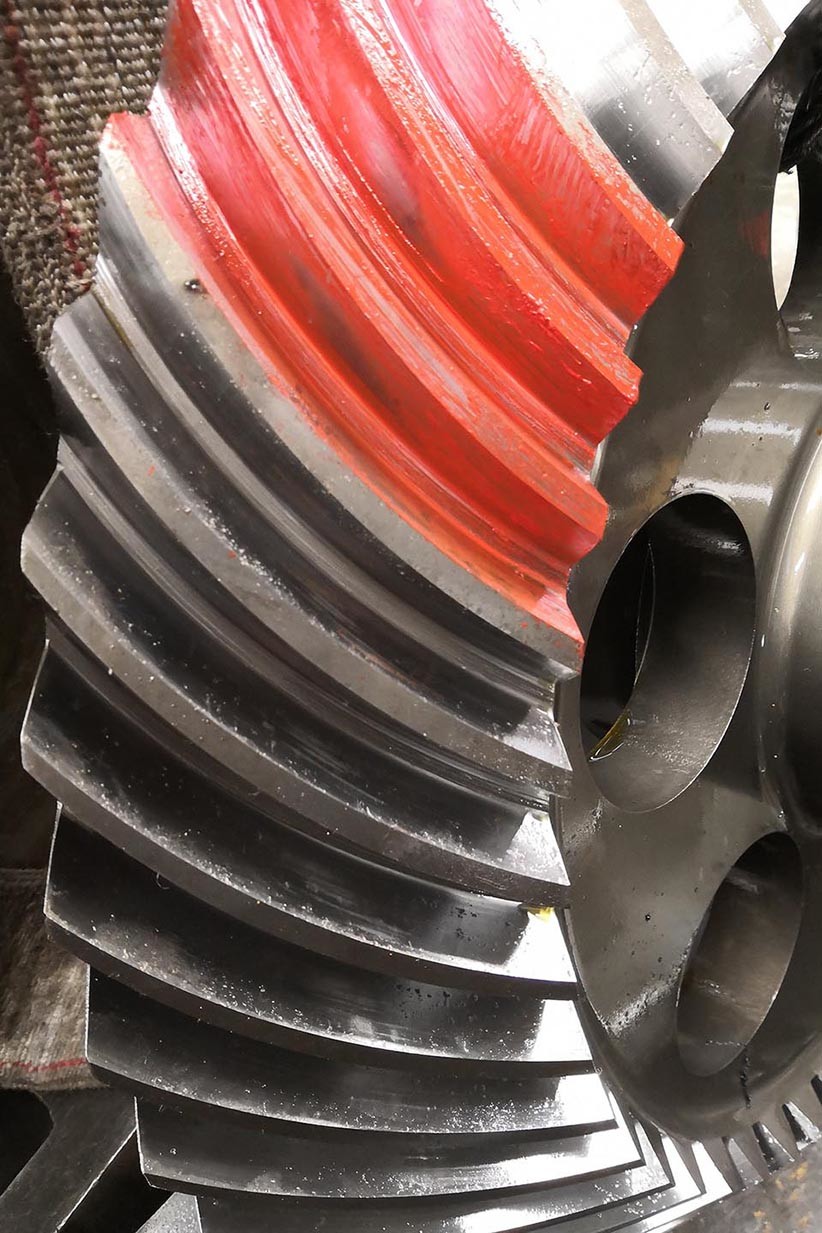

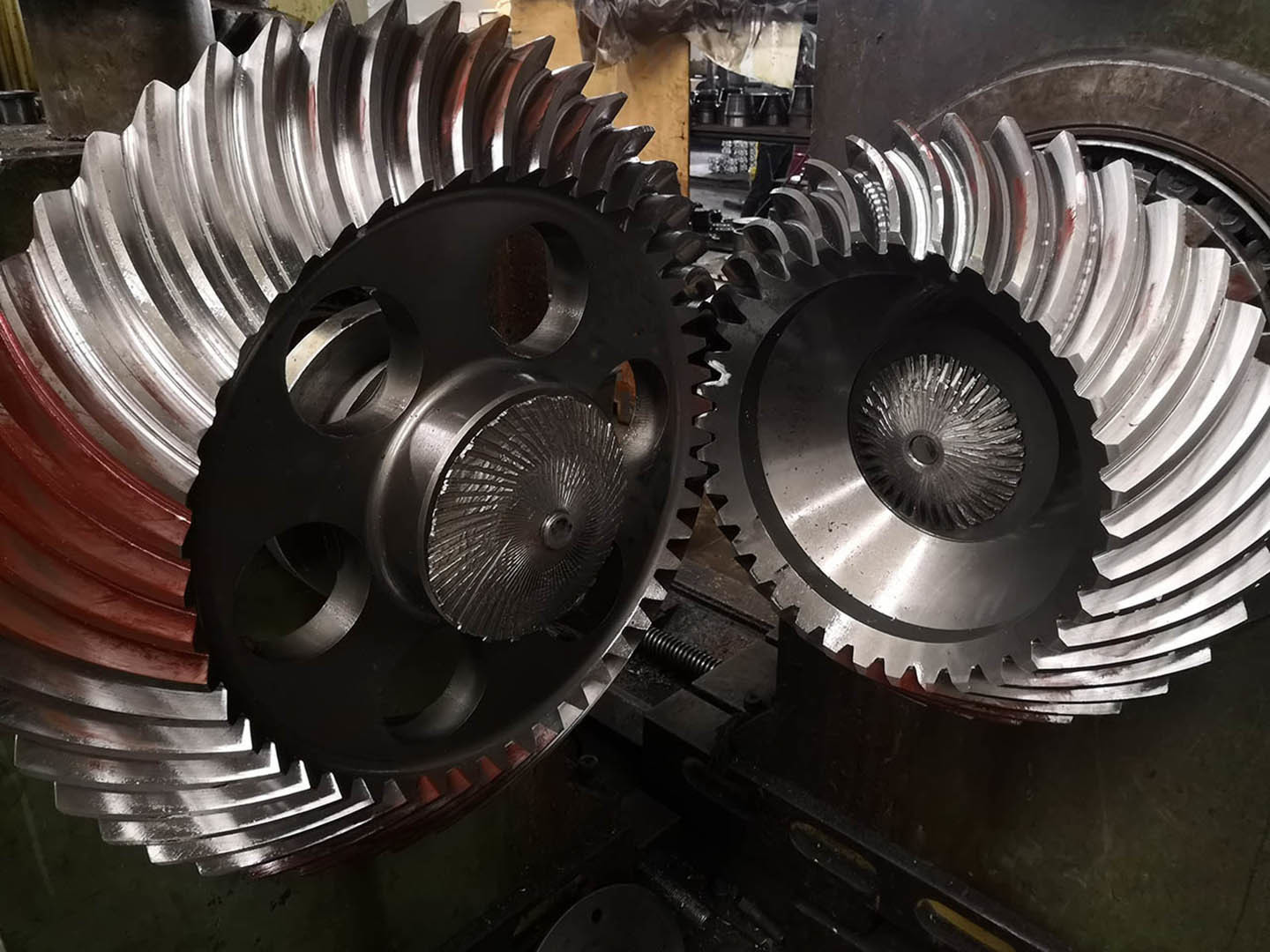

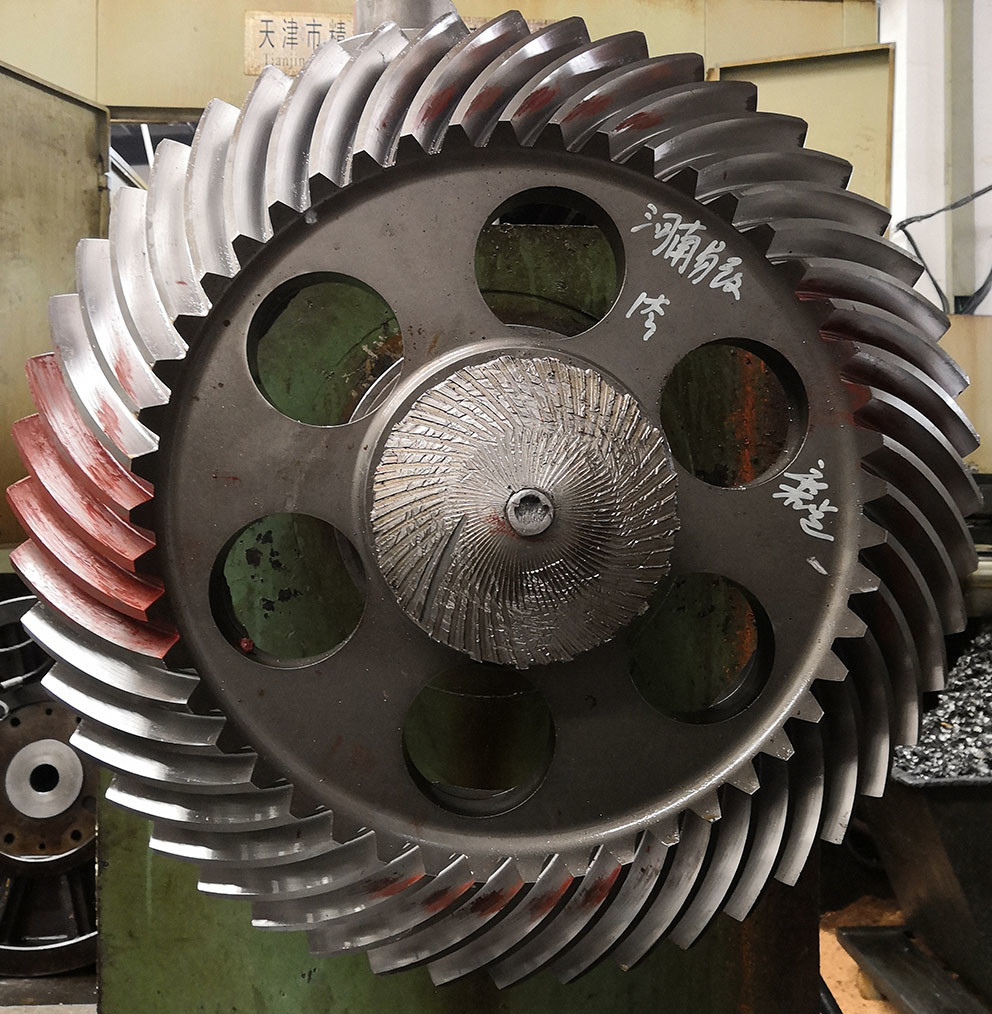

DP1.8 Gleason Type Spiral Bevel Gears Set For Gear Box-Helical Bevel Gear
1) Description of spiral bevel gear
Spiral bevel gear is a bevel gear with helical angle of oblique curved teeth.
2) Features of spiral bevel gear
a) Sprial bevel gear is complex to manufacture compared with straigt bevel gear.
b) Spiral bevel gear offers higher strength and less noise
c) Gears can with a higher reduction ratio
| Products | Spiral Bevel Gears With Internal Splines |
| Custom Made | √ |
| Profile Type | SAE 4320/ 20CrNi2MoA |
| Manufacturing | Gear Milling/Gear Grinding |
| Gear Teeth Grinding | √ |
| DP | 1.8 |
| Number of Teeth (Z) | 36 & 48T |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | ISO 6 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
