| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GG22082303 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1500/ Piece |
| Packaging Details: | Wooden Crate/Pallte |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 20 Pieces/Month |
| Material: | ZG42CrMo | Module: | 20 |
|---|---|---|---|
| Inner Diameter: | 3200 | Production Time: | 90 Days |
| Tip Diameter: | 3850mm | Widt: | 300 |
| Highlight: | Girth Gear Wheel And Pinion,Transmission Parts mill girth gear,Rolling Mill Plant Wheel And Pinion |
||

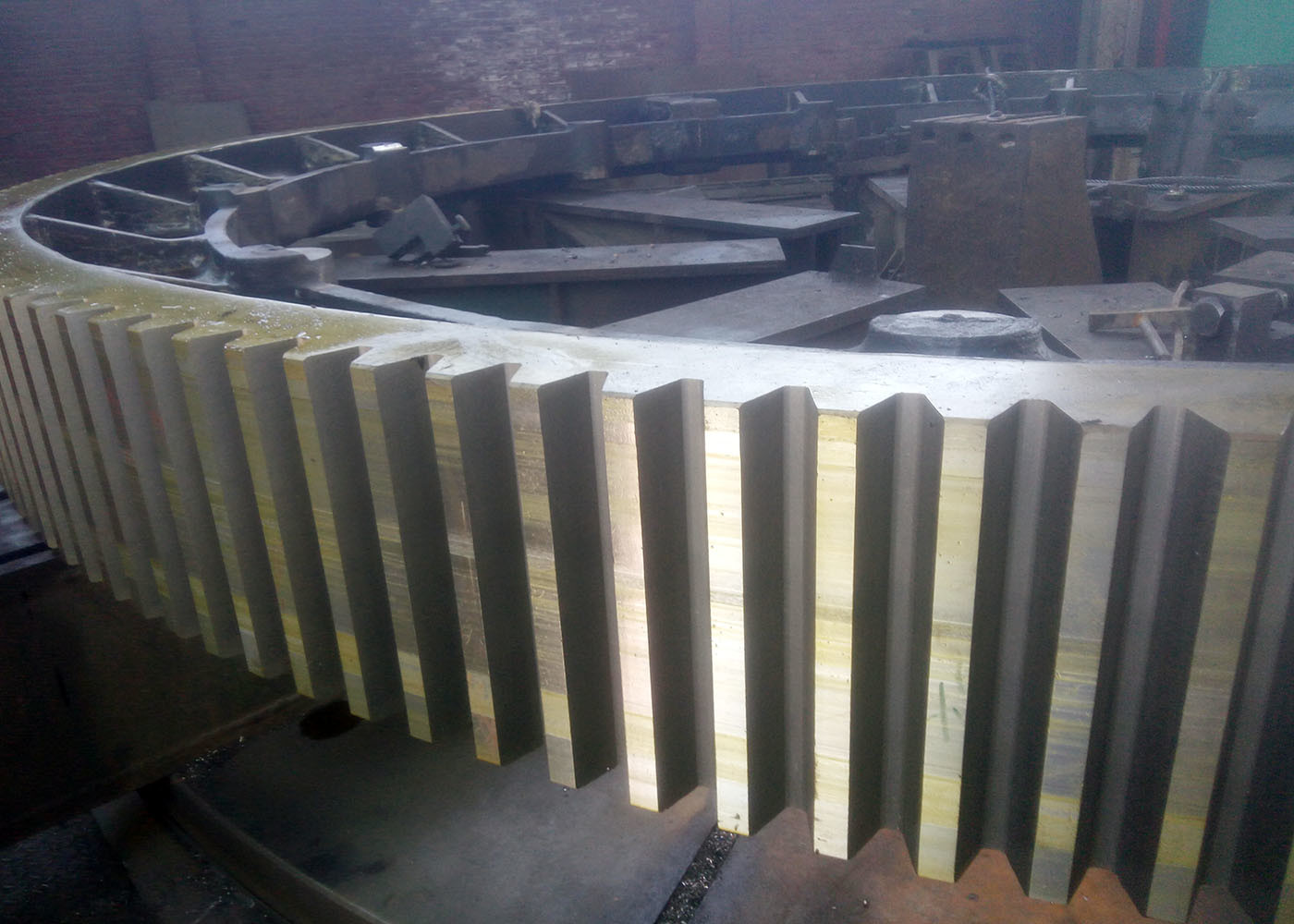

Custom Made Transmission Parts Big Gear Wheel and Pinion For Rolling Mill Plant
1) Applications of Girth Gear
Ball and grinding mills, kilns and dryers are all operated with girth gears, but the girth gear is only one part of the power train.
The classic open gear arrangement includes the main motor, an intermediate gear unit for speed reduction and the pinion,
which meshes with the girth gear.
| Products | Girth Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Manufacturing | Gear Milling/Gear Hobbing |
| Teeth Grinding | |
| Module (M) | 20 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Lead Angle | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
