| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS220080602 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $150/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 2000 Pieces/Month |
| Type: | Sleeves | Outer Diameter: | Φ76mm |
|---|---|---|---|
| Length: | 156 | Keyway Width: | 10 |
| Roughness: | Ra1.6 | Manufacturing Method: | Machining |
| Highlight: | Transmission Gears Shaft Sleeves,1045 Steel Gear Shaft Sleeves,1045 steel shaft sleeve |
||
| Attribute | Value |
|---|---|
| Type | Sleeves |
| Outer Diameter | Φ76mm |
| Length | 156mm |
| Keyway Width | 10mm |
| Roughness | Ra1.6 |
| Manufacturing Method | Machining |

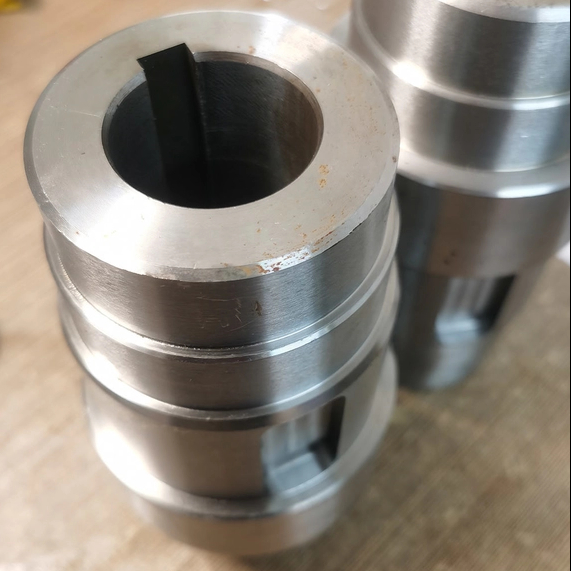

Custom Made 1045 Steel Transmission Spare Parts Shaft Sleeves For Gearboxes
A shaft sleeve is a hollow metal tube, cylindrical in shape, which is mounted over a shaft and shaft assembly to protect it in corrosive environments. Shaft sleeves are commonly found in single stage pumps, offering protection from both corrosion and erosion.
The shaft protecting sleeve is fitted to the shaft and rotates in the bearing bush. It protects the pump shaft against mechanical damage caused by shaft seals and bearing shells, as well as chemical damage caused by aggressive fluids.
| Products | Shaft Sleeves |
|---|---|
| Custom Made | ✓ |
| Profile Type | Sleeves |
| Manufacturing | Machining |
| Gear Teeth Grinding | |
| Hardness | |
| Roughness | Ra 1.6~Ra 0.8 |
| Pressure Angle (α) | |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | |
| Heat Treatment | |
| Weight | 3.2Kg |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
