| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | POM2022082803 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $3/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 1.5 | Teeth Number: | 27 |
|---|---|---|---|
| Material: | SCM 440 | Internal Type: | Spline |
| Profile: | Conical Gear | Pressure Angle: | 20° |
| High Light: | ISO 7 Cone Shaped Gears,Straight Bevel Gears With Internal Spline,ISO 7 Straight Bevel Gears |
||

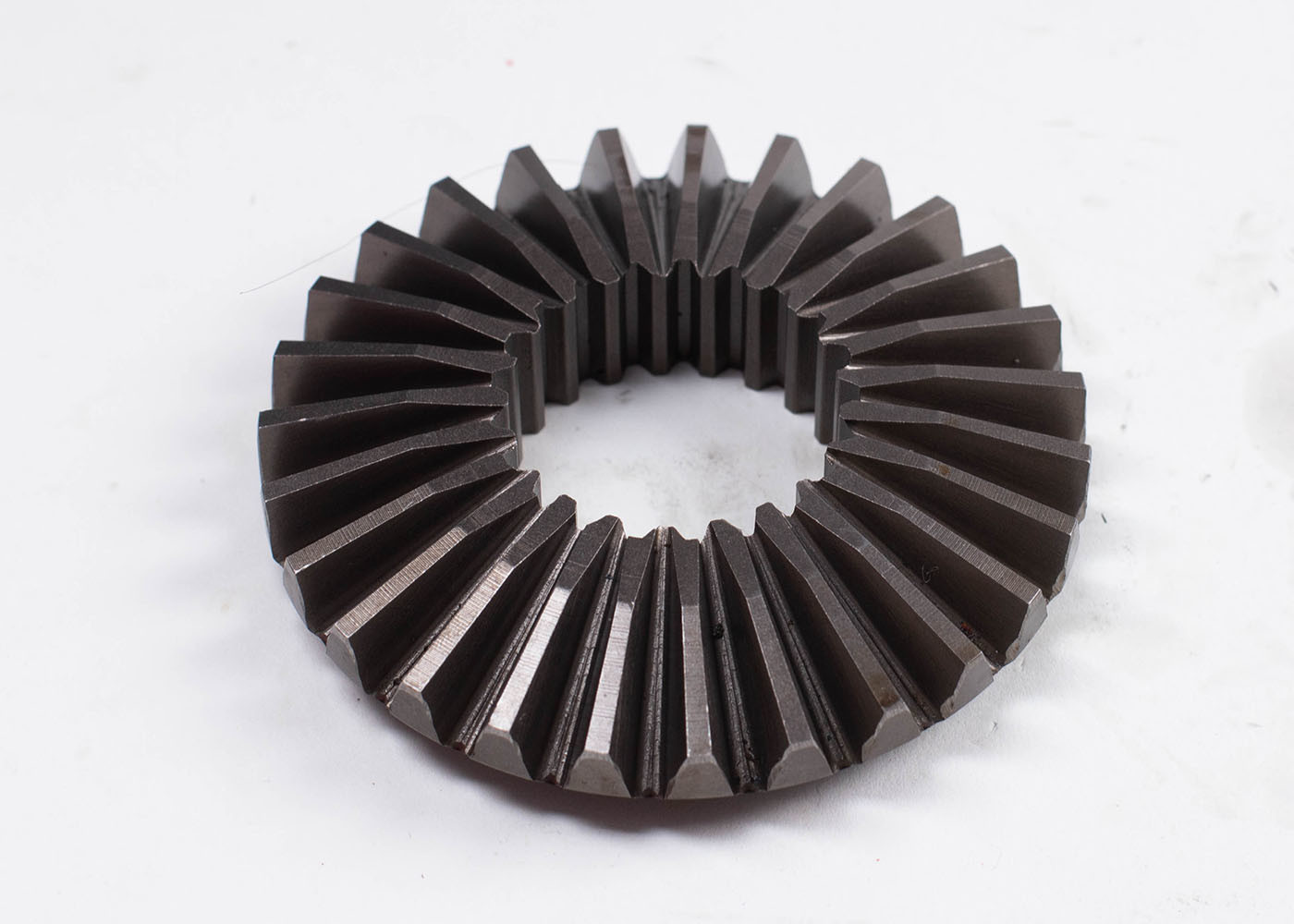

1) Description of Conical Gear
The axes of the two bevel gear shafts intersect and the tooth-bearing faces of the gears themselves are conically shaped.
Bevel gears are most often mounted on shafts that are 90 degrees apart.
Bevel gears are generally divided into 2 types, straight bevel gears and spiral bevel gears.
| Products | Bevel Gear |
| Custom Made | √ |
| Material | SCM 440 |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Number of Teeth (Z) | 27 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0 |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Induction Hardening |
| Surface Hardness | 45-50 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
