| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HG2207001 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $150/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Material: | 18CrNiMo7/ 17CrNiMo6 | Heat Treatment: | Carburizing |
|---|---|---|---|
| Teeth Number: | 52 | Module: | 8 |
| Profile Type: | Helical Gear | Width: | 80mm |
| Highlight: | Gear Grinding Helical Pinion Gear,Right Hand Helical Pinion Gear,Right Hand pinion helical gear |
||

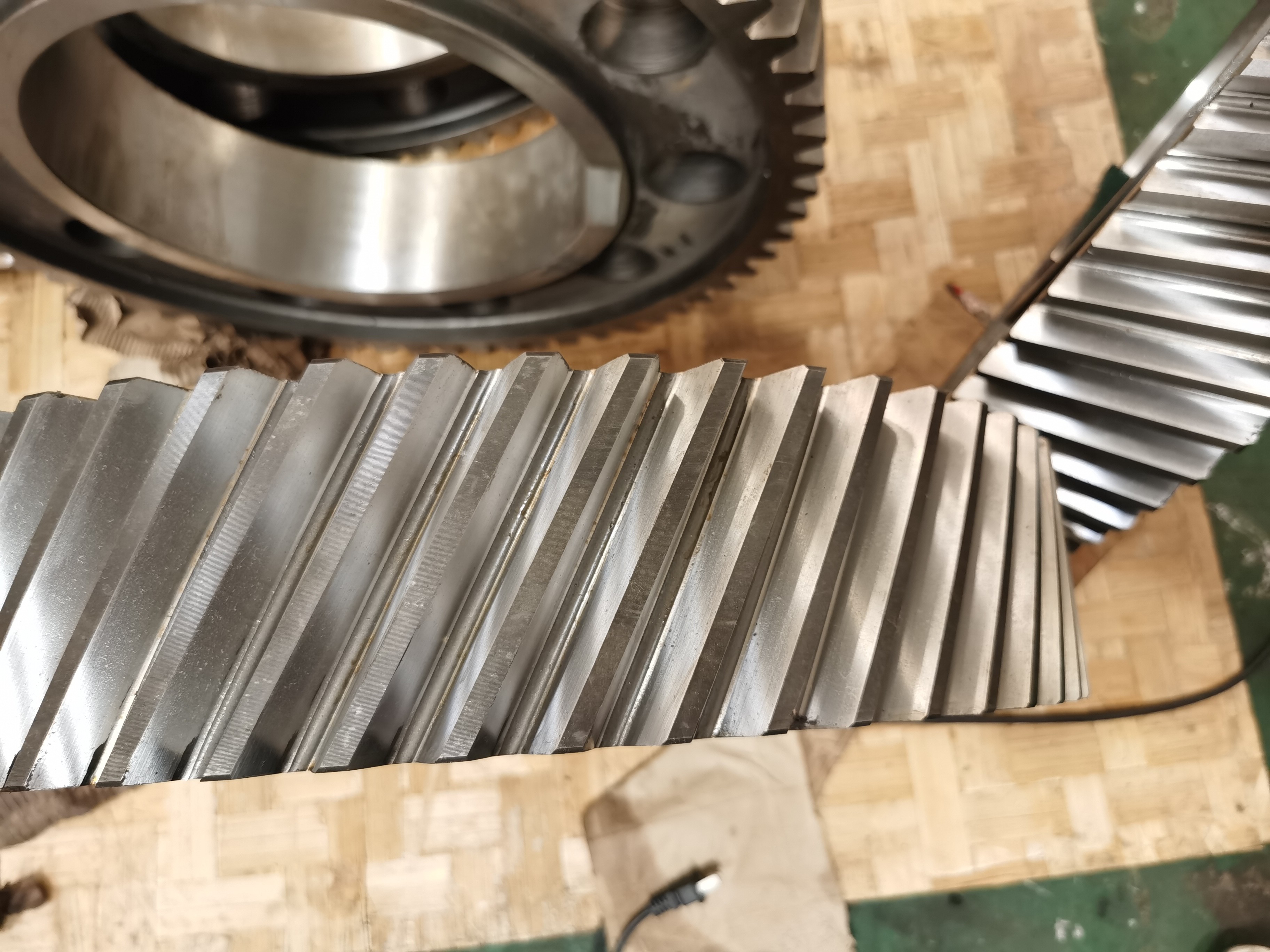

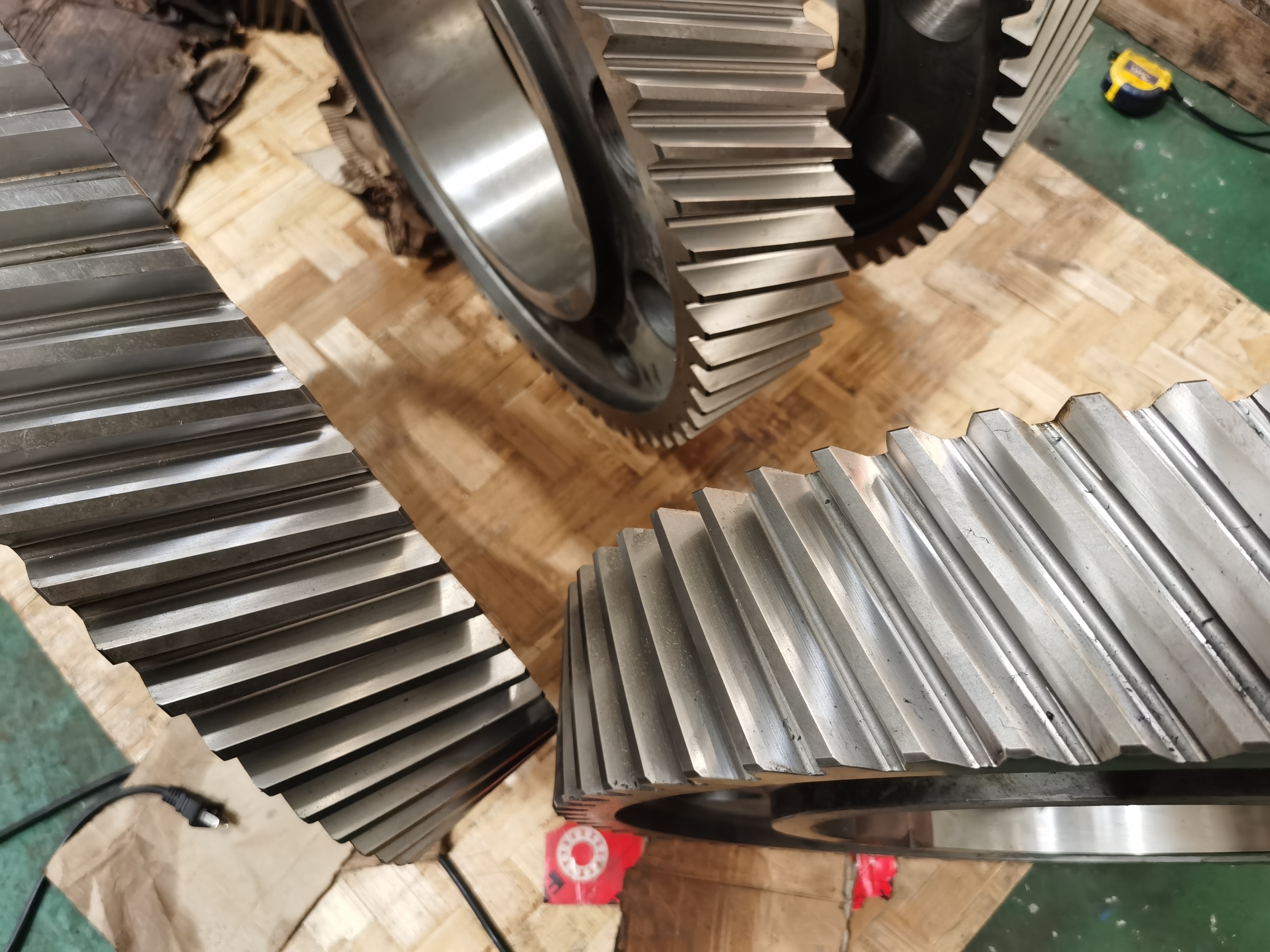

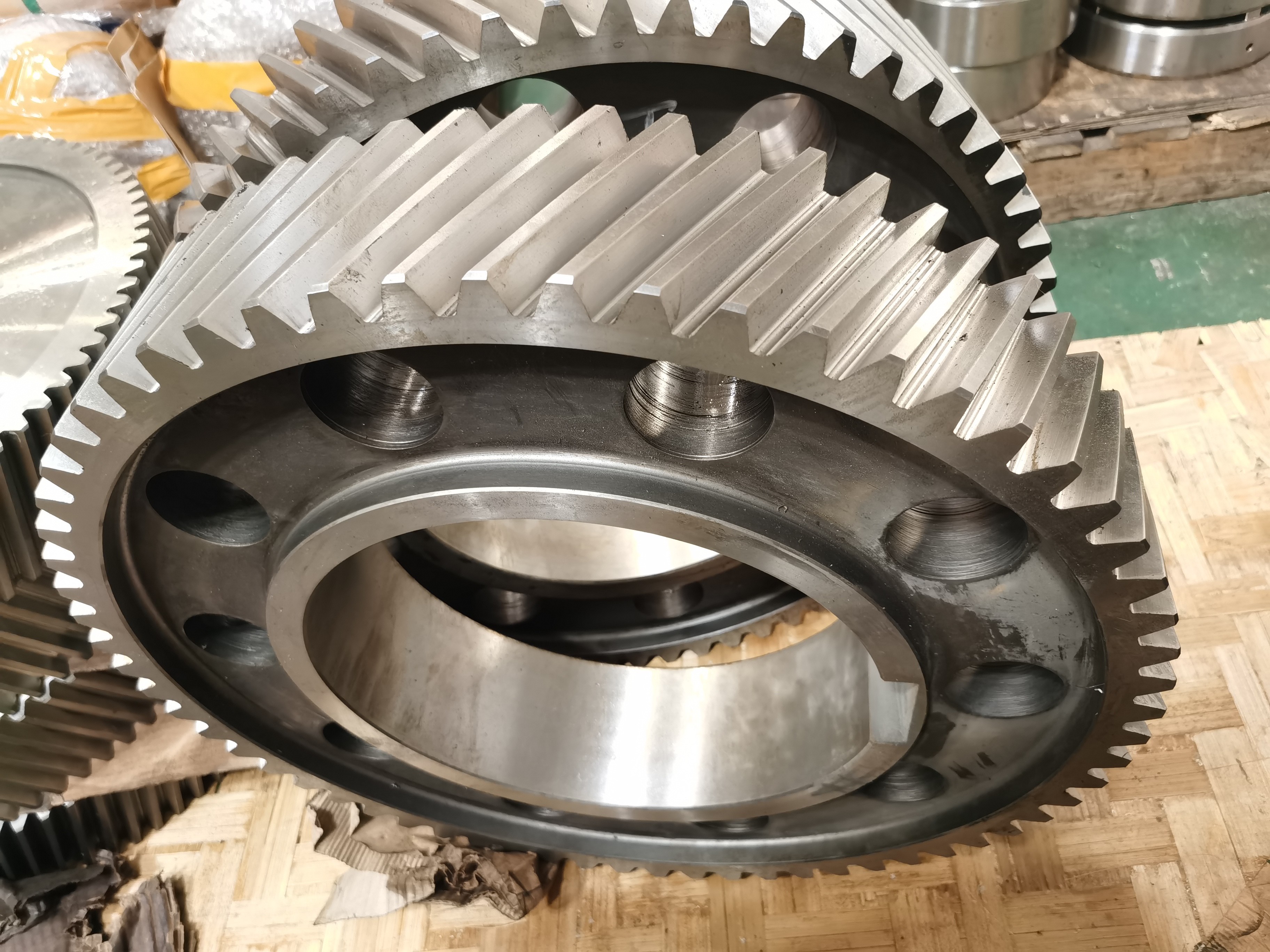

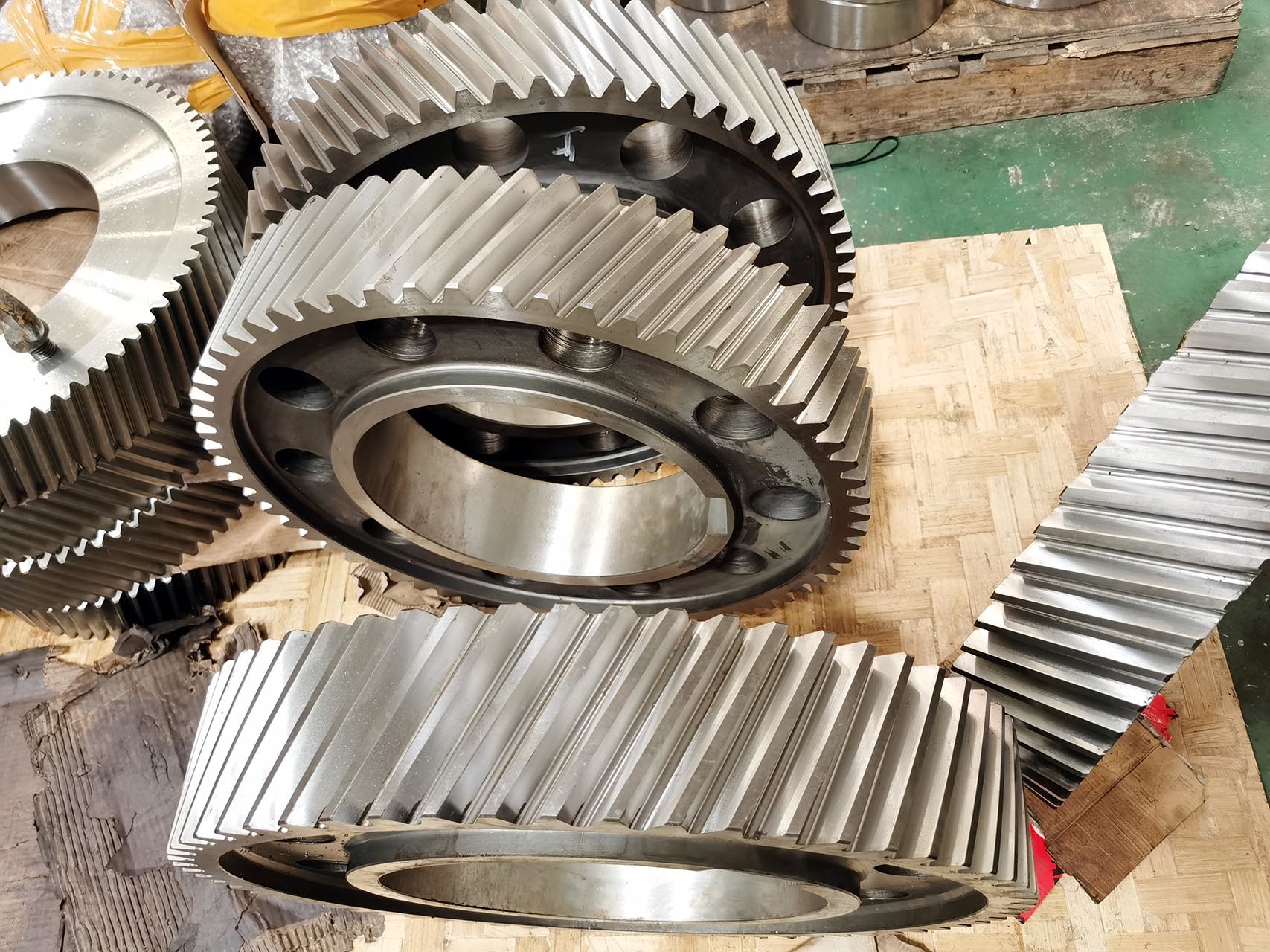

Custom Made Right-hand Gear Grinding Helcial Gears
1) Features of the Helical Gear
Helical gear with the axial thrust force caused by the helix form
2) Gear Quality of Helical Gear
The helical gear accuracy can reach ISO 5-6 Grade after gear teeth grinding.
3) Description of Helical Gear
Helcial Gear is a cylindrical shaped gear with helicoid teeth. Helcial gear can bear more laod than spur
gear and work with less noise.
| Products | Helical Gears |
| Custom Made | √ |
| Profile Type | Cylindrical Gear |
| Manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module (M) | 8 |
| Number of Teeth (Z) | 52 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
