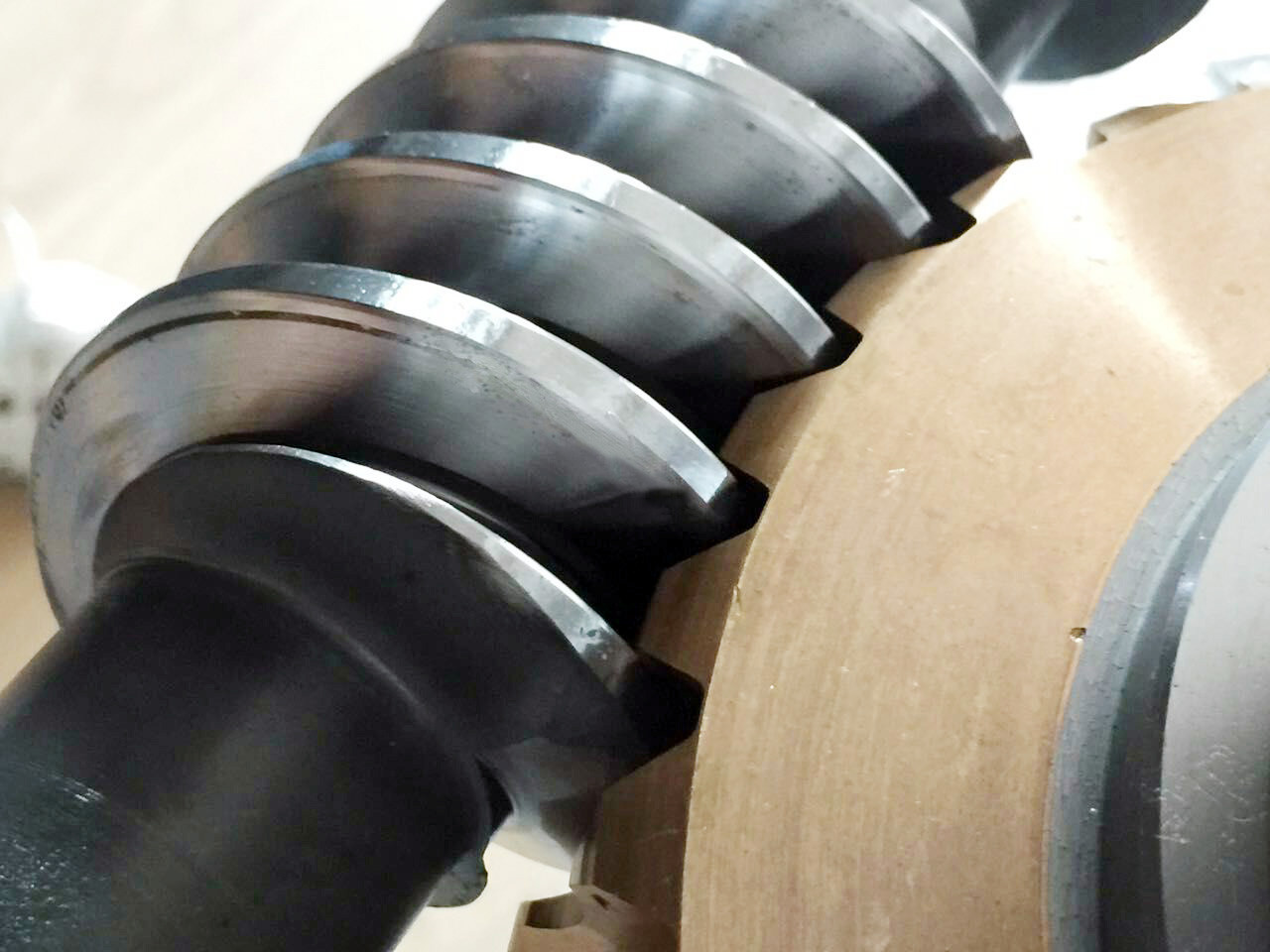

Worm Shaft And Worm Gear for Customized Pressure and Lead Angle for Smooth Meshin

Customzied Cylindrical Worm Gears & Worm Shafts Set

1) Description of Worm Gear and Worm Shaft

Worm shaft is a shank having at least one complete tooth (thread) around the pitch surface and is the driver of a worm wheel.

Worm wheel is a gear with teeth cut on an angle to be driven by a worm shaft.

The worm gear pair is used to transmit motion between two shafts which are at 90° to each other and lie on a plane.

2) Features of Worm Gear and Worm Shaft

• Provides large reduction ratios for a given center distance
• Quiet and smooth meshing action.
