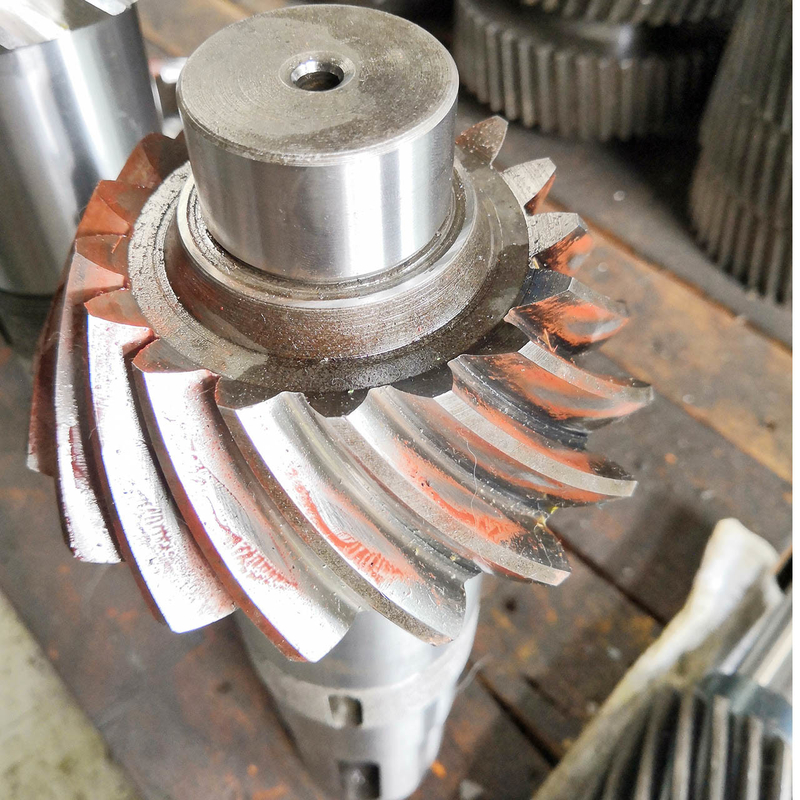

AISI 4320 Steel Transmission Spiral Bevel Gear Set for Precision Machined Components
  • AISI 4320 Steel Transmission Spiral Bevel Gear Set for Precision Machined Components
  • AISI 4320 Steel Transmission Spiral Bevel Gear Set for Precision Machined Components
  • AISI 4320 Steel Transmission Spiral Bevel Gear Set for Precision Machined Components

AISI 4320 Steel Transmission Spiral Bevel Gear Set for Precision Machined Components

Place of Origin CHINA
Brand Name YIZGEAR
Model Number SB22072701
Product Details
DP:
3.09
Module:
8.22
Gear Teeth Number:
12 & 33
Material:
AISI 4320
Heat Treatment:
Carburizing
Manufacture Processing:
Gear Grinding
Highlight:

AISI 4320 Steel Bevel Gear Set

,

Helix Bevel Gear DP3.09

,

12T 33T Steel Bevel Gear Set

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$300/ Piece
Packaging Details
Plywood Crate
Delivery Time
60 days
Payment Terms
L/C, T/T
Supply Ability
500 Set/Month
Product Description

DP3.09 12T & 33T AISI 4320 Steel Spiral Bevel Gear Set-Helix Bevel Gear

1) Applications of spiral bevel gear

High speed train, oil drilling system, automobiles

2) Feature of spiral bevel gear

Spiral bevel gear with a helical angle of spiral teeth, it can offers higher strength and less noise.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

AISI 4320 Steel Transmission Spiral Bevel Gear Set for Precision Machined Components 0

Production Process

AISI 4320 Steel Transmission Spiral Bevel Gear Set for Precision Machined Components 1



Tags:

Spiral Bevel Gears,

Helical Transmission Gears,

Bevel Spiral Gear
