| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG22072201 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Material: | 42CrMo/AISI 4140 | Heat Treatment: | Induction Hardening |
|---|---|---|---|
| Hardness: | Gear 50-55 HRC Pinion 58-62 HRC | Gear Quality: | ISO 8-9 Grade |
| Profile Type: | Straight Bevel Gear | Quality Grade: | ISO 8-9 Grade |
| Highlight: | Coniflex Bevel Gear With Straight Teeth,AISI 4140 Coniflex Bevel Gear,ISO 8-9 Grade Coniflex Bevel Gear |
||

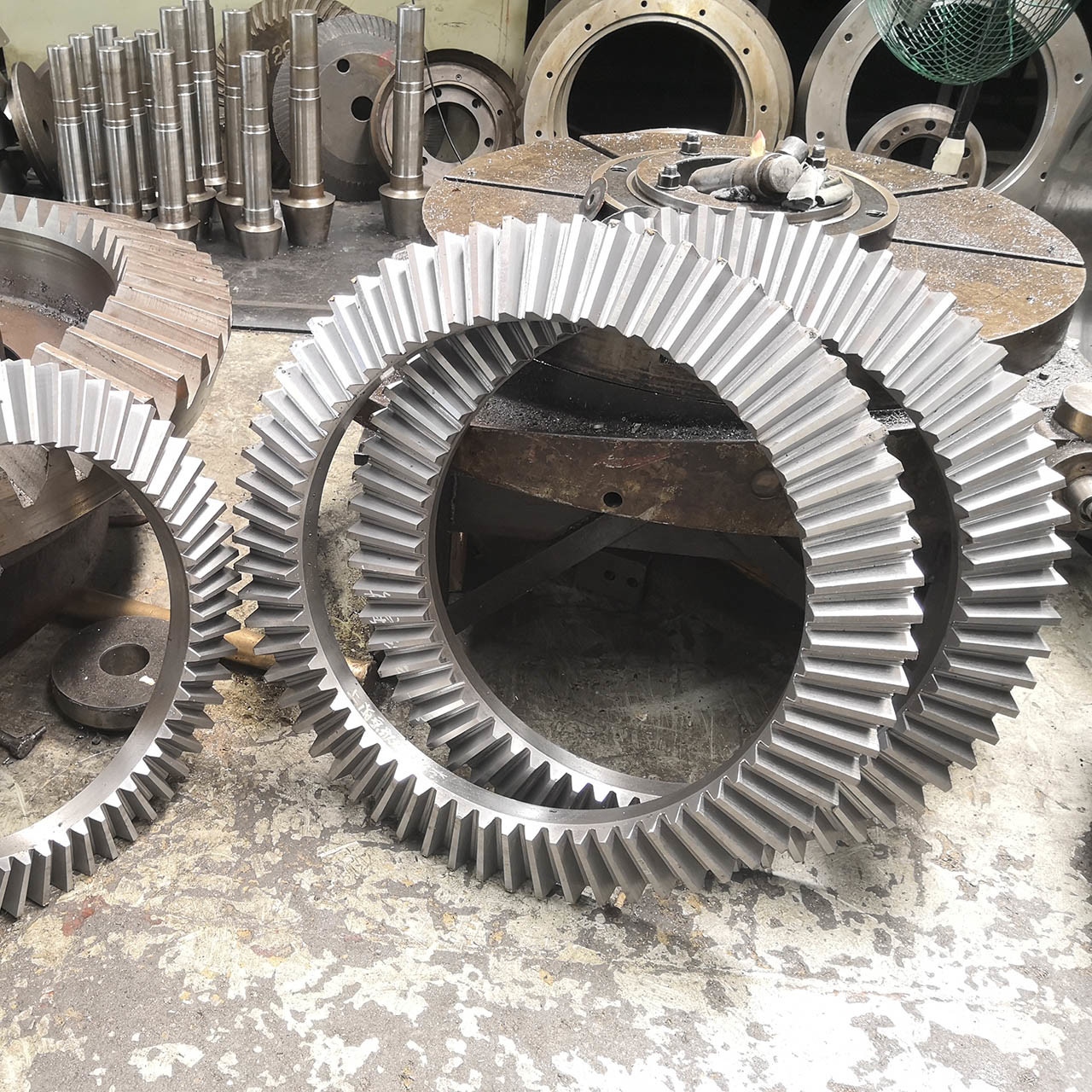

Customized 90 Degree Confiflex Gear of Cone Crusher-Straight Bevel Gears
1) Description of straight bevel gear
Straight bevel gear is a gearin which teeth have tapered conical elements taht have the same direction as
the pitch cone base line.
2) Features of the straight bevel gear
The straight bevel gear is both the simplest to prdocution and the most widely used in the bevel gear types.
3) Materail of straight bevel gear
The material can be carbone steel 45#, alloy steel 20CrNiMo or 40CrNiMoA steel for straight bevel produciton.
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 12 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Induction Hardened/Carburizing |
| Surface Hardness | Pinion 58-62 HRC/Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
|
