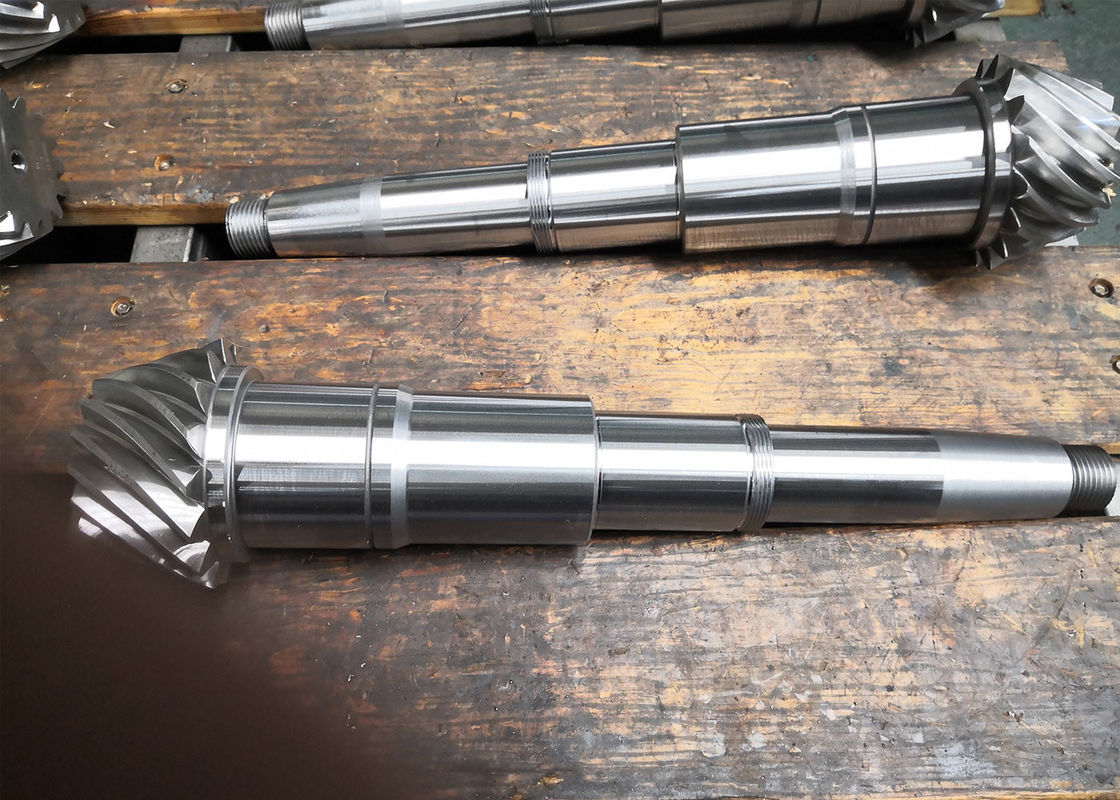

High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length
  • High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length
  • High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length
  • High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length
  • High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length
  • High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length
High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length

High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length

Place of Origin CHINA
Brand Name YIZGEAR
Model Number SB2207003
Product Details
Length:
503mm
Shaft Angle:
90°
Module:
6.5
Outer Diameter:
119.07
Direction:
Right-Hand
Hardness:
58-62 HRC
Highlight:

Right Hand Spiral Bevel Gear Shaft

,

spiral gear shaft 6.5 Module

,

6.5 Module Spiral Bevel Gear Shaft

Payment & Shipping Terms
Minimum Order Quantity
2 Sets
Price
$70/ Piece
Packaging Details
Plywood Crate
Delivery Time
62 Days
Payment Terms
T/T, L/C
Supply Ability
500 Sets/Month
Product Description

High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length

1) Description of spiral bevel gear Shaft

This spiral bevel gear is 6.5M 16T with total length 503mm

The roughness of the shaft is Ra 0.8

The tip diameter is Φ119.07

2) Manufacturing of Spiral Bevel Gear

Matrial is Qenching and tempering 260-280 HB

Carburizing heat treatment 58-62 HRC

Hardened layer depth 1.4-1.8mm

Core Hardness 35-42 HRC

Gear Milling and gear grinding

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length 0

Production Process

High-Precision Right Hand Spiral Bevel Gear Shaft 6.5 Module 503mm Length 1
