| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG220804002 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Helix Angle: | 0 | Working Angle: | 90° |
|---|---|---|---|
| Brand: | OEM | Gear Quality: | ISO 8-9 Grade |
| Tip Diameter: | 630mm | Quality Grade: | ISO 8-9 Grade |
| Highlight: | 90 Degree coniflex bevel gear,Straight Bevel Gears For Steel Plant,Customized Coniflex Straight Bevel Gears |
||

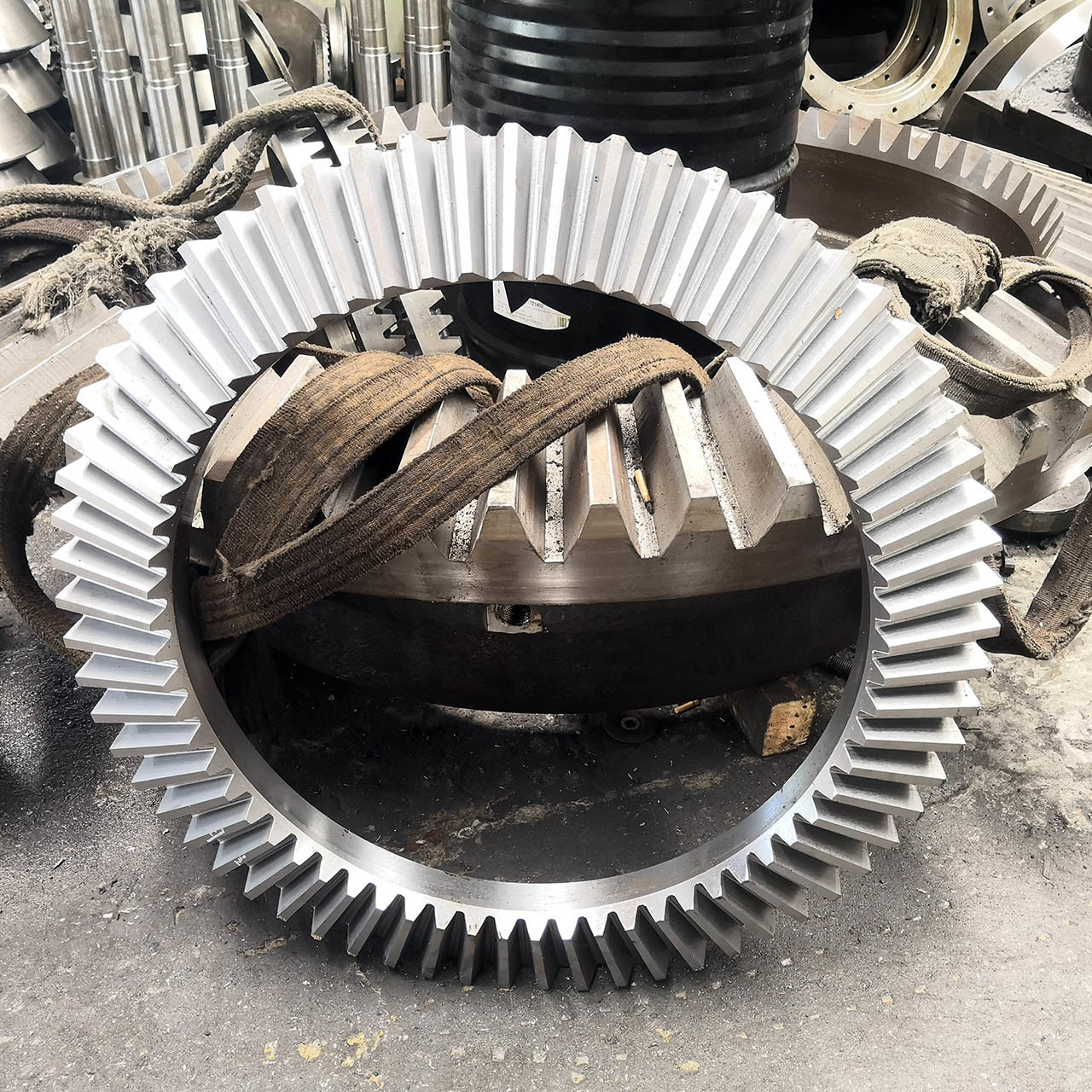

Customized 90 Degree Confiflex Gear Straight Bevel Gear For Steel Plant
1) Applications of straight bevel gear
a) Bevel gears are used in Differential drives.
b) bevel gears are used as main mechanism for a hand drill.
2) Features of straight bevel gear
a) Bevel gear makes it possible to chagne the operating angle
b) Differing of the number of teeth (effectively diameter) on each wheel allows mechanical advantage to be changed.
By increasing or decreasing the ratio of teeth between the drive and driven wheels one may change the ratio of
rotations between the two, meaning that the rotational and torque of the second wheel can be changed in relation
to the first, with speed increasing and torque decreasing, or speed decreasing and torque increasing.
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 10 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Carburizing/ Induction Hardending |
| Surface Hardness | Pinion 58-62 HRC/Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
|
