| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG220804004 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Module: | 16 | Pitch: | 5.09 |
|---|---|---|---|
| Inner Diameter: | 320 | Gear Quality: | ISO 8-9 Grade |
| Tip Diameter: | 820mm | Brand: | OEM |
| Highlight: | Mining Equipment Conical Gear,Straight Crow Gear 16 Module,Mining Equipment Straight Crow Gear |
||

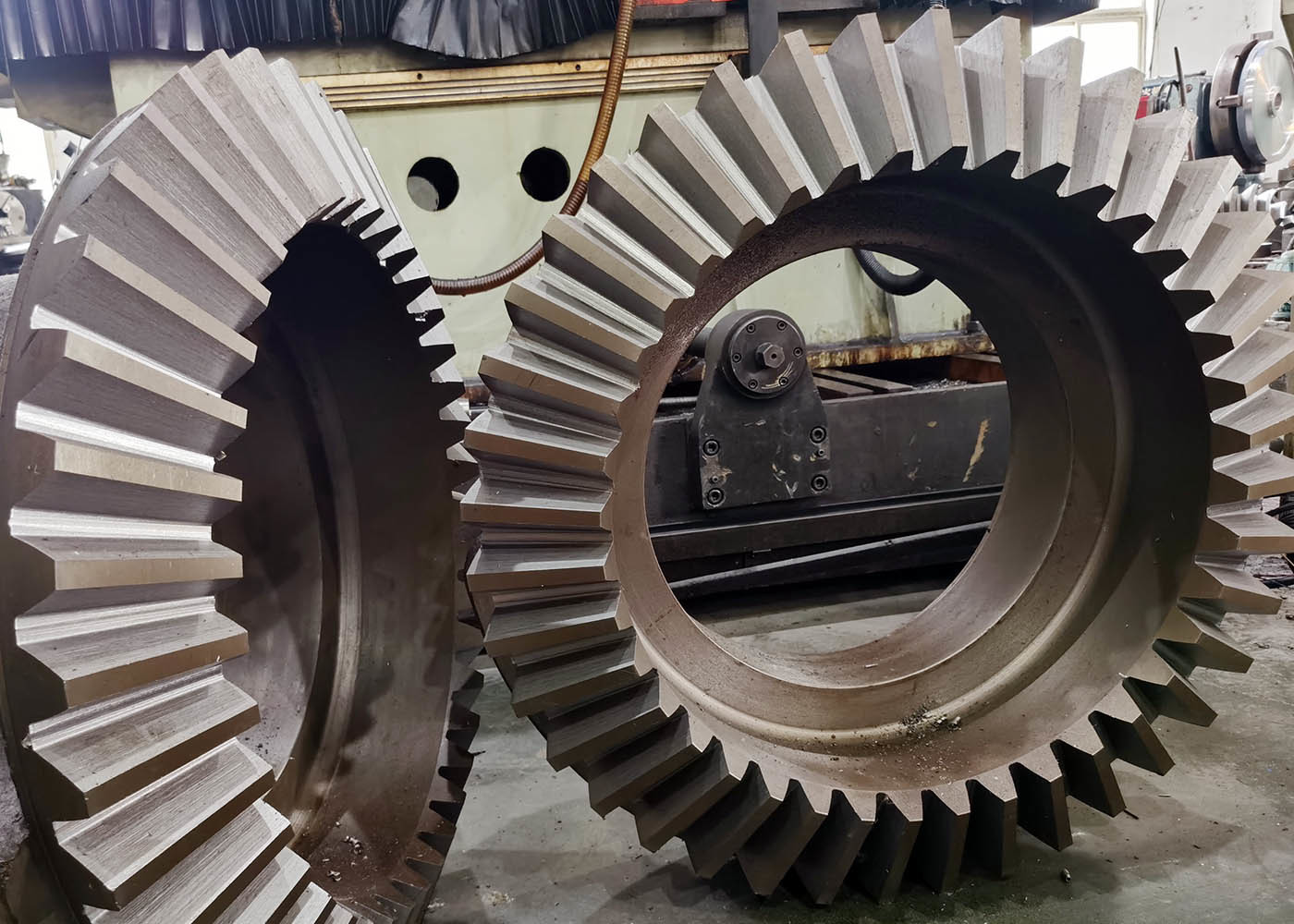

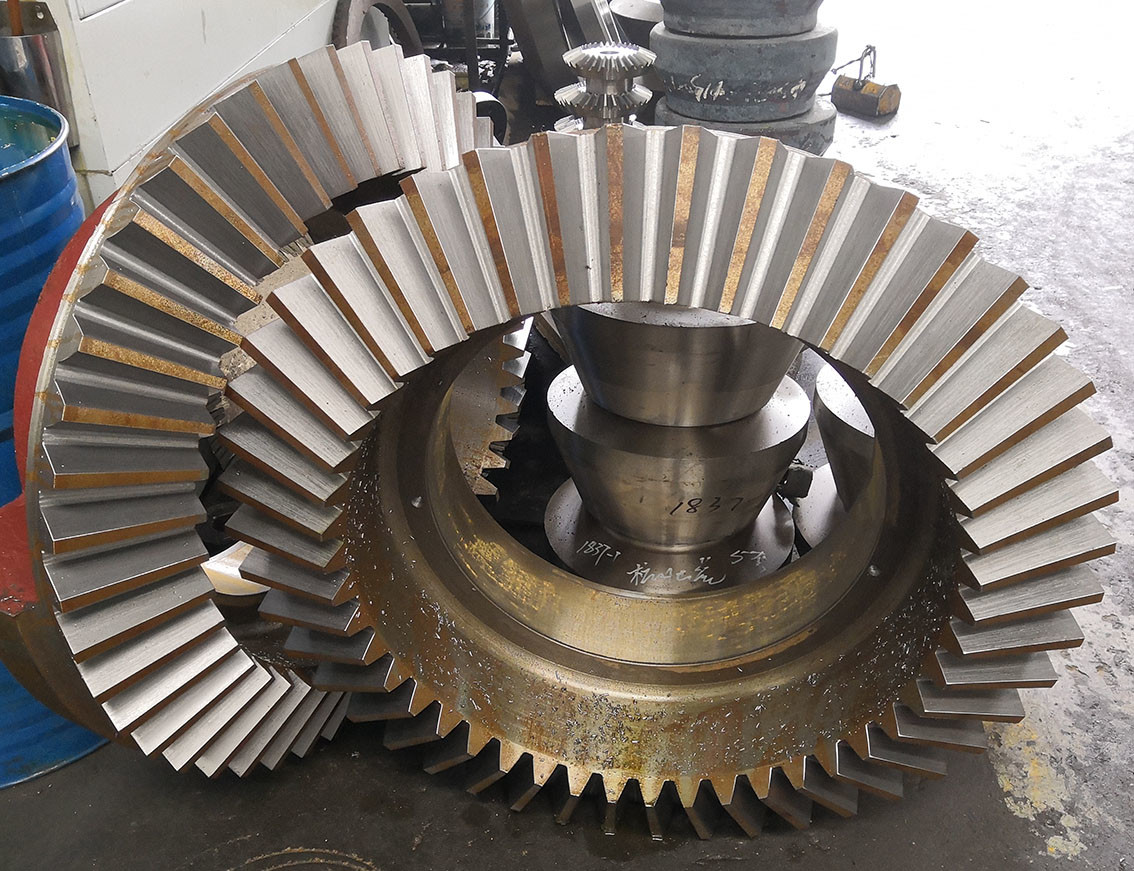

Straight Crow Gear of Mining Equipment-Conical Gear-Straight Bevel Gear
1) Description of the straight bevel gear
Stright bevel gear with gear teeth have tapered conical elements that have the same direction as teh pitch cone line.
Bevel gears transfer the energy from linear to vertical power, making it very useful in machines widely used in mechanical settings.
2) Feature of straight bevel gear
a) Straight bevel gear is easy to manufacture and most widely used compared with other type bevel gears.
b) Straight bevel gear makes it possible to change the operating angle.
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 14 |
| Number of Teeth (Z) | 26/60 |
| Pressure Angle (α) | 20° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Carburizing/ Induction Hardending |
| Surface Hardness | Pinion 58-62 HRC/Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
