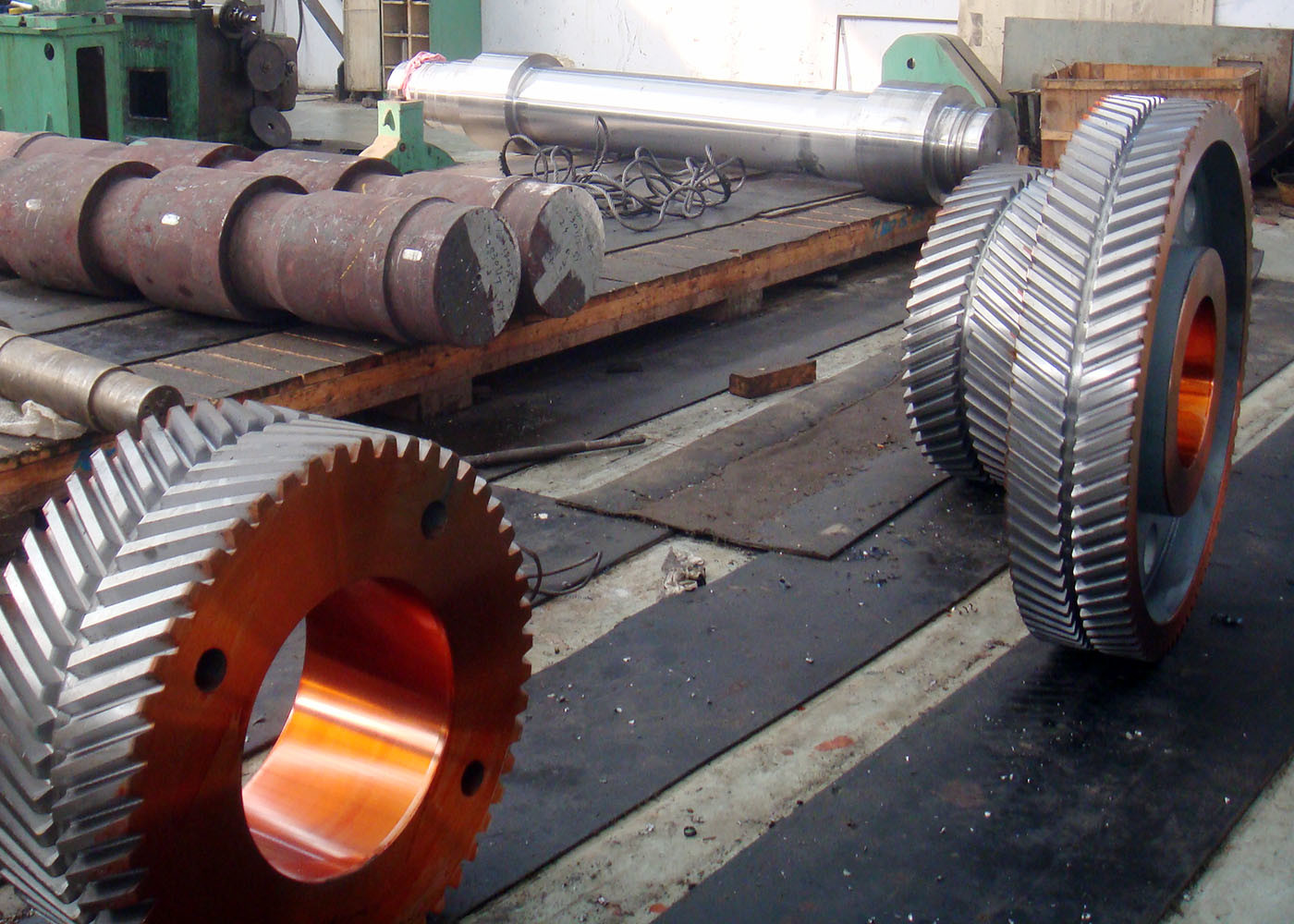

18CrNiMo7 Steel Double Helical Gear For High-Efficiency Applications
  • 18CrNiMo7 Steel Double Helical Gear For High-Efficiency Applications
18CrNiMo7 Steel Double Helical Gear For High-Efficiency Applications

18CrNiMo7 Steel Double Helical Gear For High-Efficiency Applications

Place of Origin CHINA
Brand Name YIZGEAR
Model Number DB220804003
Product Details
Module:
4
Gear Profile Type:
Double Helical Gear
Brand:
Quenching & Tempering
Hardness:
260-300 HB
Pitch:
1.273
Tooth Accuracy:
ISO 8-9
Highlight:

18CrNiMo7 Steel herringbone helical gear

,

18CrNiMo7 Helical And Herringbone Gears

,

Steel Plant herringbone helical gear

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
$1000/ Piece
Packaging Details
Plywood Crate
Delivery Time
75 Days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
100 Pieces/Month
Product Description

Custom-Made18CrNiMo7 Steel Doubel Helical Gear For Steel Plant

1) Applications of double helical gear

Transmission components, Automobile, Speed reducers.

2) Features of doubel helcial gear

  • With higher strength compared with a spur gear
  • More effective in reducing noise and vibration when compared with a spur gear.



Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Cylindrical Gear
Manufacturing Process Gear Milling & Gear Teeth Hobbing
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Lead Angle 20°
Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 260-300HB
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

18CrNiMo7 Steel Double Helical Gear For High-Efficiency Applications 0

Manufacturing Process

18CrNiMo7 Steel Double Helical Gear For High-Efficiency Applications 1
