Worm Shaft And Worm Gear
>
|
| Place of Origin | CHINA |
| Brand Name | YIZGEAR |
| Model Number | WG22080901 |

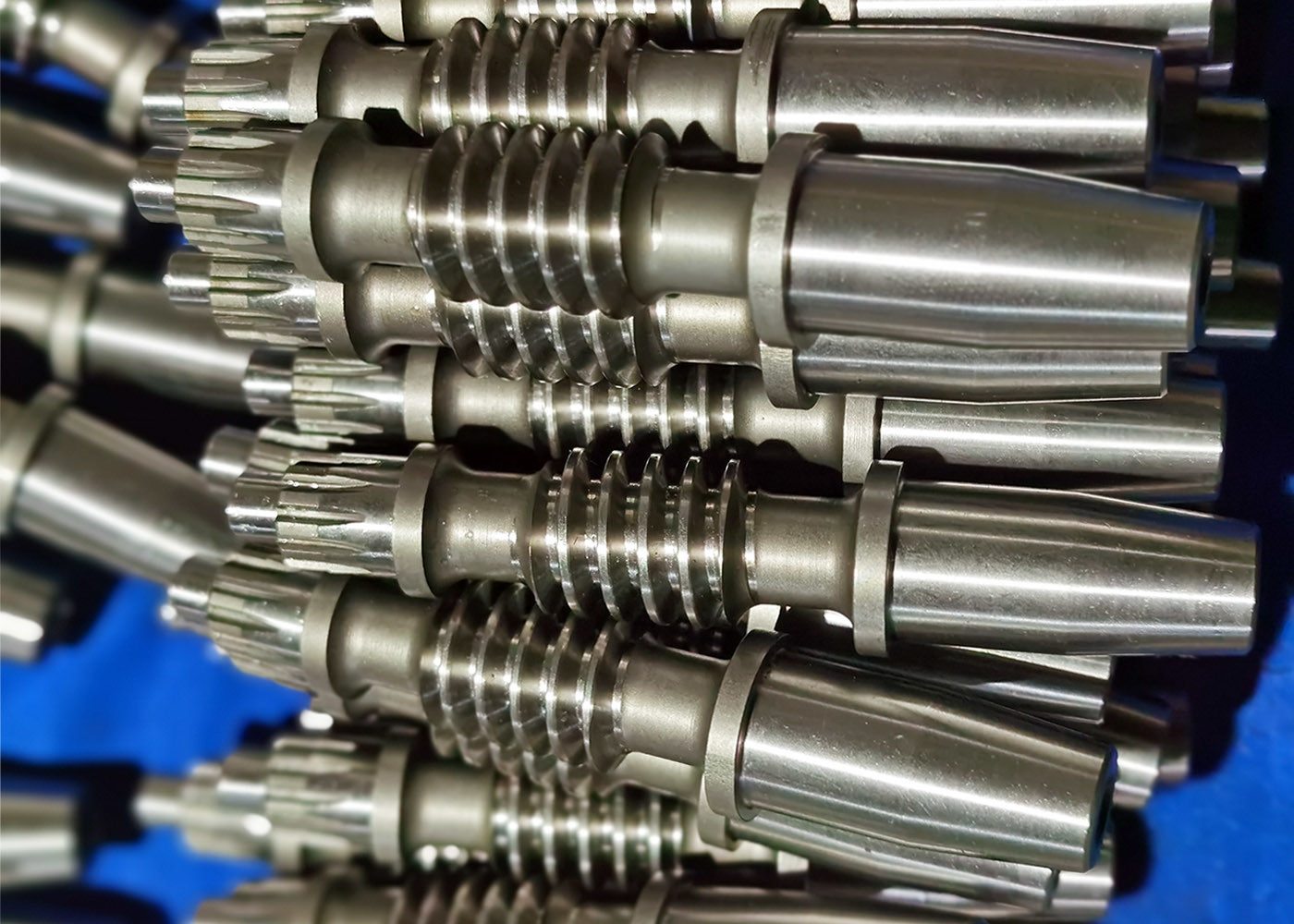

Customzied Cylindrical Worm Gears & Worm Shafts Set
A worm gear is a gear consisting of a shaft with a spiral thread that engages with and drives a toothed wheel.
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Worm Gear |
| Manufacturing Process | Gear Milling & Gear Teeth Grinding |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing/Cement Quenching |
| Surface Hardness | 58-62HRC |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
