| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS2022082106 |
| Minimum Order Quantity: | 5 Pcs |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| DP: | 12.7 | Gear Type: | Cylindrical Gear |
|---|---|---|---|
| Helix Angle: | 15° | Material: | 20CrMnTi |
| Pressure Angle: | 20° | Inner Diameter: | 85mm |
| Highlight: | 20CrMnTi Steel Right Hand Helix Gear,2 Module Screw Gear,Right Hand Helix Gear 2 Module |
||

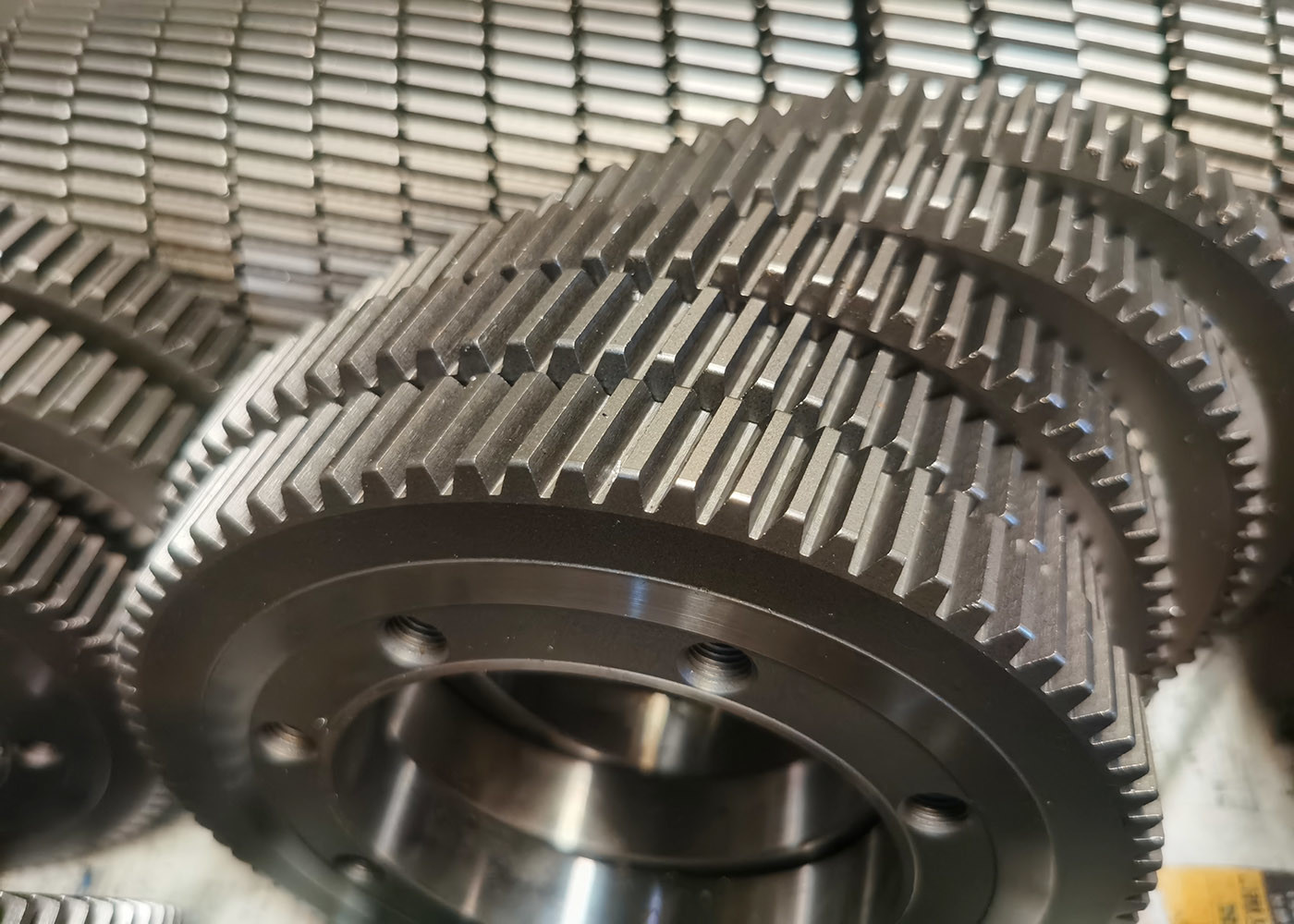

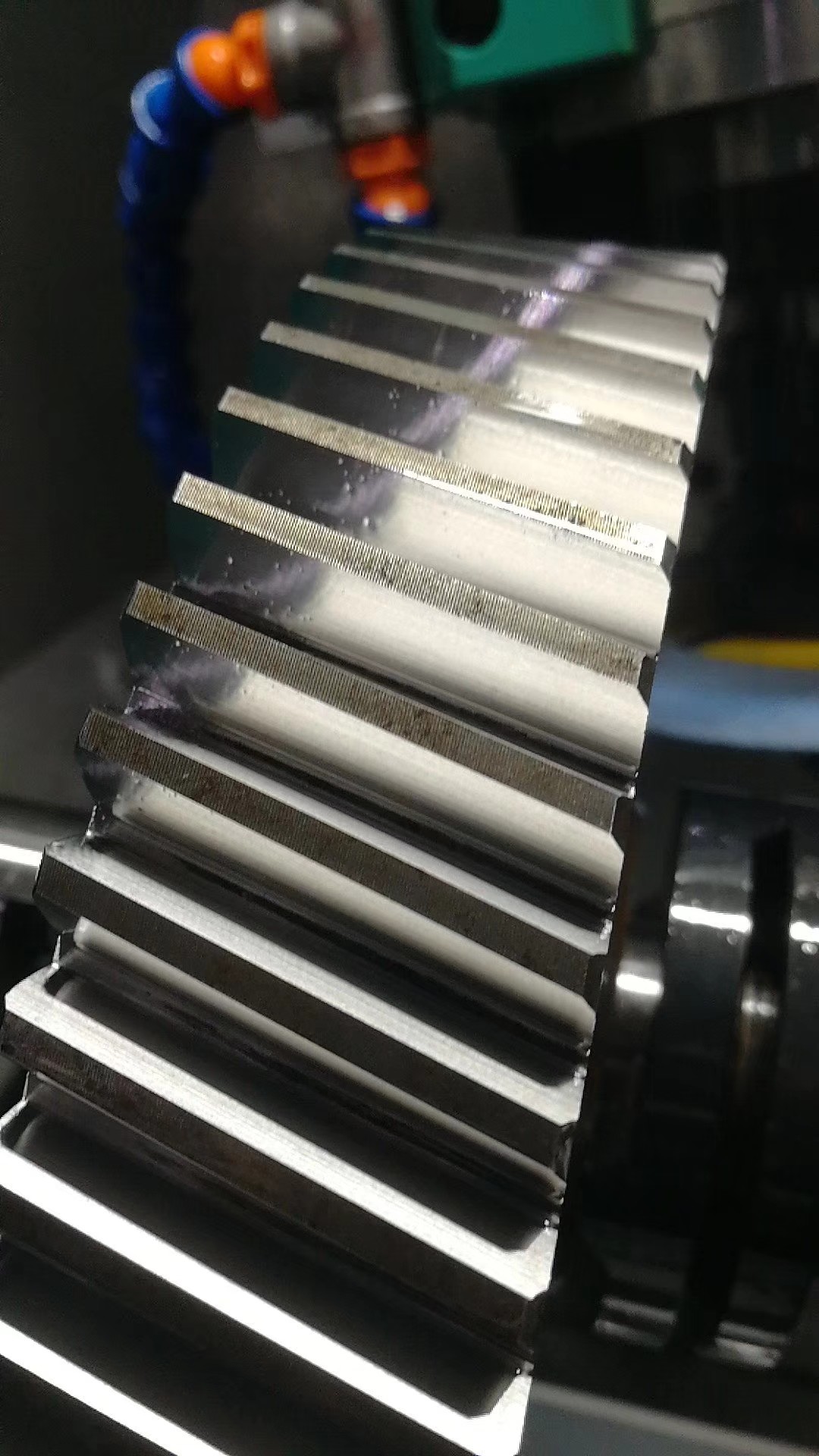

2 Module 20CrMnTi Steel Right Hand Gear Grinding Screwl Gear For Speed Reducers
1) Description of Helical gears
Helical gears contain special teeth that are placed at a particular angle to the shaft.
This leads to more than one tooth being in touch during the function, making the gear capable of tolerating more load.
This configuration also allows helical gears to perform quieter and smoother than spur gears because of the load sharing between teeth.
| Products | Helical Gears |
| Custom Made | √ |
| Material | 20CrMnTi |
| Manufacturing | Gear Hobbing |
| Teeth Grinding | √ |
| Module (M) | 2 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Lead Angle | 20° |
| Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
