| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GG22082304 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1500/ Piece |
| Packaging Details: | Wooden Crate/Pallte |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 20 Pieces/Month |
| Material: | Casting Stell | Hardness: | 260-280 HB |
|---|---|---|---|
| Heat Treatment: | Quenching & Tempering | Width: | 250mm |
| Packing: | Wooden Crate/ Pallet | Outer Diameter: | 3200 |
| Pressure Angle: | 20° | ||
| Highlight: | AISI 4140 Heavy Duty Girth Gears,AISI 4140 Heavy Duty Girth Gears,Gear Hobbing Girth Gear And Pinion |
||

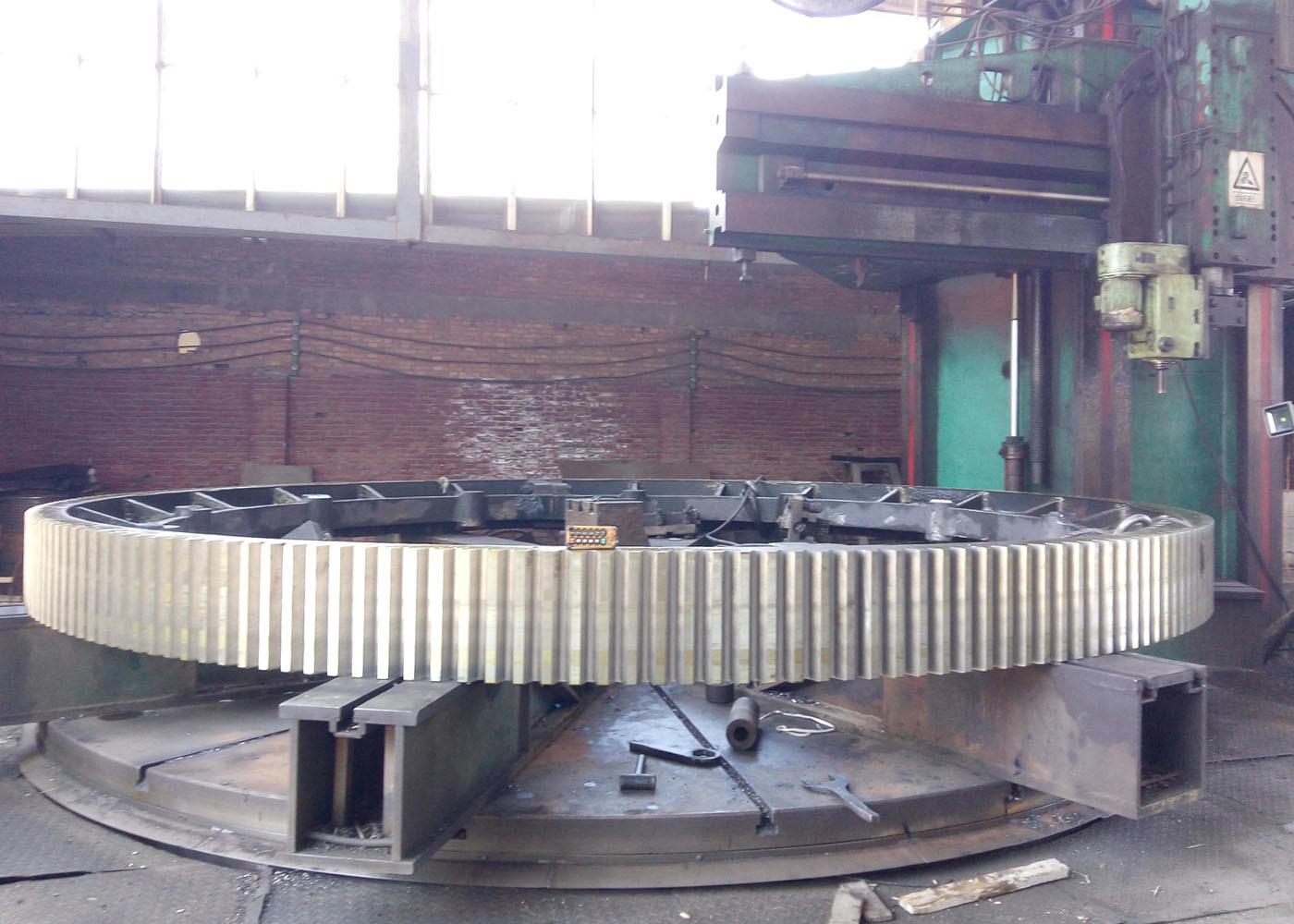

Custom Made Casting Steel Large Size Gear Wheel Heavy-Duty Girth Gears
1) Description of Girth Gear
As a principle structural and mechanical component, the girth gear on a rotary drum has widespread effects when allowed to wear.
As a result, gear wear should be addressed immediately, typically through replacement,
though in cases of onset wear, simple adjustments may prevent further damage.
2) Heat Treatment of Girth Gear
Gears are flame or induction hardened to achieve a desirable hardness.
Hardness of the girth and pinion gears plays an essential role in maximizing equipment life.
3) Material of Girth Gear
Castings Steel/ ZG 42CrMo (AISI 4140) or ZG40CrNiMo (AISI 4340)
| Products | Girth Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Manufacturing | Gear Milling/Gear Hobbing |
| Teeth Grinding | |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Lead Angle | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
