| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GG22082306 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1500/ Piece |
| Packaging Details: | Wooden Crate/Pallte |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 20 Pieces/Month |
| Material: | ZG42CrNiMo | Hardness: | 36-42 HRC |
|---|---|---|---|
| Heat Treatment: | Quenching & Tempering | Type: | Segmented |
| Packing: | Wooden Crate/ Pallet | Tip Diameter: | 6800mm |
| Width: | 280mm | ||
| Highlight: | Segmented Kiln Girth Gear,Segmented cement mill girth gear,Casting Steel Kiln Girth Gear |
||

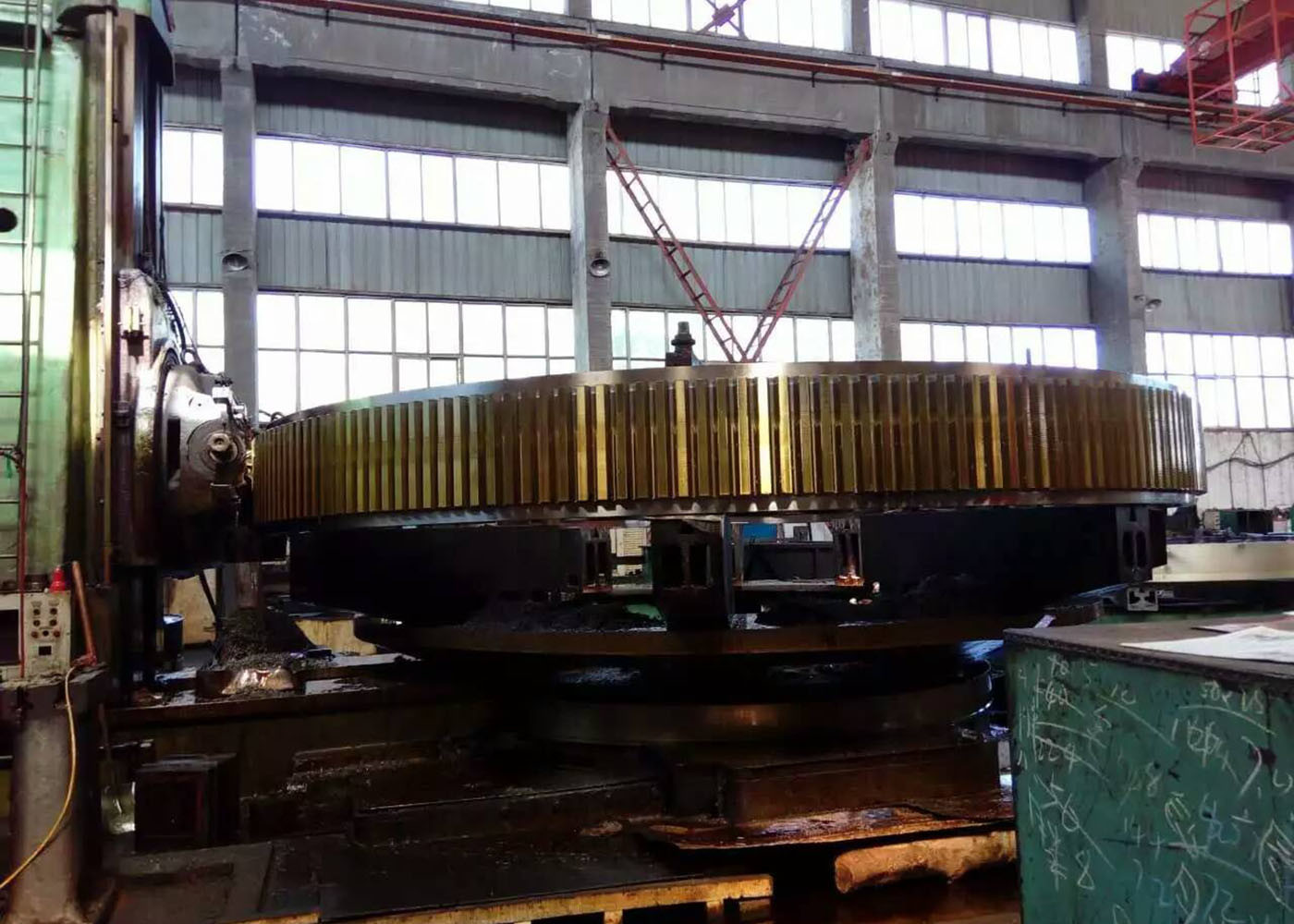

Custom Made Casting Steel Segmented Girth Gears For Cement Plant
1) Descripción del engranaje de circunferencia
Los engranajes de circunferencia siempre se dividen en varios segmentos idénticos.
Esto significa que los componentes son cortos y fáciles de manejar.
Los engranajes de circunferencia segmentados son más fáciles de organizar la entrega.
2) Aplicaciones de la corona dentada
Plantas de Cemento, Molino de Rodillos, Liners Mineros, Reductor de Molino de Bolas.
3) Material del engranaje de circunferencia
Fundición Acero/ ZG 42CrMo o ZG40CrNiMo
| Products | Girth Gears |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Manufacturing | Gear Milling/Gear Hobbing |
| Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Lead Angle | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
