| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | IG22082701 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $2000.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 500 Pieces/Month |
| Material: | 42CrMo/AISI 4140 | Teeth Number: | 121 |
|---|---|---|---|
| Width: | 105 | Accuracy Grade: | ISO 8-9 Grade |
| Module: | 8 | Manufacture: | Gear Shapping |
| Highlight: | AISI 4140 Internal Spur Gear,Internal Spur Gear 8 Module,AISI 4140 Annular Gear |
||

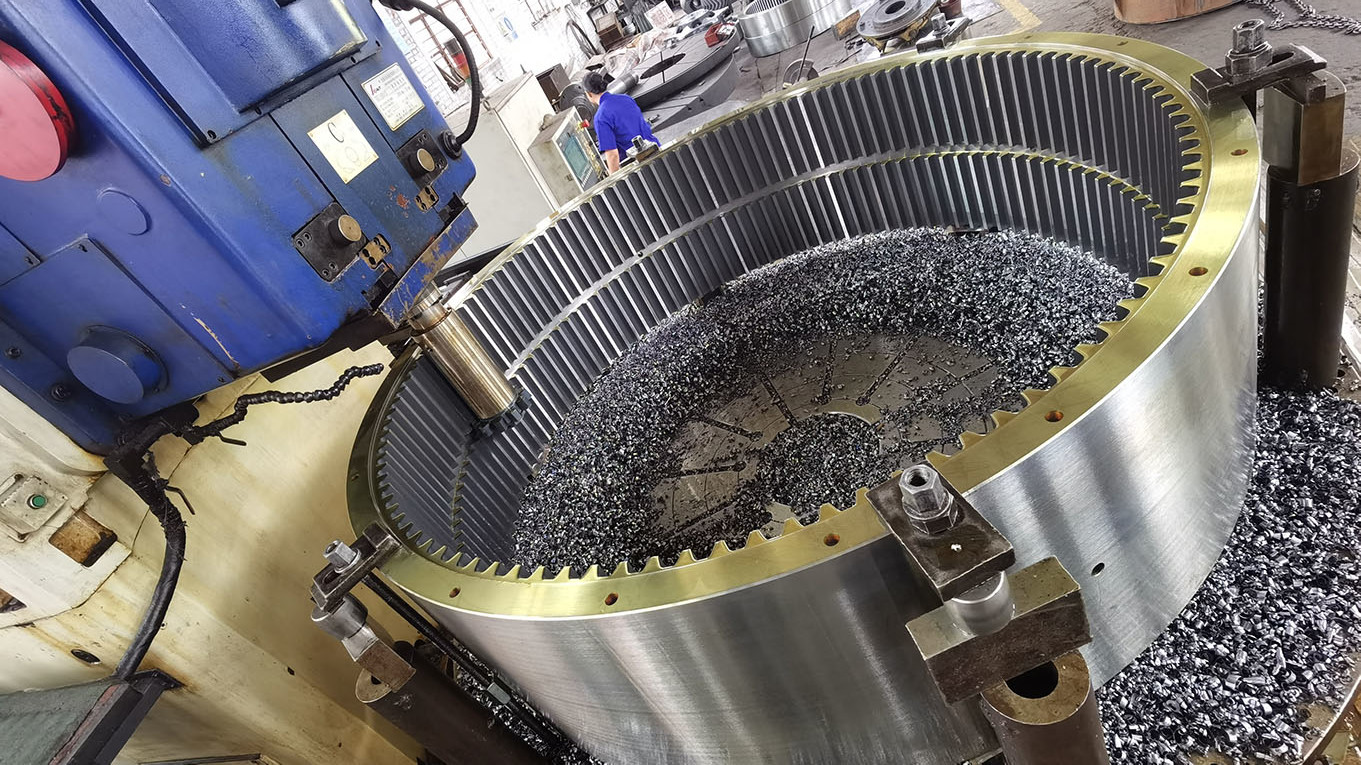

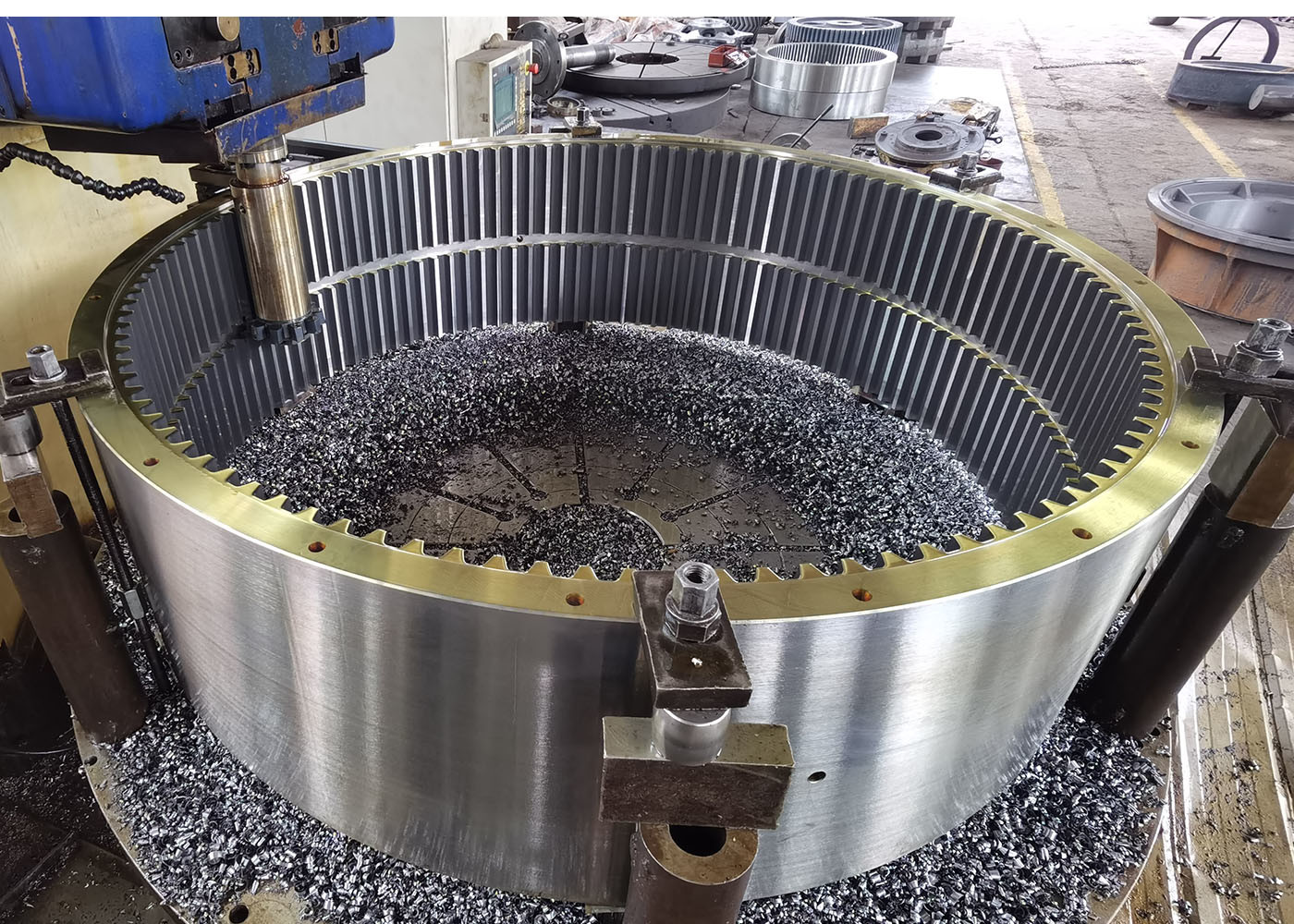

Transmission Gears 8 Module Internal Spur Gear Annular Gear Ring Gears
1) Aplicaciones de Engranaje Interno
a) Sistema de engranajes planetarios, embragues
b) camiones, tractores
c) Motores marinos, cortadoras de césped y generación de energía.
2) Descripción del engranaje interno
Las coronas dentadas internas son discos cilíndricos que tienen dientes de forma envolvente tallados en su cara interior.
| Products | Internal Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |

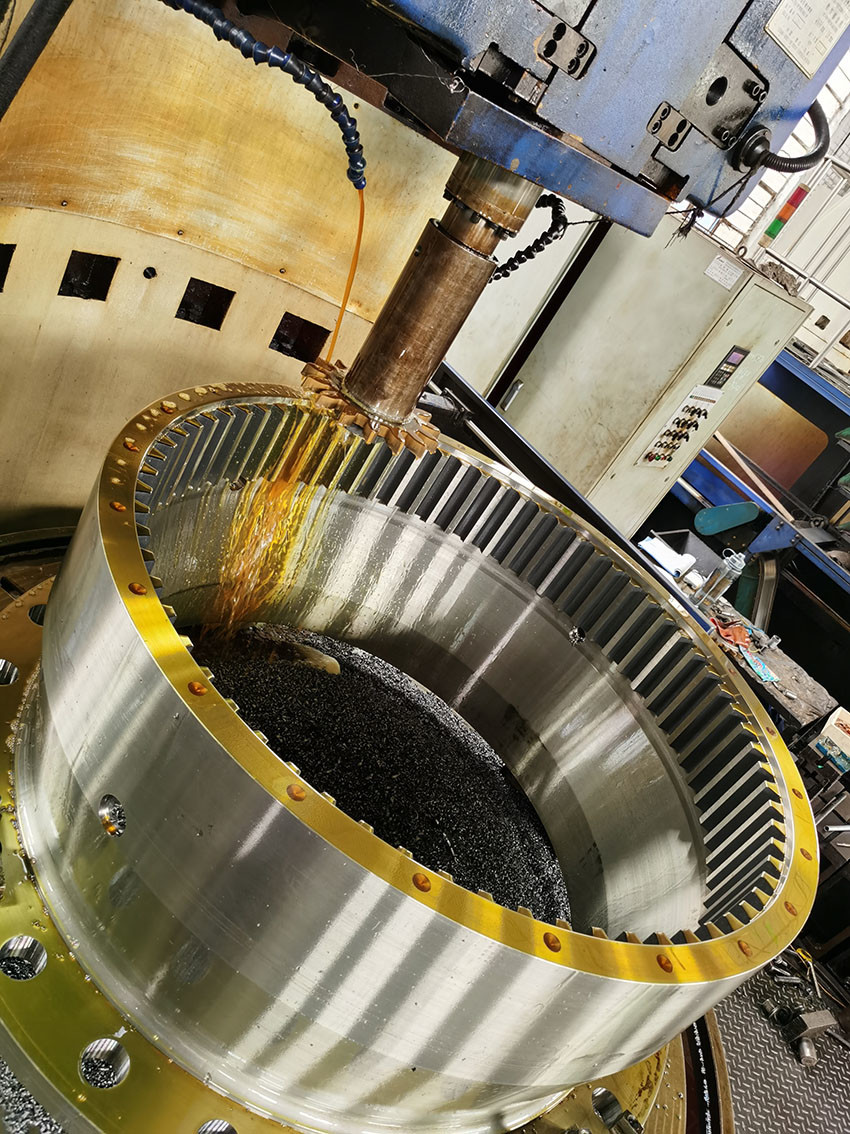

| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | If needed |
| Module (M) | 8 |
| Number of Teeth (Z) | 121 |
| Pressure Angle (α) | 20 |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempring/ Induction Hardening |
| Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
