| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS220090301 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $150.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Manufacture: | Spline Grinding | Hardness: | 58-62 HRC |
|---|---|---|---|
| Roughness: | Ra 0.8~1.6 | Spline Width: | 8 |
| Major Diameter: | 125mm | Minor Diameter: | 118mm |
| Highlight: | DIN 5482 Involute Spline Shaft,ISO 6 Involute Spline Shaft,DIN 5482 Splined Shaft |
||

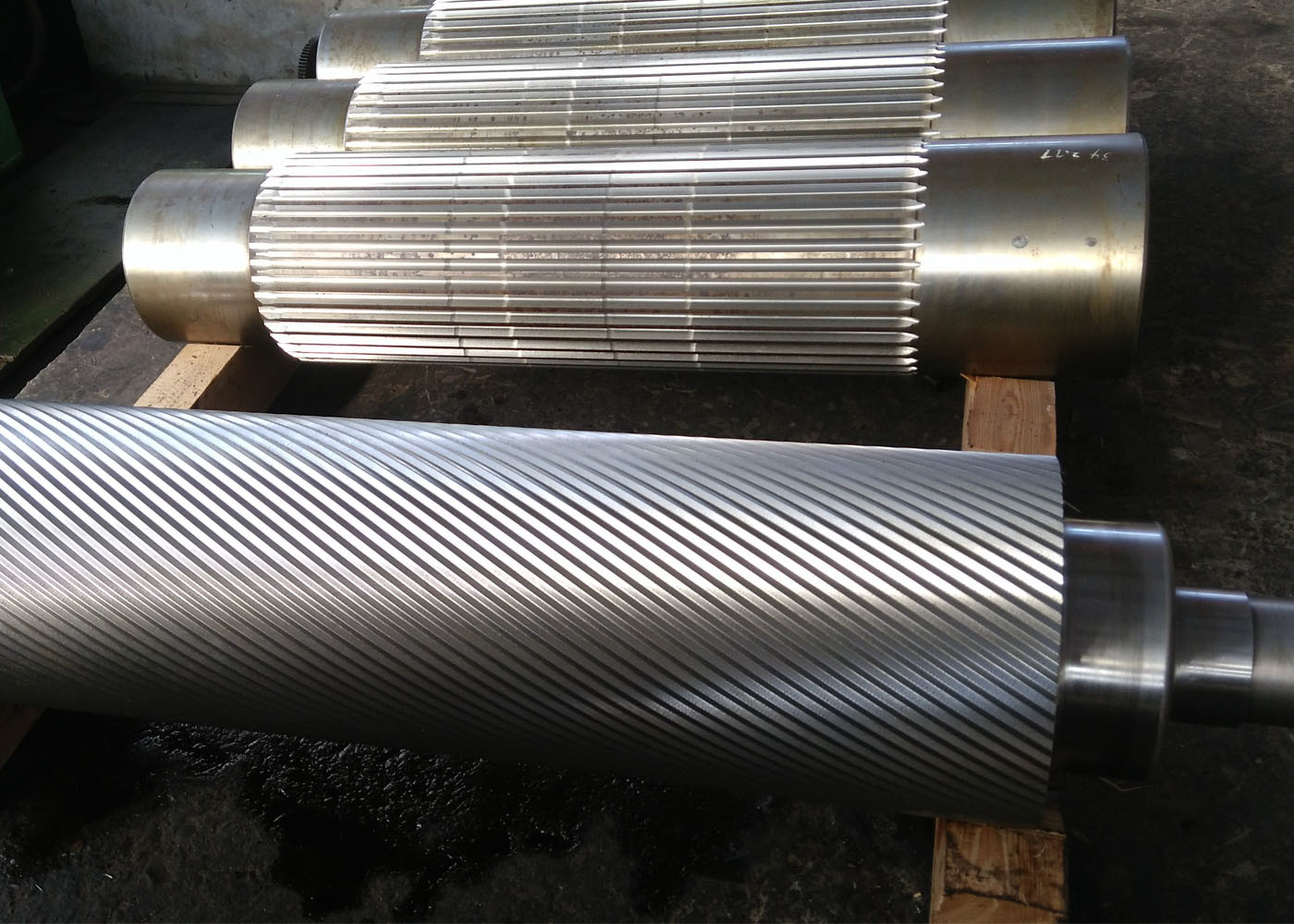

Custom Made DIN 5482 Involute Spline Grinding Splined Shaft Input Shaft
1) Types of Involut Spline
Involute splines feature short and equally spaced teeth that allow for greater strength with more centered stress distribution.
They are one of the most commonly used types of spline shaft due to their tendency to self-center, enhanced structural strength,
and ease with which they can be adjusted to a variety of dimensions.
Types available include:
a) Major diameter involute splines
b) Fillet root involute splines
c) Flat root involute splines
| Products | Involute Spline Shaft |
| Custom Made | √ |
| Gear Profile Type | Spline |
| Gear Teeth manufacturing | Spline Milling/Spilne Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Custom | 30° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
