| Material: | 42CrMo | Manufacturing: | Spline Hobbing |
|---|---|---|---|
| Hardness: | 45-50 HRC | Diameter Pitch: | 220 |
| Major Diameter: | 238 | Root Diameter: | 215.3 |
| Highlight: | 42CrMo Steel Spline Gear Shaft Spline,Spline Hobbing Main Drive Shaft,Forged 42CrMo Steel Main Drive Shaft |
||

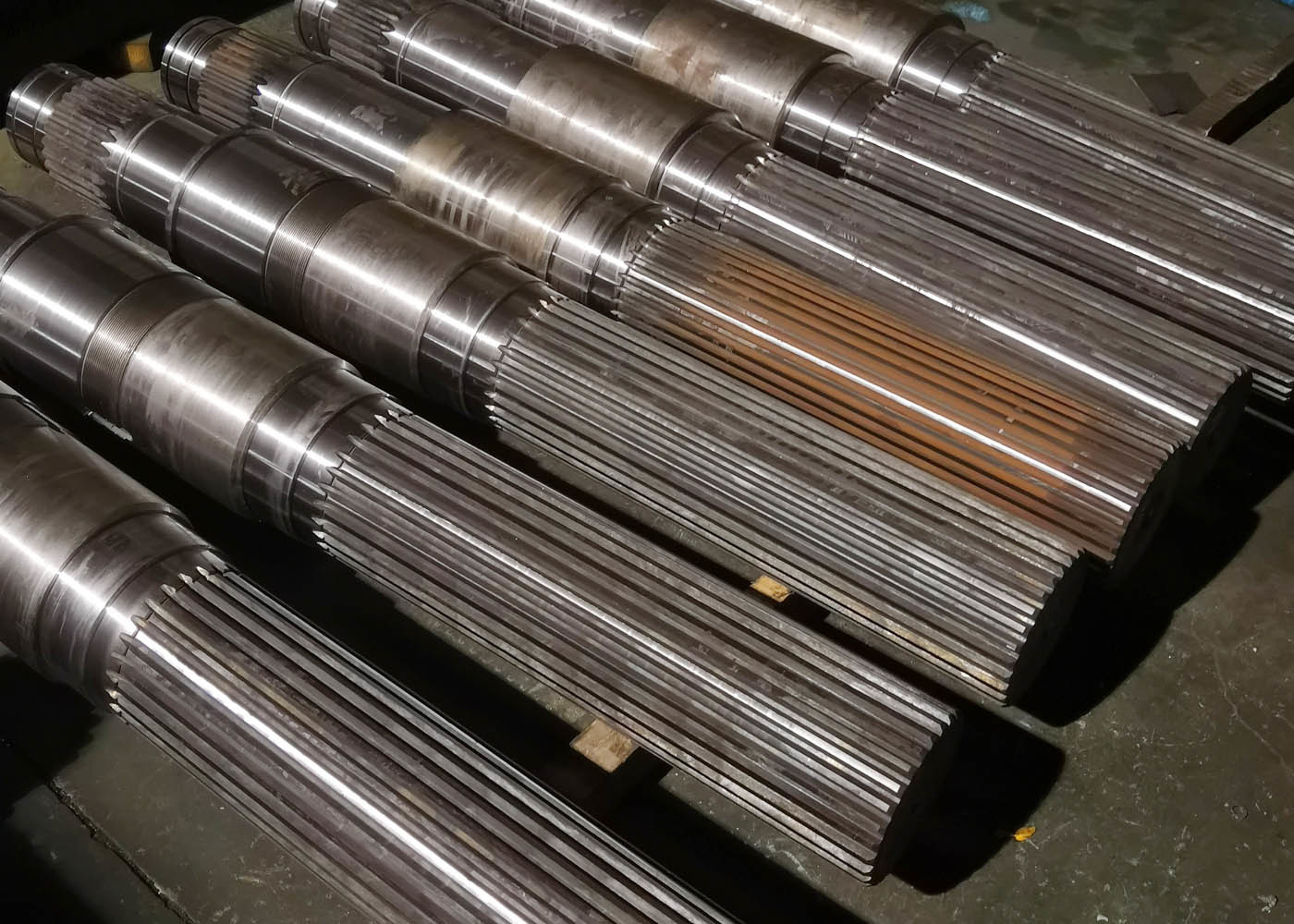

Forged 42CrMo Steel Spline Hobbing Involute Spline Shaft Main Drive Shaft
1) Applications of Spline Shaft
Aerospace
Automotive
Energy generation
Manufacturing equipment
Military
Mining
Oil and gas
Robotics
2) Manufacture of Splined Shaft
a) CNC Machining
b) Spline Hobbing
c) Spine Grinding
3) Material of Splined Shaft
a) Alloy Steel
b) Carbon Steel
c) Aluminum Alloy
d) Stainless Steel
4) Types of Splined Shaft
a) Parallel key splined shaft
b) Involute Splined Shaft
| Products | Rectangular Spline Shafts |
| Custom Made | √ |
| Gear Profile Type | Spline |
| Gear Teeth manufacturing | Spline Milling/Spilne Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Custom | 30° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
