| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GG23051101 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1500/ Piece |
| Packaging Details: | Wooden Crate/Pallte |
| Delivery Time: | 90 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 20 Pieces/Month |
| Material: | ZG42CrMo | Method: | Casting |
|---|---|---|---|
| Module: | 22.233 | Teeth Number: | 152 |
| Packing: | Pallet | Tip Diameter: | 3422 |
| Helix Angle: | 0 | ||
| Highlight: | Casting Steel Crown Rough Gear Quenching,152T Casting Steel Crown Gear,ZG 42 CrMo Steel Crown Gear |
||

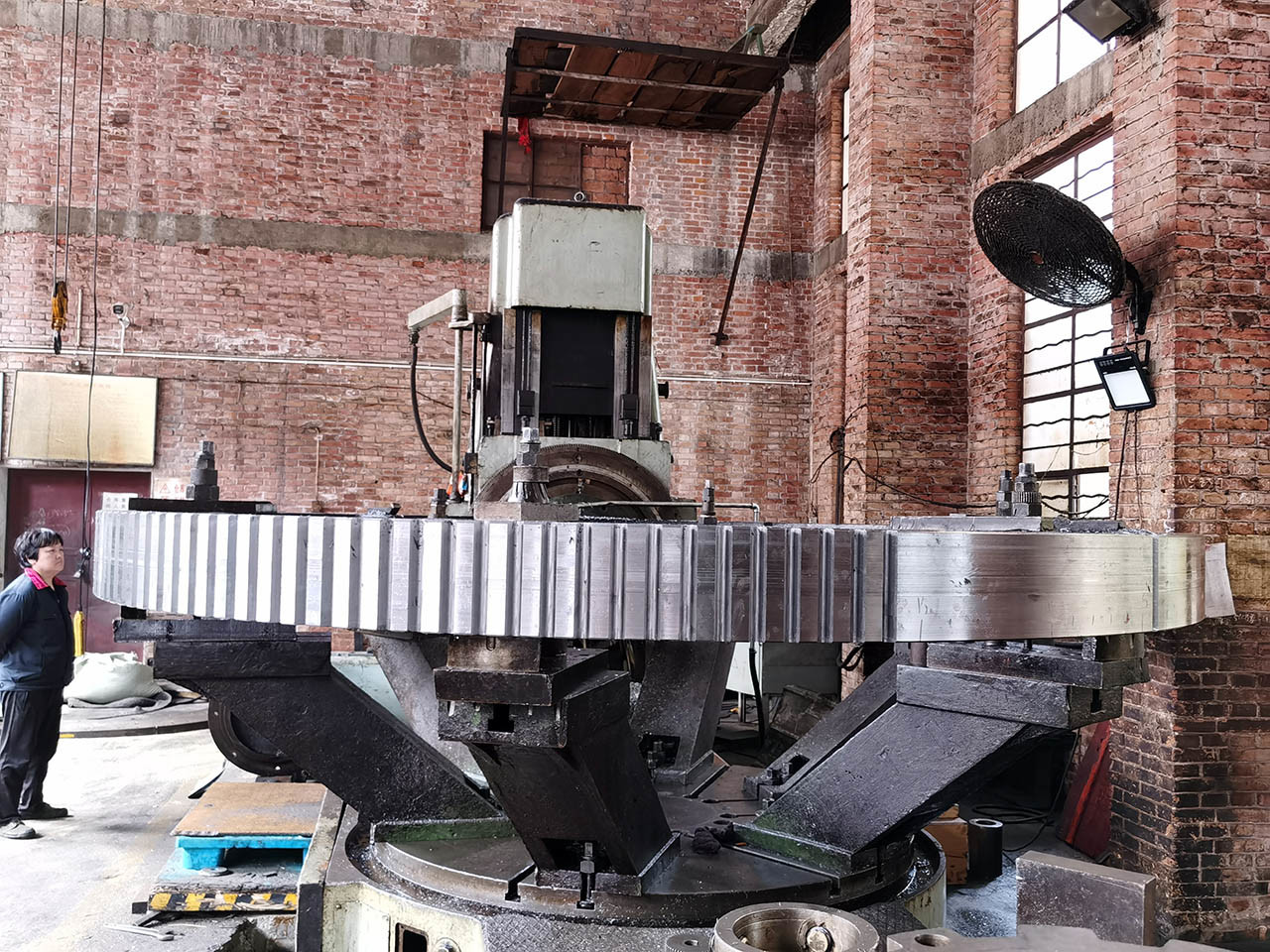

ZG42CrMo Casting Steel 152T Crown Gear Rough Gear Teeth Cutting For Heavy Duty Equipment
Crown Gear
Large Size Gear with Spring Plate
Quenching and Tempering Heat treatment
Hardness 220-260 HB
Accuracy Grade: ISO 8-9 Grade
Unit Weight: 2420Kg
| Products | Crown Gear |
| Custom Made | √ |
| Gear Profile Type | Spur Gear |
| Manufacturing | Gear Milling/Gear Hobbing |
| Teeth Grinding | |
| Module (M) | 20.233 |
| Number of Teeth (Z) | 152 |
| Pressure Angle (α) | 20° |
| Lead Angle | 0 |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
