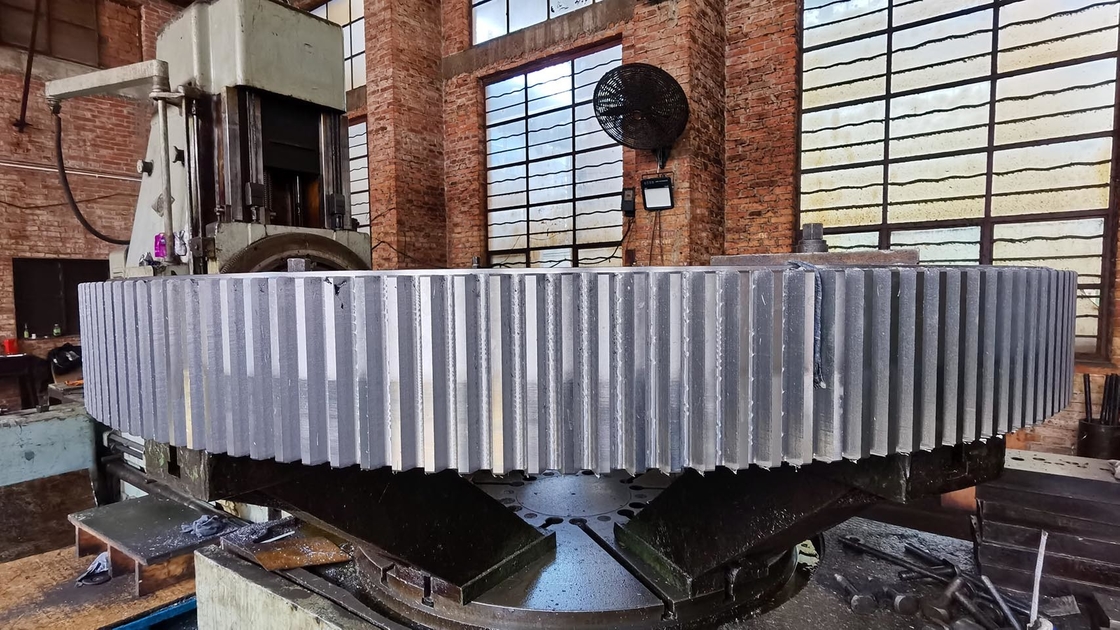

Product Description:
Girth Gears and Pinions are custom-made, highly precise, and gear-wheel products produced by normalizing and hardened gear-wheel stress. They are widely used in power generation, mining, marine, cement, oil and gas industries. Our Girth Gears and Pinions are available in customized pinion diameters, modules from 10 to 30, pinion widths, and pinion teeth numbers. With superior quality, our Girth Gears and Pinions are highly durable and can withstand harsh working environments.
Features:
- Product Name: Girth Gear And Pinion
- Girth Gear Width: Customized
- Girth Gear Teeth Number: Customized
- Surface Treatment: Normalizing
- Pinion Pressure Angle: 14.5°/20°/25°
- Pinion Module: 10-30
- Application: For Dryer Equipment
Technical Parameters:
|
Parameter
|
Specification
|
|
Custom Made
|
Available
|
|
Gear Profile Type
|
Cylindrical Gears
|
|
Manufacturing Process
|
Gear Milling/Gear Hobbing
|
|
Teeth Grinding
|
Included
|
|
Module (M)
|
Custom
|
|
Number of Teeth (Z)
|
Custom
|
|
Pressure Angle (α)
|
Custom
|
|
Lead Angle
|
Custom
|
|
Accuracy Grade
|
ISO 8-9 Grade
|
|
Heat Treatment
|
Quenching and Tempering
|
|
Surface Hardness
|
230-260 HB
|
|
Steel Code Grades Comparison
| CHINA/GB |
ISO |
ГΟСТ |
ASTM |
JIS |
DIN |
| 45 |
C45E4 |
45 |
1045 |
S45C |
CK45 |
| 40Cr |
41Cr4 |
40X |
5140 |
SCr440 |
41Cr4 |
| 20CrMo |
18CrMo4 |
20ХМ |
4118 |
SCM22 |
25CrMo4 |
| 42CrMo |
42CrMo4 |
38XM |
4140 |
SCM440 |
42CrMo4 |
| 20CrMnTi |
|
18XГT |
|
SMK22 |
|
| 20Cr2Ni4 |
|
20X2H4A |
|
|
|
| 20CrNiMo |
20CrNiMo2 |
20XHM |
8720 |
SNCM220 |
21NiCrMo2 |
| 40CrNiMoA |
|
40XH2MA/40XHMA |
4340 |
SNCM439 |
40NiCrMo6/36NiCrMo4 |
| 20CrNi2Mo |
20NiCrMo7 |
20XH2MA |
4320 |
SNCM420 |
|
Applications:
Girth Gear and Pinion are essential components for dryer equipment, which are manufactured by OEM with brand name and model number of CUSTOM. The gear wheel is designed for customized size and process with pressure angle of 14.5°/20°/25°, module from 10-30 and pinion width customized. The high quality gear wheel is durable and stable, with minimum order quantity of 2 and price of 1320. The surface treatment is null. It is supplied for 20 pieces per month with certified of QC and delivery time of 85 days. The payment terms are T/T and the package is plywoode crate.
Customization:
Girth Gear And Pinion
- Brand Name: OEM
- Model Number: CUSTOM
- Place of Origin: CHINA
- Certification: QC
- Minimum Order Quantity: 2
- Price: 1320
- Packaging Details: Plywoode Crate
- Delivery Time: 85 Days
- Payment Terms: T/T
- Supply Ability: 20Pcs/Month
- Ring Gear: Large Size
- Gear Wheel: Customized Diameter
- Drive System: Customized Teeth Number and Module
- Surface Treatment: Null
Support and Services:
Girth Gear and Pinion Technical Support and Service
Our team of experienced technicians provides technical support and service for Girth Gear and Pinion products. We provide a range of services to help you get the most out of your Girth Gear and Pinion product, including:
- Installation and commissioning support
- Troubleshooting and diagnosis of technical issues
- Technical advice and support
- Maintenance and repair services
- Training and user education
Contact us today to find out how our technical support and service can help you get the most out of your Girth Gear and Pinion product.
Packing and Shipping:
Packaging and Shipping of Girth Gear And Pinion
Girth Gear and Pinion will be carefully packed in a box or wooden crate in order to avoid any damage during transportation. The box/crate will be secured with fasteners and covered with a waterproof material.
The product will be shipped with reliable carriers such as DHL, FedEx, UPS, etc. to ensure safe and fast delivery to the customer.
