| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Certification: | QC |
| Model Number: | C6LB-R10-4G |
| Minimum Order Quantity: | 1000 Pcs |
| Price: | 0.2 |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 20 Days |
| Supply Ability: | 50000 Pcs/Month |
| Nominal Diameter: | 8 | Actual Diameter: | 8.05~8.18 |
|---|---|---|---|
| Nominal Riveting Thickness: | 6~32 | Actual Riveting Thickness: | 3.2~34.9mm |
| Highlight: | Nominal Diameter 8 lock bolt,Ring-Grooved lock bolt 5/16,C6LB-R10-4G rivet bolts |
||

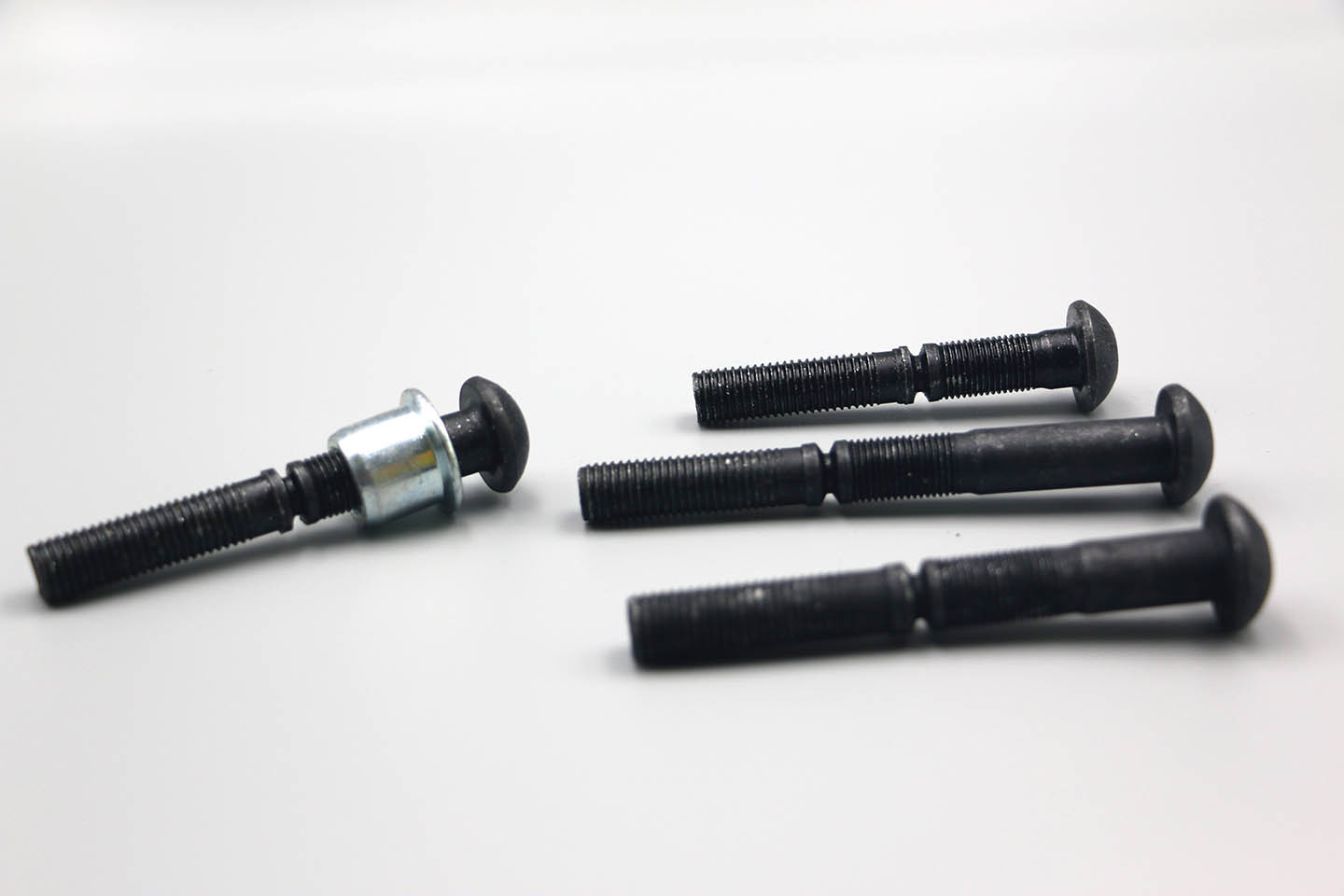

Ring-Grooved lock bolt Nominal Diameter 8 5/16" Huck C6LB-R10-4G
The installation process of lock bolts involves inserting the bolt through the pre-drilled holes in the materials to be joined.
A special installation tool, such as a pneumatic or hydraulic rivet gun, is used to pull the collar towards the bolt head.
As the collar is pulled, it forms a bulbed tail on the blind side of the joint, creating a locked and tight connection.
| Nominal Diameter | Actual Diameter | Nominal Riveting Thickness | Actual Riveting Thickness | Huck Model | Avdel Model | ||
| Min | Max | Min | Max | ||||
| 8 (5/16”) |
8.05 | 8.18 | 6 | 3.2 | 9.5 | C6LB-R10-4G | 02621-71004 |
| 10 | 6.4 | 12.7 | C6LB-R10-6G | 02621-71006 | |||
| 13 | 9.5 | 15.9 | C6LB-R10-8G | 02621-71008 | |||
| 16 | 12.7 | 19.1 | 8.05~8.18 | 02621-71010 | |||
| 19 | 15.9 | 22.2 | C6LB-R10-12G | 02621-71012 | |||
| 22 | 19.1 | 25.4 | C6LB-R10-14G | 02621-71014 | |||
| 25 | 22.2 | 28.6 | C6LB-R10-16G | 02621-71016 | |||
| 28 | 25.4 | 31.8 | C6LB-R10-18G | 02621-71018 | |||
| 32 | 28.6 | 34.9 | C6LB-R10-20G | 02621-71020 |
