| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Certification: | QC |
| Model Number: | C50LR-BR28-8 |
| Minimum Order Quantity: | 1000 Pcs |
| Price: | 0.2 |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 20 Days |
| Supply Ability: | 50000 Pcs/Month |
| Nominal Diameter: | 20 | Actual Diameter: | 18.8~19.5 |
|---|---|---|---|
| Nominal Riveting Thickness: | 6 | Actmual Riveting Thickness: | 6.35~12.7 |
| Highlight: | 7/8" Fastener Collar,Lock Bolt 22 Racks And Pinions |
||

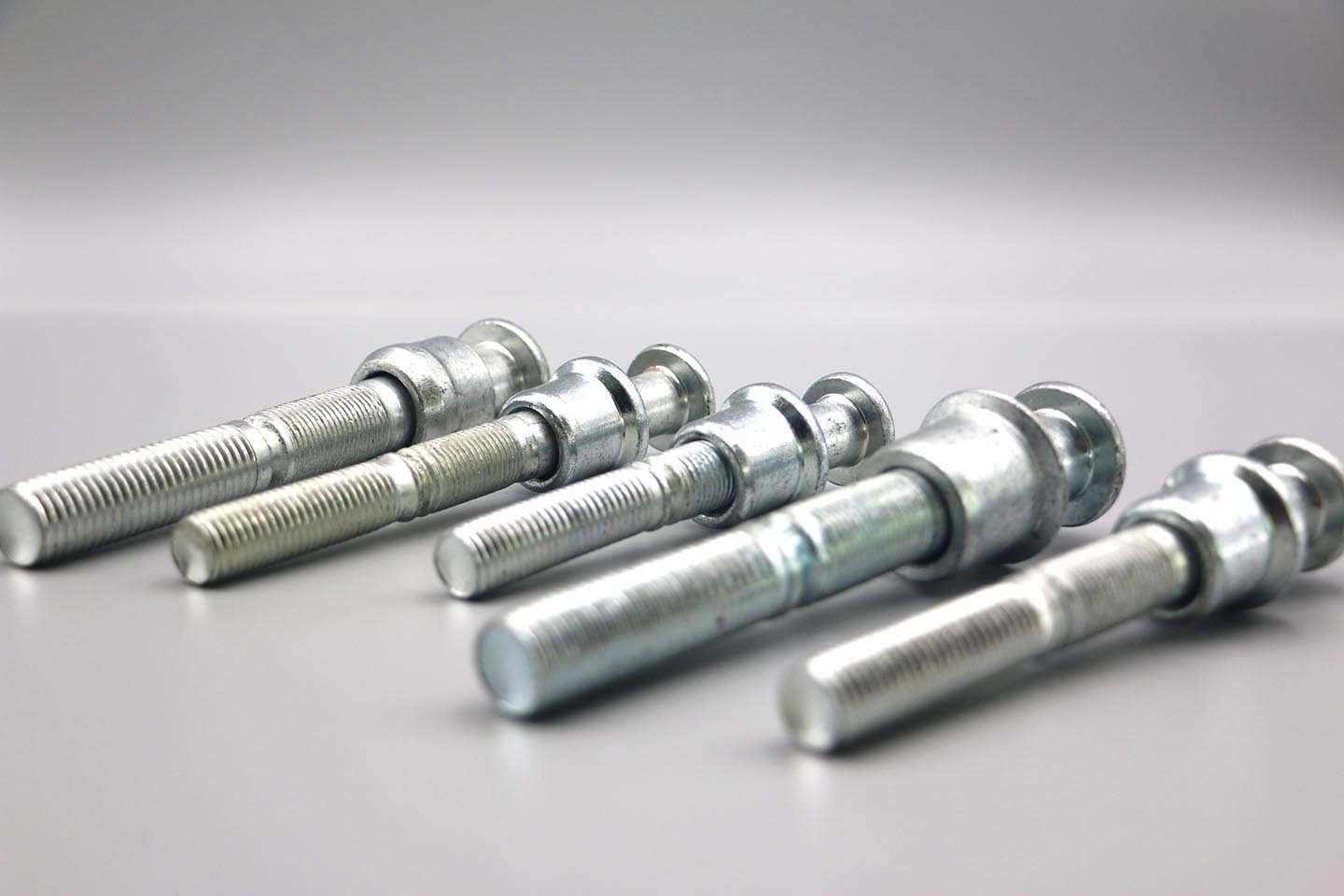

Fastener Collar of Blind Rivet Bolts Lock Bolt 22 7/8" C50LR-BR28-8
Applications of Lock Bolts
Automotive:
Lock bolts are utilized in automotive manufacturing for joining components like chassis, body panels, frames, and suspension systems.
They offer high strength and durability, ensuring the integrity of the vehicle's structure and withstanding the mechanical stresses and vibrations experienced during operation.
| Nominal Diameter | Actual Diameter | Nominal Riveting Thickness | Actual Riveting Thickness | Huck Model | Avdel Model | ||
| Min | Max | Min | Max | ||||
| 22 (7/8”) |
22.0 | 22.7 | 12 | 12.7 | 19.1 | C50LR-BR28-8 | 02861-02808 |
| 18 | 19.1 | 25.4 | C50LR-BR28-12 | 02861-02812 | |||
| 24 | 25.4 | 31.8 | C50LR-BR28-16 | 02861-02816 | |||
| 31 | 31.8 | 38.1 | C50LR-BR28-20 | 02861-02820 | |||
| 37 | 38.1 | 44.5 | C50LR-BR28-24 | 02861-02824 | |||
| 44 | 44.5 | 50.8 | C50LR-BR28-28 | 02861-02828 | |||
| 50 | 50.8 | 57.2 | C50LR-BR28-32 | 02861-02832 | |||
| 57 | 57.2 | 63.5 | C50LR-BR28-36 | 02861-02836 | |||
| 63 | 63.5 | 69.9 | C50LR-BR28-40 | 02861-02840 | |||
| 70 | 69.8 | 76.2 | C50LR-BR28-44 | 02861-02844 | |||
| 77 | 76.2 | 82.6 | C50LR-BR28-48 | 02861-02848 | |||
| 83 | 82.6 | 88.9 | C50LR-BR28-52 | 02861-02852 | |||
| 89 | 88.9 | 95.3 | C50LR-BR28-56 | 02861-02856 | |||
| 95 | 95.3 | 101.6 | C50LR-BR28-60 | 02861-02860 |
