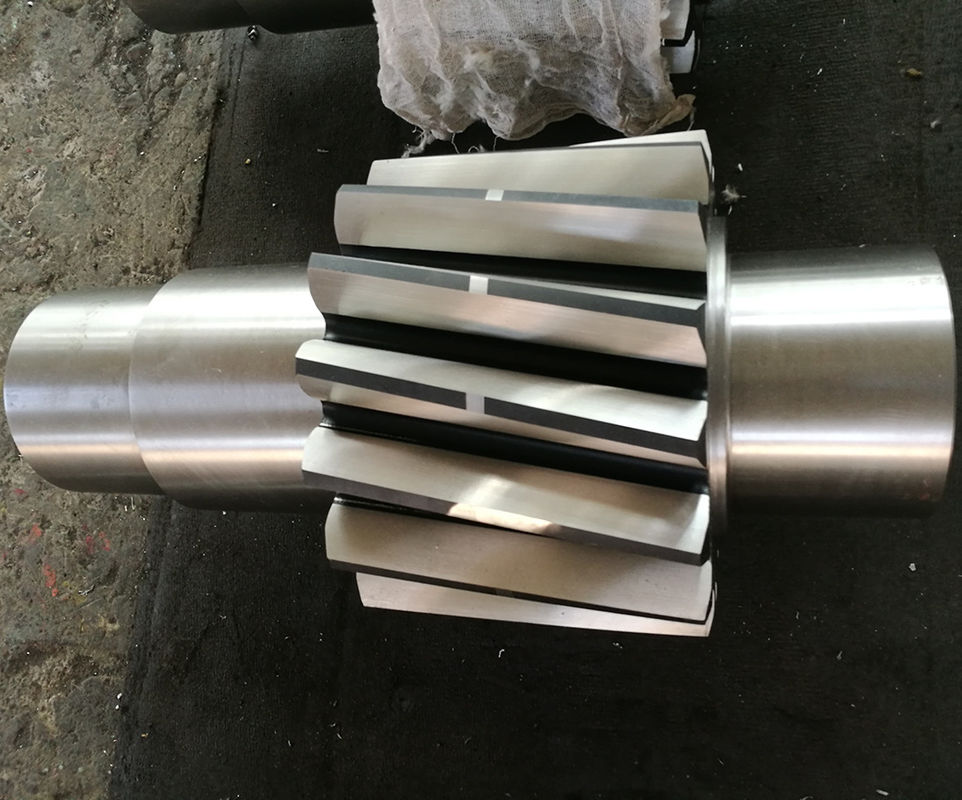

ISO 6 Grade High Precision Transmission Gear Shaft with CNC Numerical Control Technology

1)Descriptions of Transmission Gear Shaft

The transmission gear shaft is a power transmission component that integrates gears and shafts.

It is mainly used to transfer rotational motion and regulate rotational speed and torque.

It is commonly found in mechanical equipment, automotive transmission systems and other fields,

featuring high efficiency, compactness and durability.

2)Characteristics of Transmission Gear Shaft

• High-efficiency transmission: Adopting precise meshing design, the transmission efficiency is ≥ 95%, significantly reducing energy consumption losses.
• Compact structure: Integrated molding of shaft and gear, increasing space utilization by 30%, meeting the demand for high-density assembly.
• Variable speed diversity: Supports multi-level gear ratio matching, with speed ratio adjustment range from 1:5 to 1:100.
• Operating stability: ISO 6-level machining accuracy, noise of helical gears controlled below 65 dB.

3)Advantages of Transmission Gear Shaft

• Superior durability: Made of 20CrMnTi alloy steel, it undergoes carburizing, quenching and heat treatment.
• Micron-level precision: Utilizing CNC numerical control gear grinding technology, the gear tooth profile accuracy reaches ISO 5 grade, and the transmission error is ≤ 0.01mm.
• Ease of Maintenance: Modular standard design, replacement time reduced by 50%, supports dual lubrication systems of grease/oil bath
• Broad compatibility: Perfectly compatible with various transmission configurations such as parallel axes (±0.1mm), cross axes (15-90°), and staggered axes.
