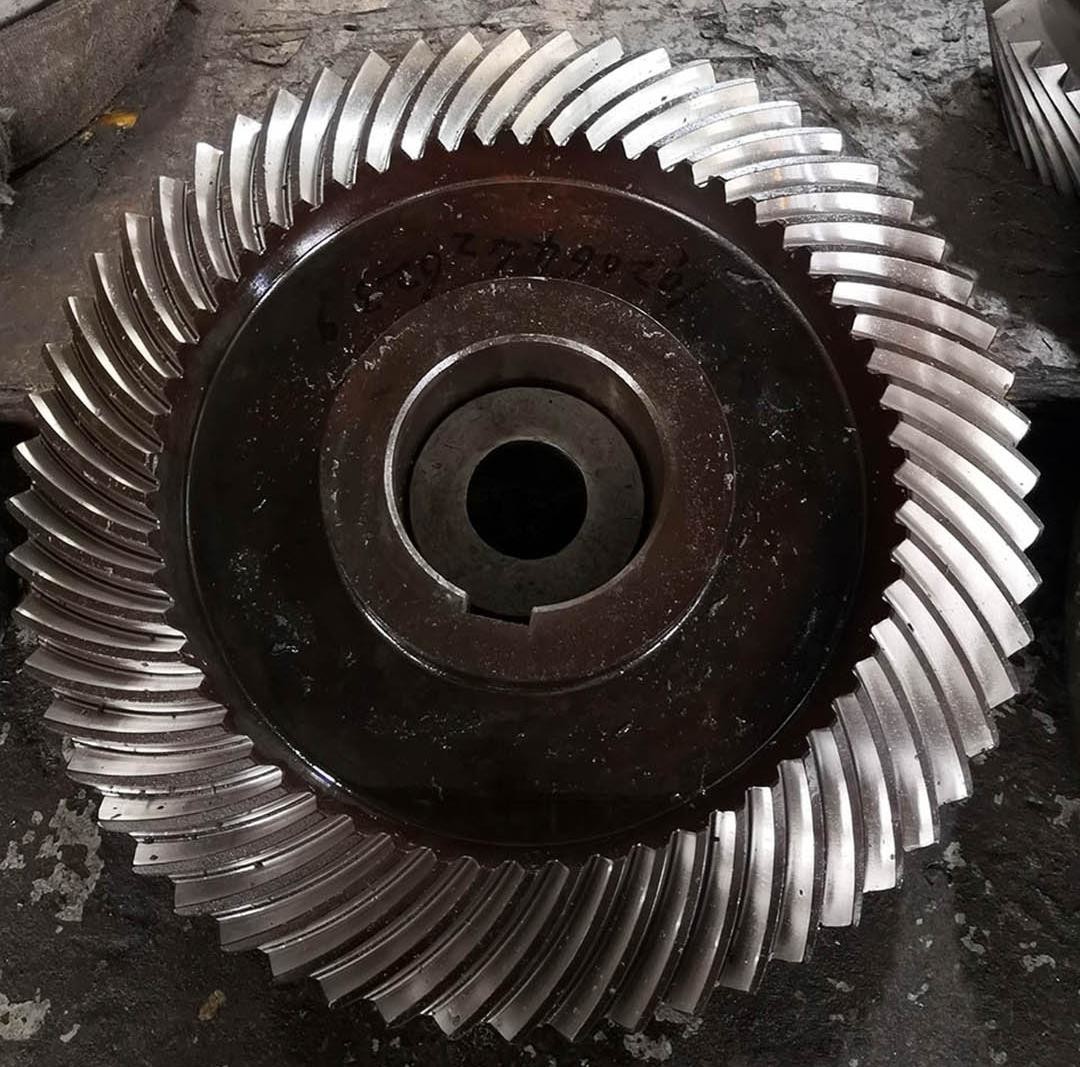

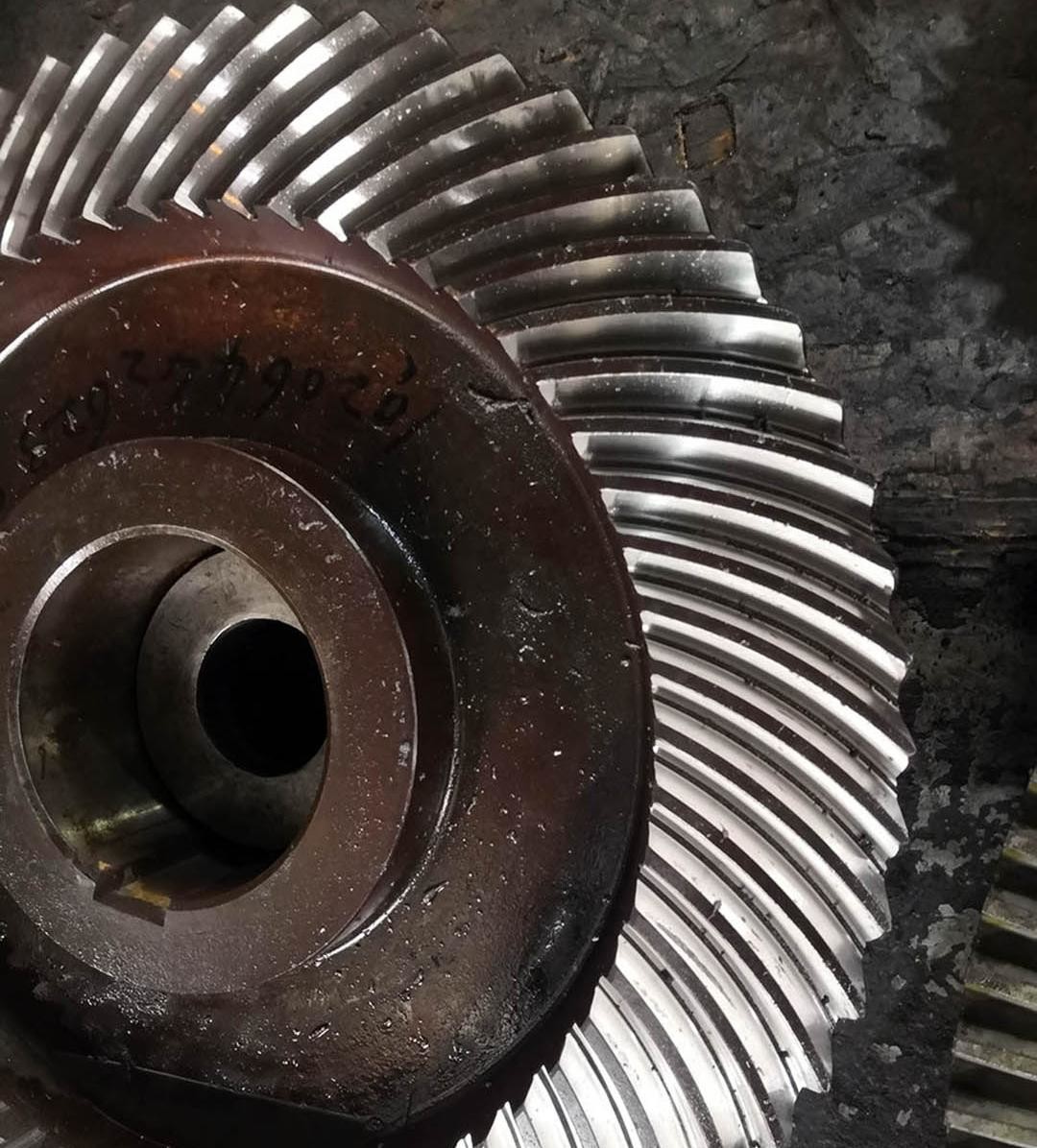

Spiral Bevel Gear With Gleason Gear Profile Type For Custom Made Power

Place of Origin	CHINA
Brand Name	YIZGEAR

Product Details

Method:

Gear Hobbing

Direction:

Left Hand

Steel Type:

Forging Steel

Type:

Manual

Tooth Number:

Pressure Angle:

20°

Highlight:

Custom Made Spiral Bevel Gear

Gleason Spiral Bevel Gear

32 Tooth Spiral Bevel Gear

Payment & Shipping Terms

Minimum Order Quantity

1 Sets

Price

300＄

Packaging Details

Plywood Crate

Delivery Time

60 Days

Payment Terms

L/C, T/T

Supply Ability

500 Sets/Month

Product Description

1) Description of Spiral Bevel Gear

A Spiral Bevel Gear is a type of gear used to transmit power and motion between intersecting shafts, and its tooth profile is distributed in a spiral shape.
2) Feature of Spiral Bevel Gear

It adopts a helical curve tooth profile. During meshing, the contact between the tooth surfaces is progressive rather than sudden impact.
The number of teeth that mesh simultaneously is larger, and the transmission process is more continuous.

Technical Specifications

Parameter	Specification
Custom Made	Available
Gear Profile Type	Gleason
Manufacturing Process	Gear Milling & Gear Teeth Grinding
Teeth Grinding	Included
Module (M)	Custom
Number of Teeth (Z)	Custom
Pressure Angle (α)	Custom
Lead Angle	Custom
Accuracy Grade	ISO 6 Grade/ AGMA 11Grade
Heat Treatment	Carburizing/Cement Quenching
Surface Hardness	58-62HRC

Steel Code Grades Comparison

CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

Production Equipment

Spiral Bevel Gear With Gleason Gear Profile Type For Custom Made Power 0

Production Process

Spiral Bevel Gear With Gleason Gear Profile Type For Custom Made Power 1
