| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 2 Sets |
| Price: | 300＄ |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Modue: | 16 | Gear Teeth: | 53 |
|---|---|---|---|
| Heat Treatment: | Carburizing And Quenching | Method: | Gear Grinding |
| Type: | Spiral Bevel Gear | Profie Type: | Gleason |
| Highlight: | Engineering Vehicles Spiral Bevel Gears,Heavy Machinery Spiral Bevel Gears,Durable Spiral Bevel Gears |
||

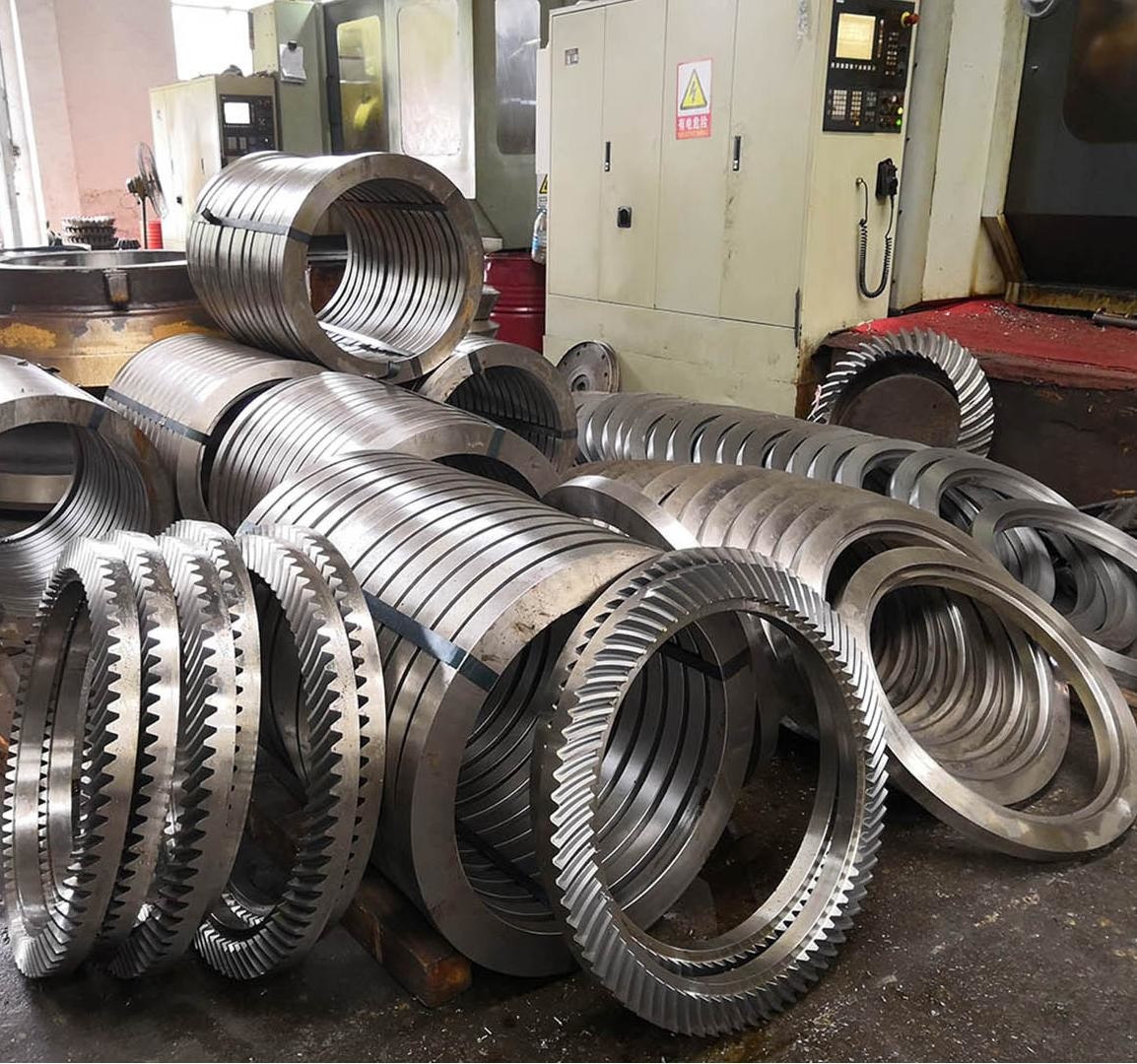

1) Features of Spiral Bevel Gear
a) Due to the inclined design of the helical teeth, the load is distributed on multiple teeth rather than concentrated on a few teeth.
b) The contact area of the tooth surface is larger and the force is more uniform.
2) Advantages of Spiral Bevel Gear
a) Higher torque carrying capacity: Suitable for high-load scenarios such as heavy machinery and engineering vehicles.
b) Extend gear life: Reduce local wear and enhance durability.
| Products | Spiral Bevel Gears |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Manufacturing | Gear Milling & Gear Teeth Grinding |
| Teeth Grinding | √ |
| Module (M) | 16 |
| Number of Teeth (Z) | 53 |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
