| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 2 Sets |
| Price: | 300＄ |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Gear Teeth Number: | 36 & 48T | Manufacture Type: | Gear Milling |
|---|---|---|---|
| Profile Type: | Gleason | Module: | 16.477 |
| Surface Hardness: | HRC58-62 | Profie Type: | Gleason |
| Highlight: | High Durability Spiral Bevel Gears,62 HRC Spiral Bevel Gears |
||

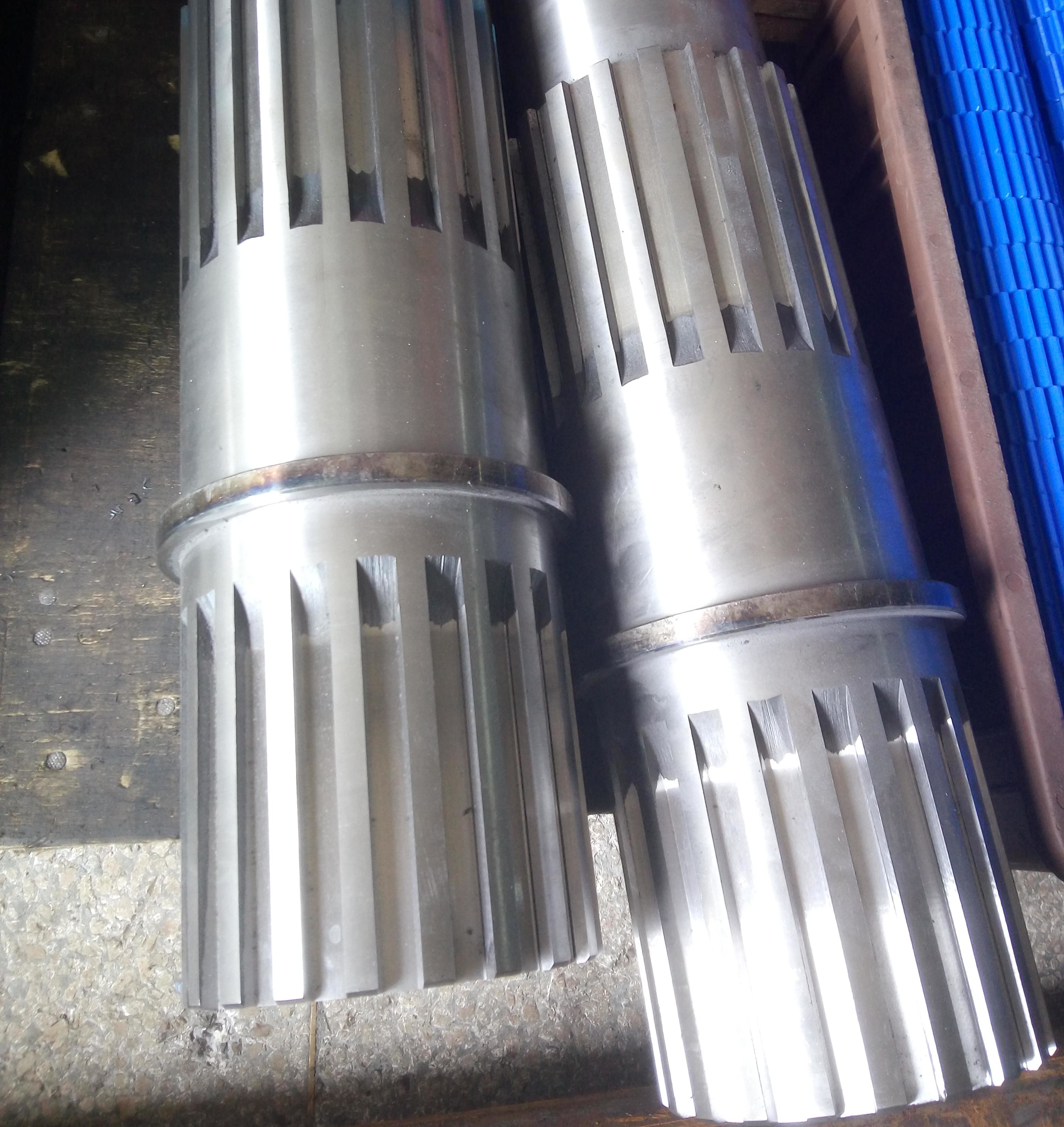

1) Description of Spline Gear Shaft
A splined shaft is a type of transmission shaft with longitudinal teeth (splines),
which transmits torque and motion by meshing with matching spline holes.
2) Characteristics of Spline Gear Shaft
a)The surface of the shaft is machined with multiple uniformly distributed protrusions (splines),
which can be straight teeth, helical teeth or involute tooth profiles.
b)The splines and shafts are integrally formed to ensure high strength and precise alignment.
3)Advantages of Spline Gear Shaft
a)Efficient power transmission: It transmits greater torque than ordinary flat keys and is suitable for high-load scenarios.
b)Precise alignment: Spline meshing can automatically center, reducing assembly errors and improving transmission accuracy.
| Products | Spline Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Milling/Gear Hobbing/Gear Shaping |
| Gear Teeth Grinding | √ |
| Module (M) | 10 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 0° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
