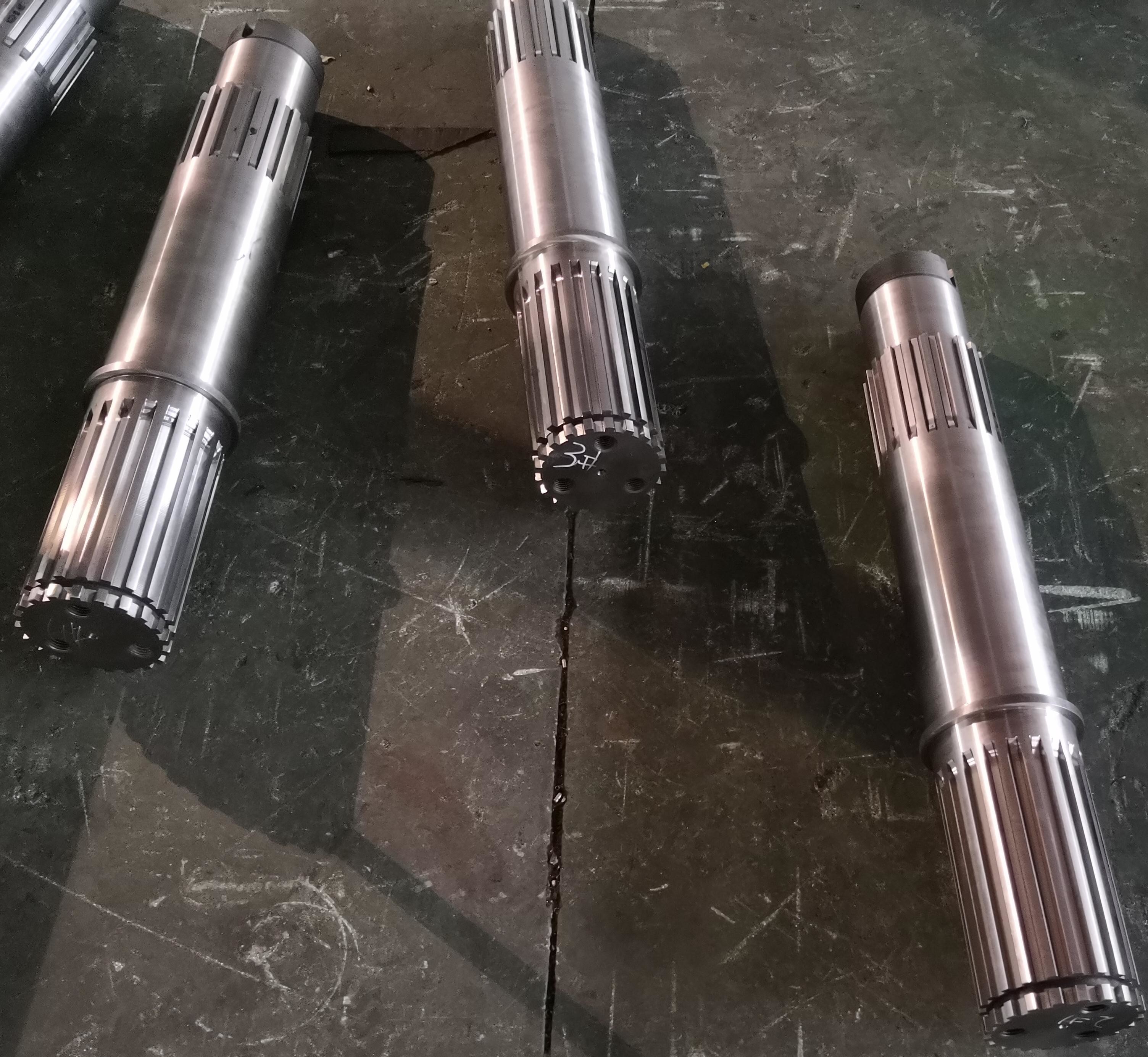

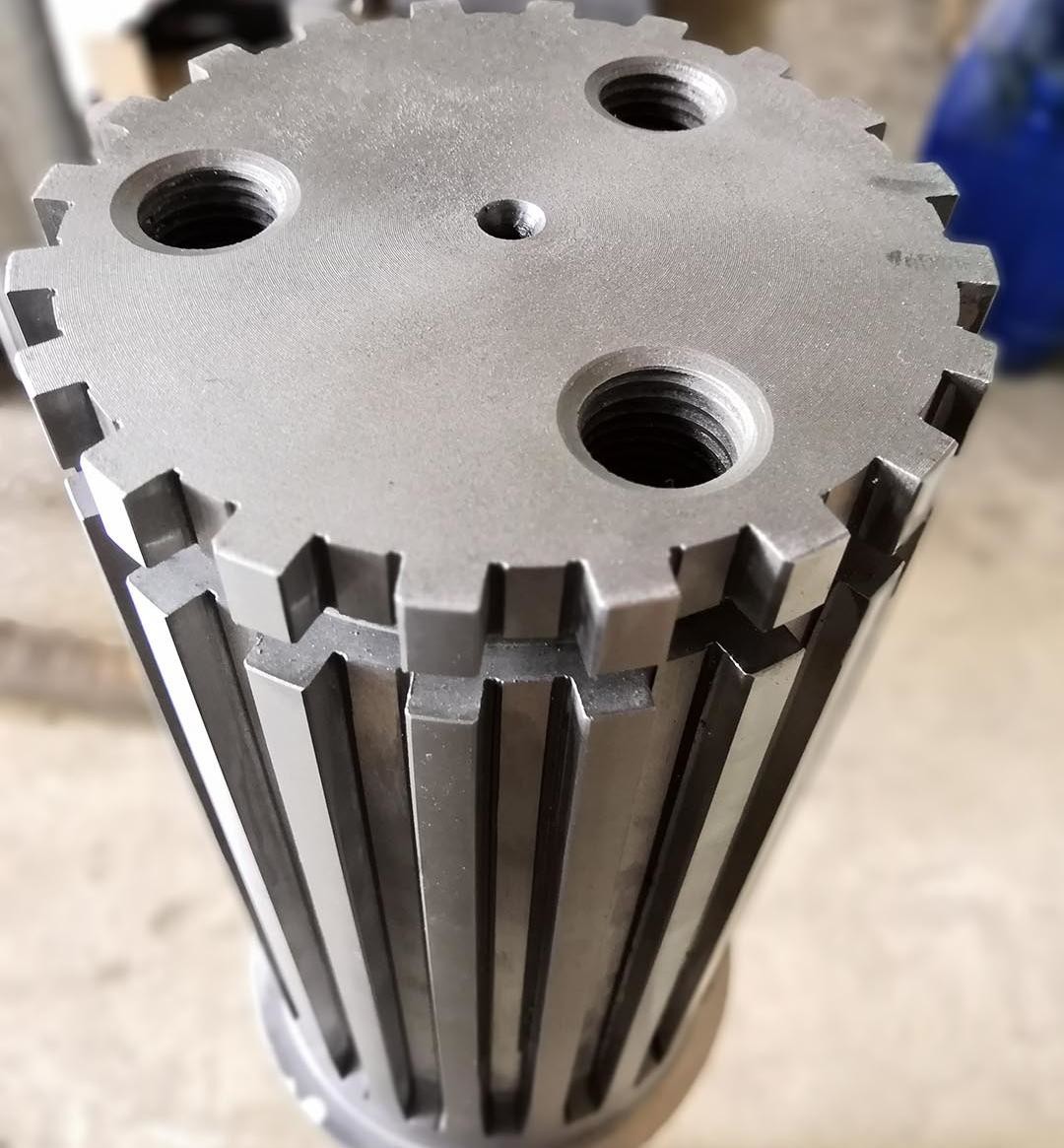

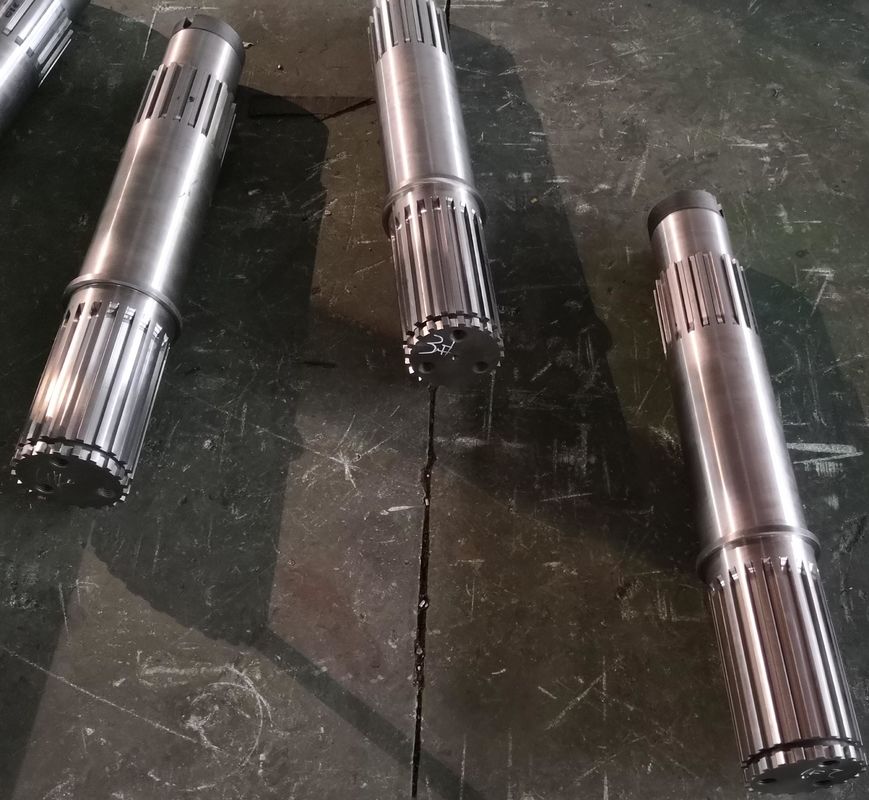

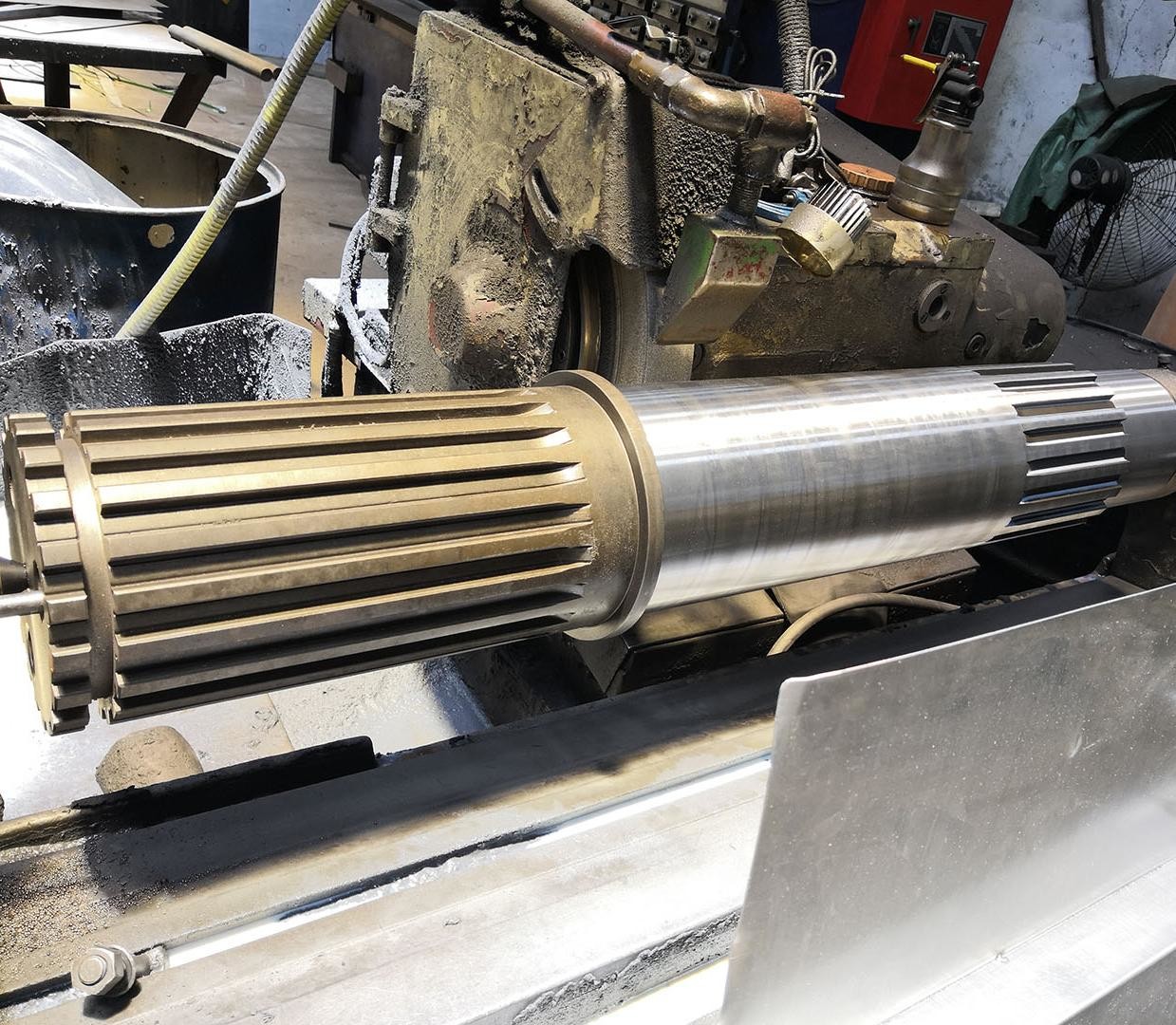

Custom Made Spline Gear Shaft with Cylindrical Gear Profile and Spline Milling and Grinding

1) Description of Spline Gear Shaft

The splined shaft is a transmission component that disperses loads through multi-tooth meshing

and can withstand combined radial, axial and torsional forces.

2) Characteristics of Spline Gear Shaft

• Simultaneous contact of multiple teeth ensures more uniform load distribution and avoids single-point stress concentration.
• Optional rectangular splines, involute splines, etc. are available. Different tooth profiles are suitable for different load requirements

3)Advantages of Spline Gear Shaft

• High load-bearing capacity: The torque transmission capacity is several times higher than that of single-key connections (such as flat keys).
• Strong fatigue resistance: Multi-tooth load sharing extends service life, suitable for frequent start-stop or impact loads.
