| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 2 Sets |
| Price: | 300＄ |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Spline Module: | 6 | Spline Teeth No: | 28 |
|---|---|---|---|
| Profile Type: | Involute Spline | Material: | Steel |
| Hardness: | HRC 58-62 | Manufacturing Process: | Spline Grinding |
| Highlight: | Precision Component Spline Gear Shaft,Transmission Spline Gear Shaft,Custom Made Spline Gear Shaft |
||

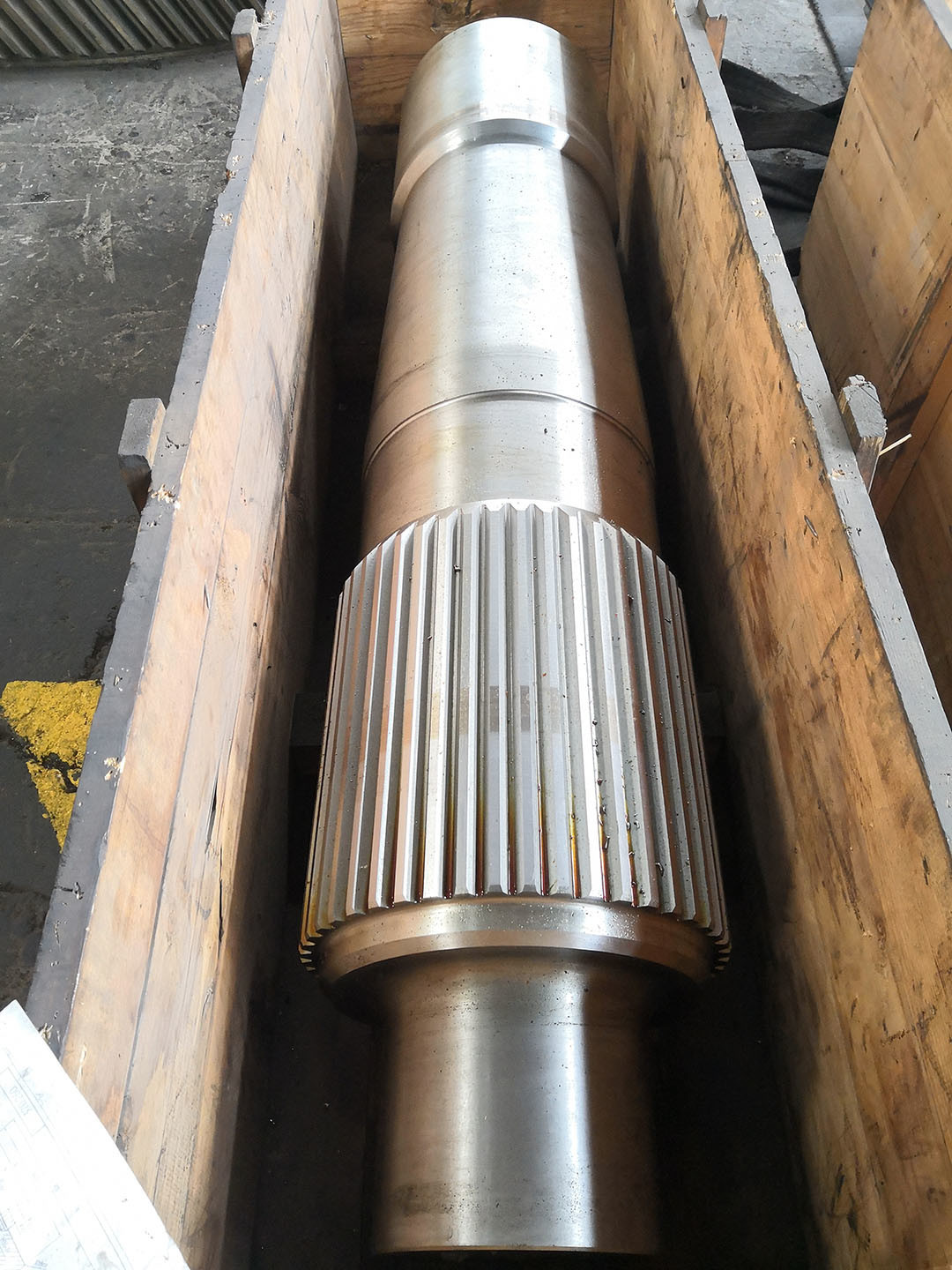

1) Description of Spline Gear Shaft

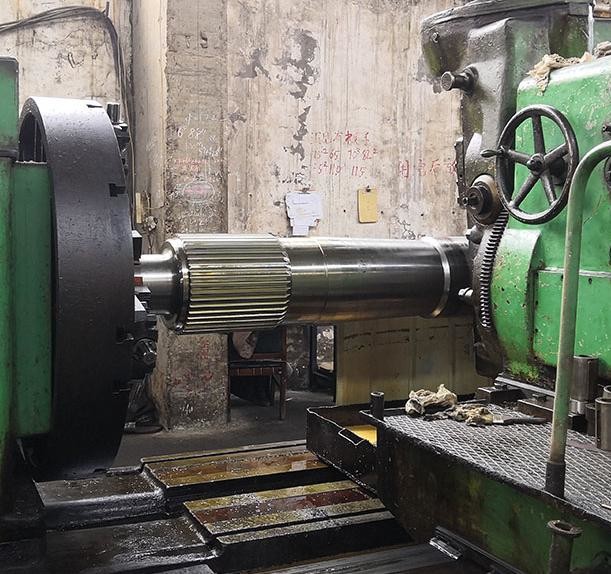

The splined shaft is a precision component processed by milling, hobbing or cold forming, etc.,
and must be strictly matched with the matching splined hole.
2) Characteristics of Spline Gear Shaft
a) Involute splines (such as those in DIN/ISO standards) are easy to align and the processing technology is mature.
b) Rectangular splines have a lower cost, but their centering accuracy is slightly inferior.
3)Advantages of Spline Gear Shaft
a) Easy assembly: The spline fit allows for axial sliding (such as the shift shaft of a transmission) while maintaining transmission reliability.
b) Good interchangeability: Standardized splines (such as SAE, JIS) are easy to maintain and replace.
| Products | Spline Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Milling/Gear Hobbing/Gear Shaping |
| Gear Teeth Grinding | √ |
| Module (M) | 10 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 0° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
