| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 2 Sets |
| Price: | 300＄ |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Manufacture: | Gear Shapping | Module: | 1.5 |
|---|---|---|---|
| Gear Profile: | Internal Gear | Pressure Angle: | 20 Degrees |
| Accuracy Grade: | ISO 8-9 Grade | Heat Treatment: | Hardened |
| Highlight: | Space Saving Internal Spur Gear,Precise Internal Spur Gear,Customized Internal Spur Gear |
||
1)Descriptions of Internal Gear

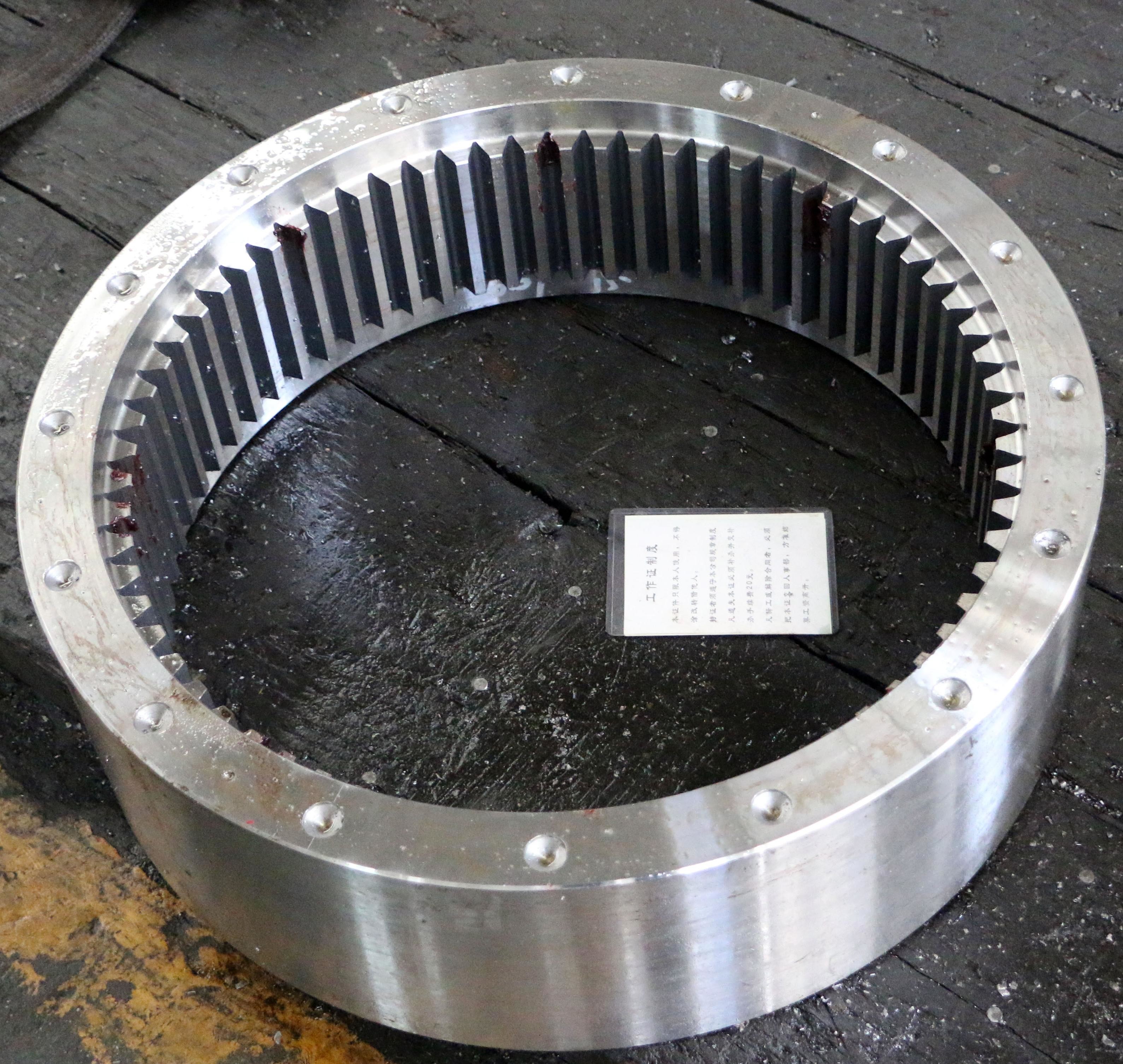

Internal spur gears refer to gears whose teeth are distributed on the inner surface of a cylinder or cone (i.e., internal gears),
with a straight tooth profile (parallel to the axis), and they are usually engaged in transmission with external gears.
2)Features of Internal Gear
a) The tooth groove is on the inner side, and the tooth tip points towards the center. The meshing mode with the outer gear is opposite.
b) The straight tooth design makes the processing relatively simple and is suitable for standardized production.
3)Advantages of Internal Gear
a) Compact structure: Internal meshing saves space and is suitable for applications requiring small-sized transmissio.
b) High transmission efficiency: The friction loss in straight gear meshing is small, and the efficiency can reach over 95%.
| Products | Internal Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | If needed |
| Module (M) | 0.5-25 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0 |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
