| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 200 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Gear Profile: | Gleason Type | Tooth Profile: | Spiral |
|---|---|---|---|
| Teeth Number: | 12 | Tooth Angle: | 15° |
| Profile Type: | Gleason | Application: | Power Transmission |

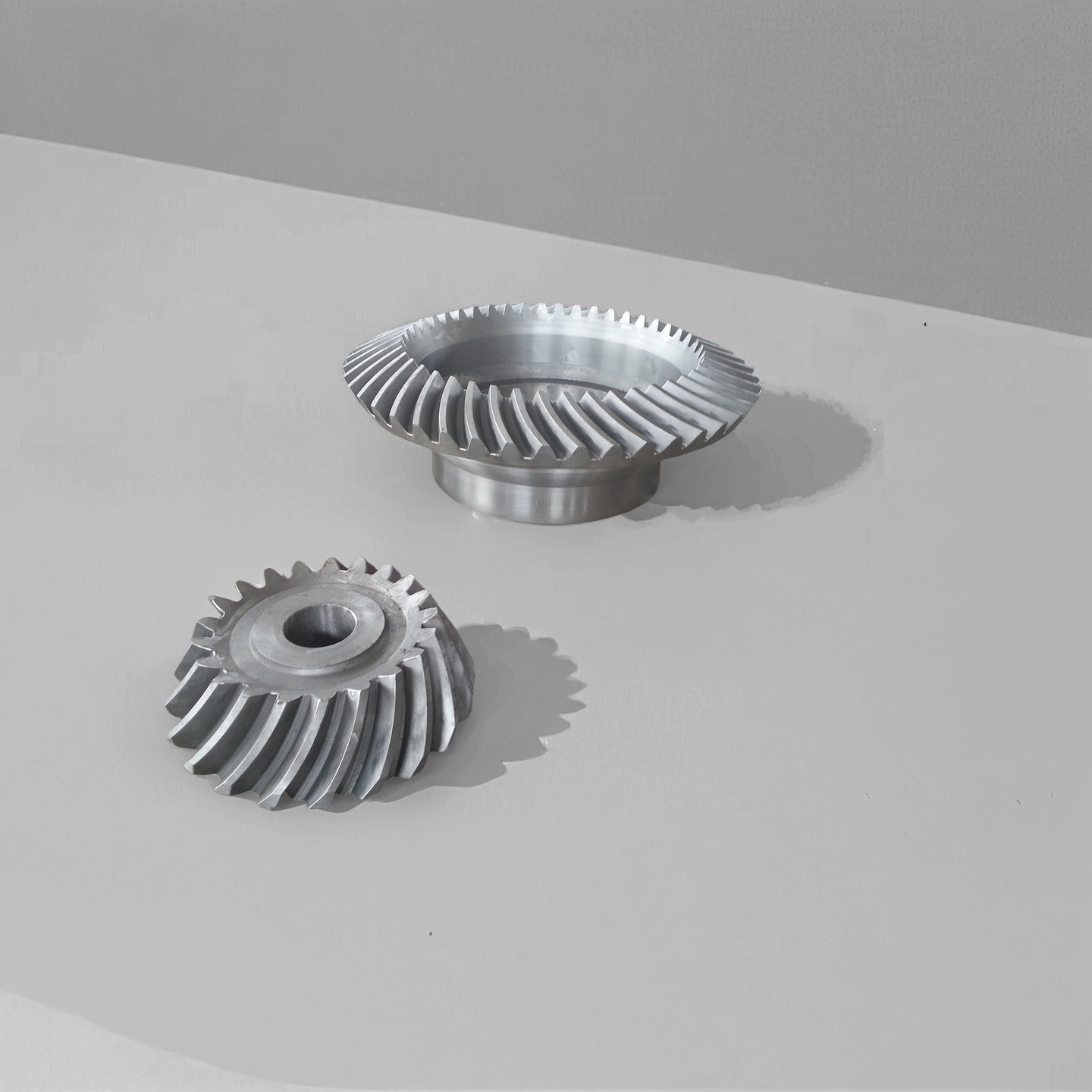

1) Descriptions of Spiral Bevel Gear
Spiral bevel gears are an important power transmission component in mechanical equipment.
They are composed of bevel gears with a helical tooth surface and require proper maintenance to ensure their performance.
2) Features of Spiral Bevel Gear
a) Lubrication requirements: There are clear requirements for the quality of lubricating oil and the lubrication cycle.
Appropriate lubrication can reduce tooth surface wear.
b) Wear monitoring: The condition of tooth surface wear can be detected by professional instruments.
The wear state affects the transmission performance.
3) Advantages of Spiral Bevel Gear
a) With proper lubrication, the lifespan of gears is prolonged, reducing the frequency of replacements and costs.
b) It is convenient for monitoring wear, enabling timely detection of potential problems, preventing faults in advance,
and ensuring the safety of equipment operation.
| Products | Spiral Bevel Gears |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Manufacturing | Gear Milling & Gear Teeth Grinding |
| Teeth Grinding | √ |
| Module (M) | 16 |
| Number of Teeth (Z) | 32 |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
