Precision Gear Milling and Teeth Grinding for Smooth Operation of Spiral Bevel Gears

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Minimum Order Quantity: 200 Sets
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Month
Detail Information
Finish Gridning: Gear Grinding Type: Spiral Bevel Gear
Material: Steel Helix Angle: 15°
Module: Customized Size: Customized
Highlight:

Teeth Grinding Spiral Bevel Gears

,

Smooth Operation Spiral Bevel Gears

,

15° Helix Angle Spiral Bevel Gears


Product Description

1) Descriptions of Spiral Bevel Gear

Spiral bevel gears are gears with helical tooth surfaces, used for power transmission between two intersecting shafts.

They have unique performance in terms of cost and efficiency.

2) Features of Spiral Bevel Gear
a) Lubrication requirements: There are clear requirements for the quality of lubricating oil and the lubrication cycle.

    Appropriate lubrication can reduce tooth surface wear.
b) Wear monitoring: The condition of tooth surface wear can be detected by professional instruments.

    The wear state affects the transmission performance.

3) Advantages of Spiral Bevel Gear

a) Although the initial investment is large, the efficient power transmission reduces energy consumption and saves operating costs.
b) The long service life reduces the downtime losses and maintenance costs caused by frequent replacements,

    and the overall benefits are significant.



Products Spiral Bevel Gears
Custom Made
Gear Profile Type Gleason
Manufacturing Gear Milling & Gear Teeth Grinding
Teeth Grinding
Module (M) 16
Number of Teeth (Z) 32​
Pressure Angle (α) 20°
Lead Angle 15°
Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

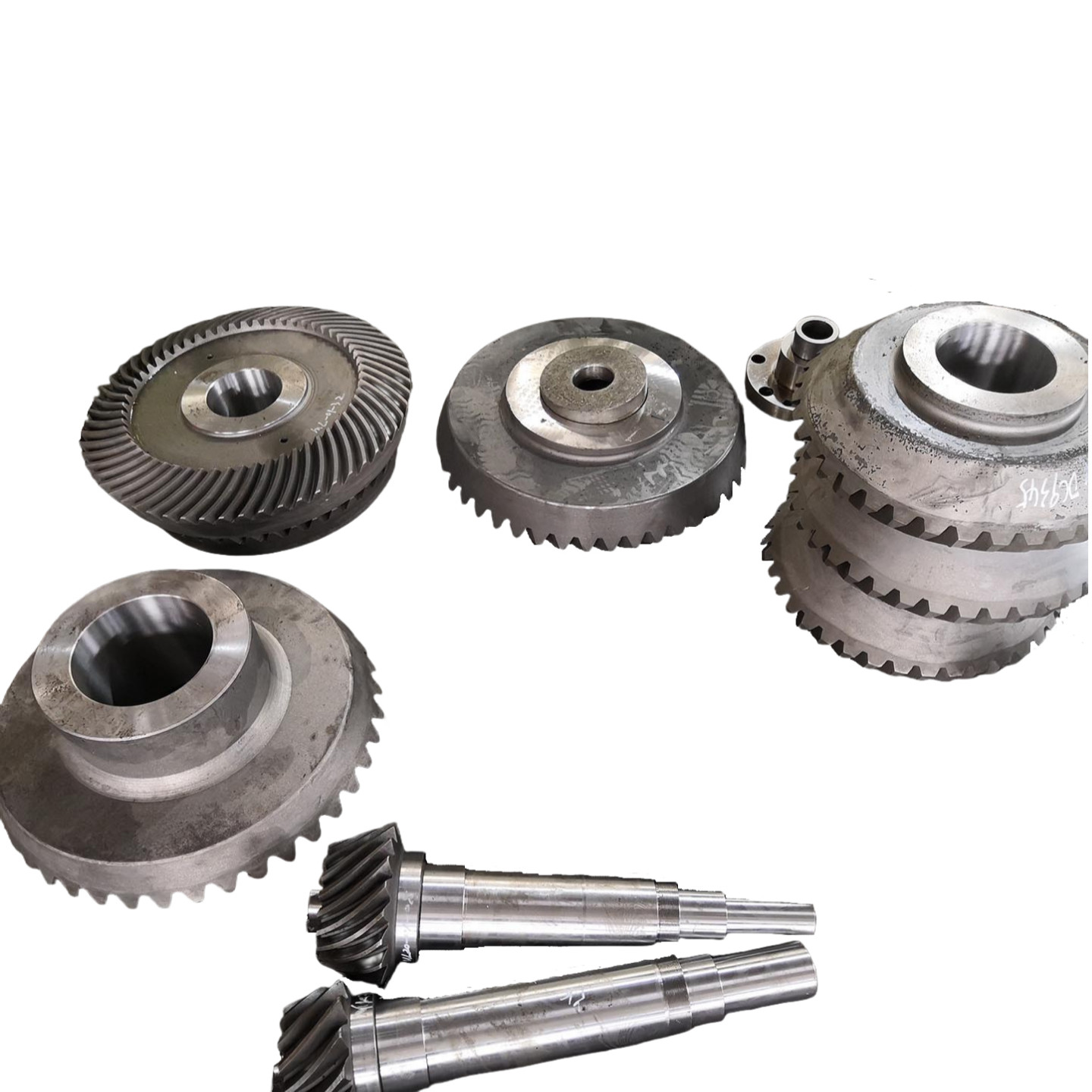

Precision Gear Milling and Teeth Grinding for Smooth Operation of Spiral Bevel Gears 0

Precision Gear Milling and Teeth Grinding for Smooth Operation of Spiral Bevel Gears 1
