Manufacture Processing: | Gear Grinding | Number Of Teeth: | Depends On Size |
---|---|---|---|
Gear Profile: | Gleason Type | Gear Type: | GleasonKlingberg |
Steel Type: | Forging Steel | Pressure Angle: | 20 Degrees |
Highlight: | Teeth Grinding Spiral Bevel Gears,Forging Steel Spiral Bevel Gears,Precision Spiral Bevel Gears |

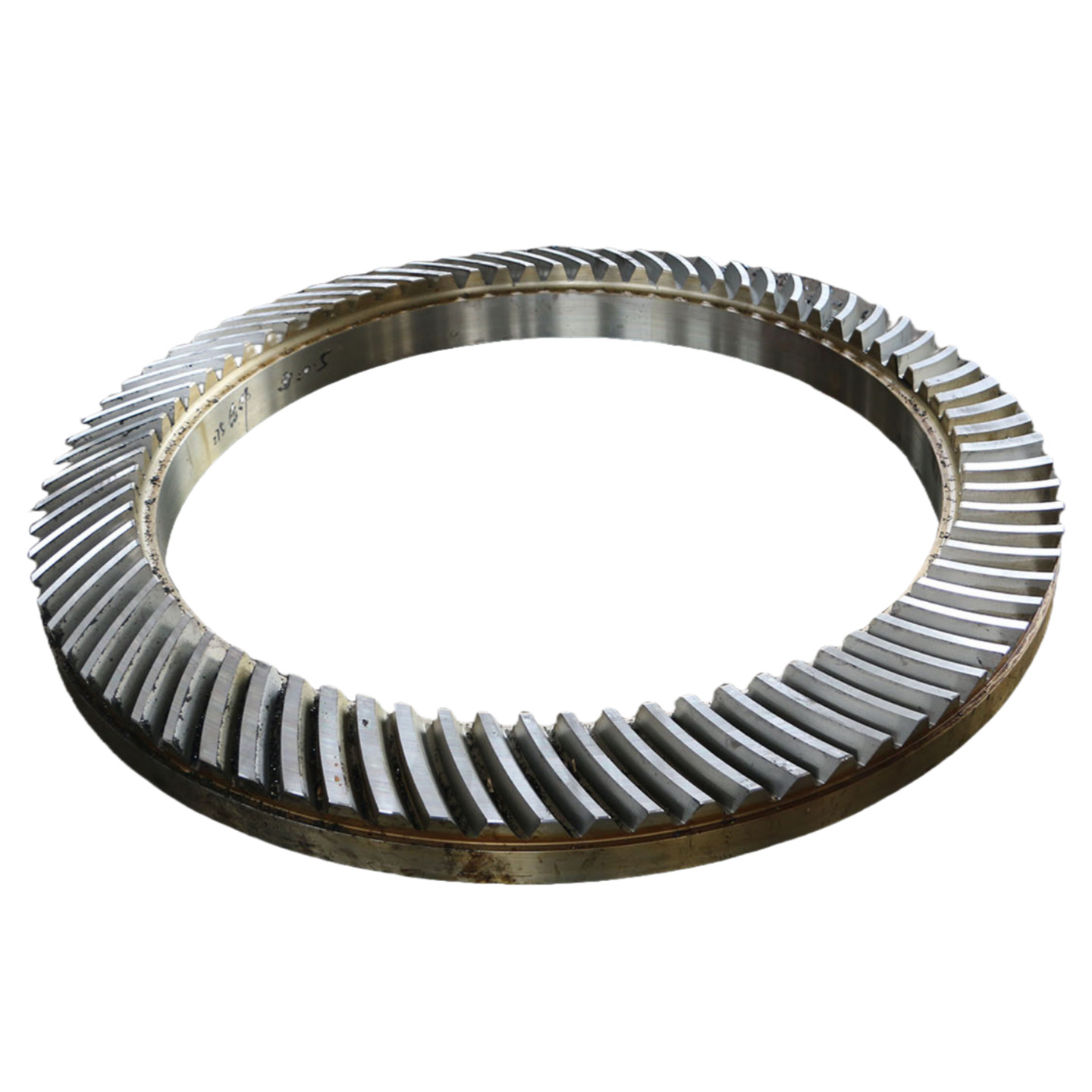

1) Descriptions of Spiral Bevel Gear
Spiral bevel gears, as a key product in the mechanical transmission market, achieve power transmission
between two intersecting shafts through their spiral tooth surfaces and are competitive in the market.
2) Features of Spiral Bevel Gear
a) Technical Advantage: Possessing mature manufacturing technology and patents,
it outperforms some similar products in terms of transmission performance.
b) Brand Effect: The well-known brand's spiral bevel gears, due to their quality and reputation, have a significant market share.
3) Advantages of Spiral Bevel Gear
a) The technical advantages enable it to meet the demands of high-end equipment and expand the market space.
b) The brand influence brings customer trust, promotes product sales, consolidates market position, and maintains competitive advantage.
Products | Spiral Bevel Gears |
Custom Made | √ |
Gear Profile Type | Gleason |
Manufacturing | Gear Milling & Gear Teeth Grinding |
Teeth Grinding | √ |
Module (M) | 16 |
Number of Teeth (Z) | Custom |
Pressure Angle (α) | 20° |
Lead Angle | 15° |
Accuracy Grade | ISO 6 Grade |
Heat Treatment | Carburizing |
Surface Hardness | 58-62HRC |
STEEL CODE GRADES COMPARISON | |||||
CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
45 | C45E4 | 45 | 1045 | S45C | CK45 |
40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
20CrMnTi | 18XГT | SMK22 | |||
20Cr2Ni4 | 20X2H4A | ||||
20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
