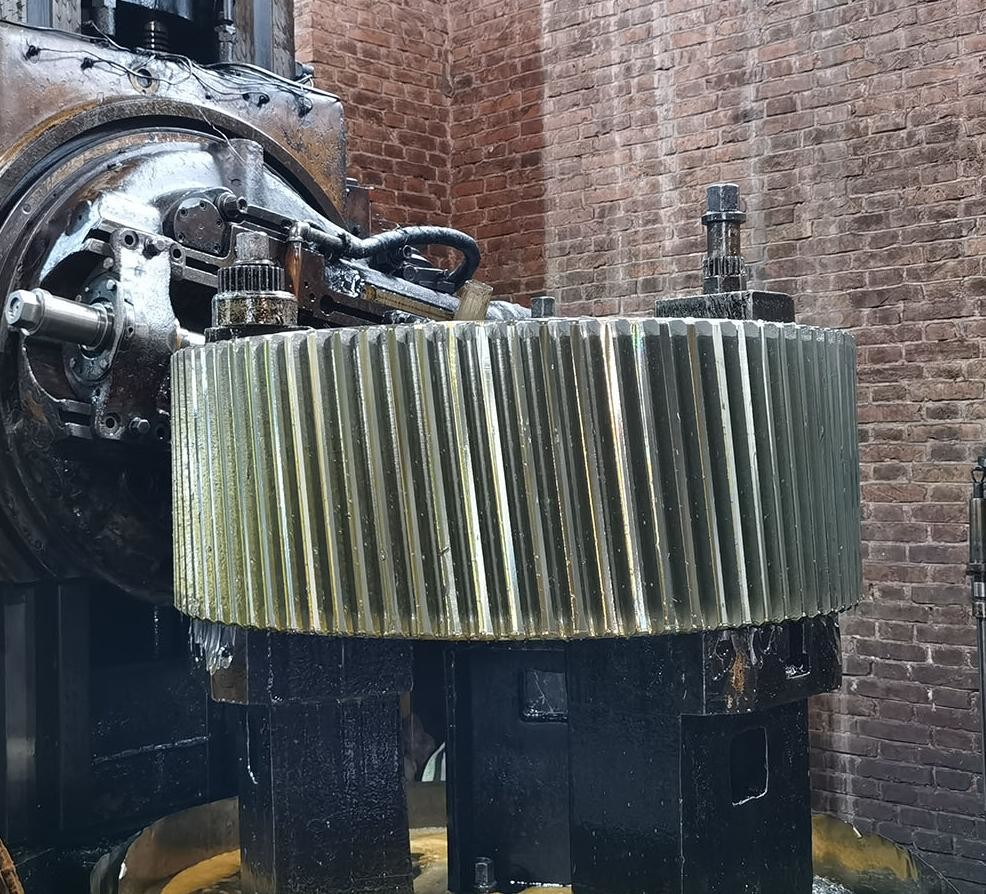

Stable Power Transmission with Single Helical Gear for Automated Production Lines

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Minimum Order Quantity: 1 Sets
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Month
Detail Information
Gear Heat Treatment: Quenching,Tempering,Carburizing Helix Angle: 23°
Gear Grinding: Profile Grinding Direction: Right Hand
Innder Diameter: 850mm Oem Service: Accepted
Highlight:

Automated Production Lines Single Helical Gear

,

Automated Production Lines Helical Gear

,

Stable Power Transmission Single Helical Gear


Product Description

1) Descriptions of Helical Gear

The gears that transmit power and change motion through helical tooth profiles are called helical gears.

During their operation, the contact between the teeth is of the line contact type.

2) Advantages of Helical Gear
a) Stable transmission ratio: During the transmission process, due to the special shape of the gear teeth of helical gears,

    the transmission ratio can be ensured to remain constant, achieving precise speed and torque transmission.
b) Axial force: During the transmission, helical gears will generate axial forces. By reasonably designing

    and installing thrust bearings and other measures, this force can be effectively utilized or counteracted,

    optimizing the performance of the transmission system.

3) Applications of Helical Gear

It is indispensable in equipment that requires precise transmission ratios, such as clocks, instruments,

and automated production lines; at the same time, in large-scale power transmission equipment,

by reasonably controlling the axial component forces, efficient and stable power transmission can be achieved.

Products Helical Gears
Custom Made
Gear Profile Type Cylindrical Gear
Manufacturing Gear hobbing
Teeth Grinding
Module (M) 9
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Lead Angle 20°
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
