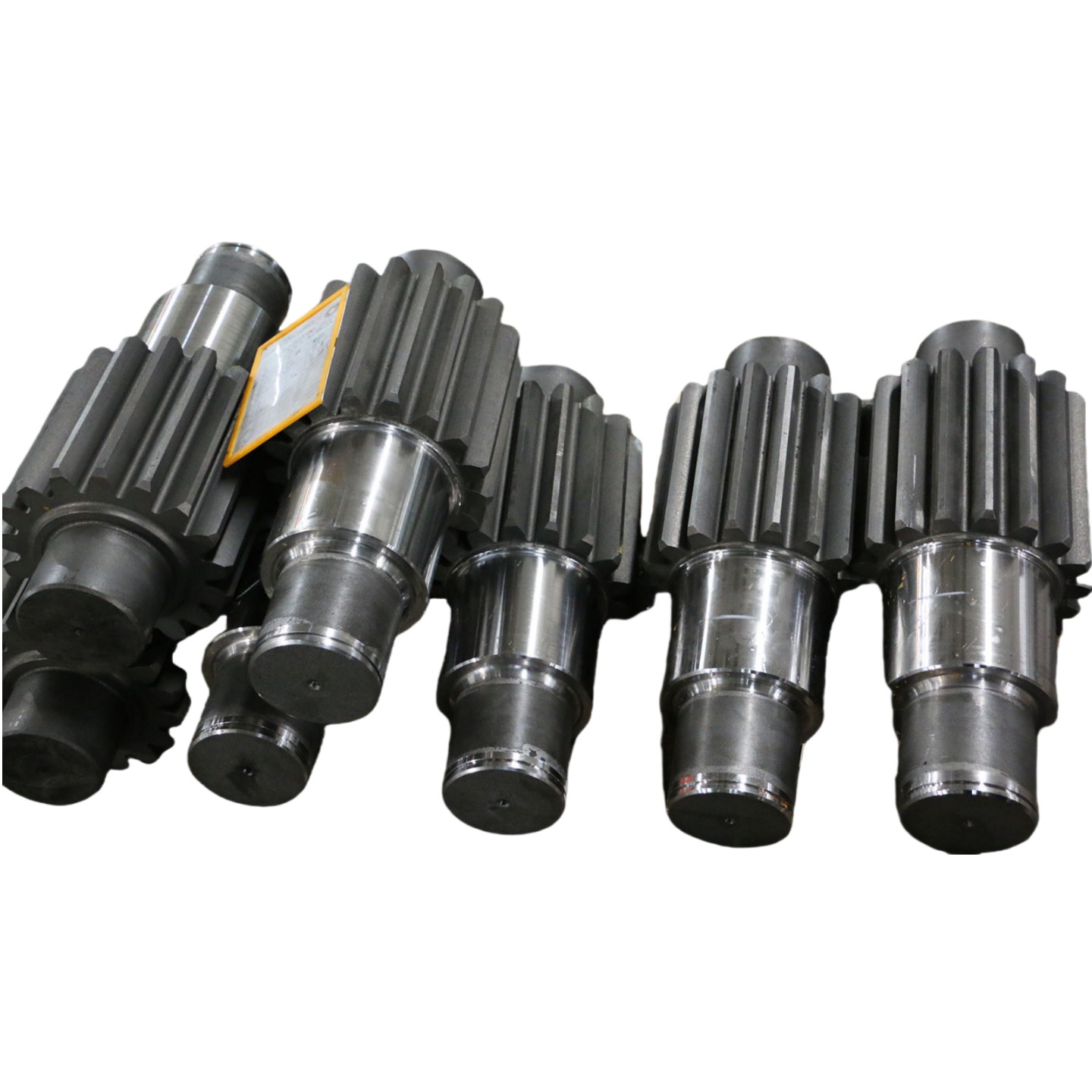

Gleason Gear Profile Type Transmission Gear Shaft for Power Transmission in Automobiles

1) Descriptions of Transmission Gear Shaft

Transmission gear shaft is a kind of gear and shaft through the key connection, interference fit and other ways to

combine the mechanical transmission components, is to achieve the core components of the power transmission and movement conversion.

2) Features of Transmission Gear Shaft

a) Compact structure: integrating gears and shafts reduces the number of parts and the overall space occupied.

b) High transmission efficiency: gear meshing transmission, energy loss is small, generally up to more than 98%.

c) Stable transmission ratio: through the precise design of the number of gear teeth, a stable transmission ratio

    can be achieved to ensure the accuracy of the movement.

3) Working Principle of Transmission Gear Shaft

The power input shaft drives the gears to rotate, and through the meshing between the gears,

the torque is transmitted to the output shaft to achieve the conversion of different speeds and torque,

for example, in the automobile transmission, different gear combinations can achieve the function of different gear shifts.

4) Application of Transmission Gear Shaft

Widely used in automobiles, machine tools, engineering machinery, aerospace and other fields,

such as power transmission between automobile engines and gearboxes, and variable speed transmission of machine tool spindle boxes.
