Precision Spiral Bevel Gears Achieving Optimal Performance with Materials and Advanced Manufacturing

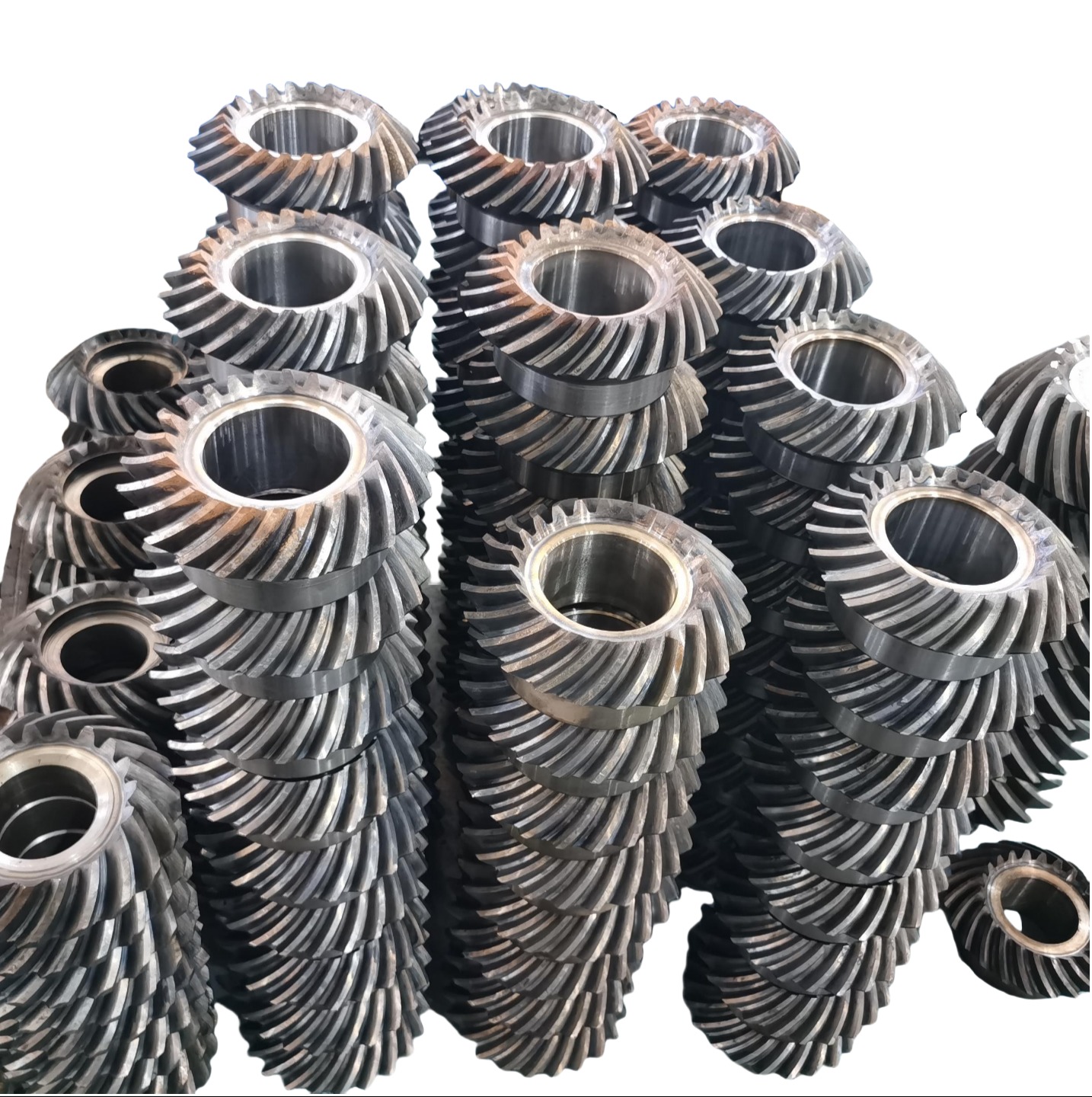

1) Description of Spiral Bevel Gear

Spiral bevel gears are mechanical components made from specific metallic materials through complex manufacturing processes,

designed to achieve high-precision and high-strength power transmission.
2) Feature of Spiral Bevel Gear

• High-quality Materials: Alloy steels such as 20CrMnTi and 20CrNiMo are commonly selected. After heat treatments like carburizing and quenching, the surface of the gear acquires high hardness while the core maintains good toughness, endowing it with excellent comprehensive mechanical properties.
• High Manufacturing Precision: Advanced processes including CNC machining and gear grinding are employed to ensure the tooth profile accuracy and tooth surface quality of the gears, enhancing the accuracy and reliability of transmission.
• Strong Durability: Thanks to the high-quality materials and precise manufacturing techniques, spiral bevel gears exhibit excellent wear resistance and fatigue strength, ensuring a long service life.

3) Working Principle of Spiral Bevel Gear

The material properties and precision imparted during the manufacturing process enable spiral bevel gears to withstand high loads

and complex stress conditions during operation. By relying on the strength and toughness of the materials, they resist deformation and damage,

and achieve accurate meshing transmission through their precise tooth profiles.

4) Application of Spiral Bevel Gear

Spiral bevel gears are widely used in fields with stringent requirements for gear strength and durability, such as mining machinery,

metallurgical equipment, and heavy-duty trucks, as well as in precision instruments and equipment that demand extremely high transmission accuracy.
