| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 200 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Direction: | Left-Hand | Modue: | Custom |
|---|---|---|---|
| Surface Finish: | Ground | Tooth Profile: | Spiral |
| Steel Type: | Forging Steel | Manufacture Type: | Gear Milling |
| Highlight: | Custom Made Spiral Bevel Gears,Spiral Bevel Gears for Medical Equipment,Medical Equipment Spiral Bevel Gears |
||
1) Description of Spiral Bevel Gear
A type of bevel gear that reduces noise through helix angle design.
2) Features of Spiral Bevel Gear
a) The meshing impact is reduced by more than 30% compared to straight bevel gears.
b) The high - frequency noise spectrum is smoother.
3) Working Principle of Spiral Bevel Gear
Multiple teeth mesh simultaneously to disperse the impact energy and suppress the propagation of vibrations.
4) Application of Spiral Bevel Gear
Drive axles of electric vehicles, precise transmissions of medical equipment.
| Products | Spiral Bevel Gears |
| Custom Made | √ |
| Gear Profile Type | Gleason |

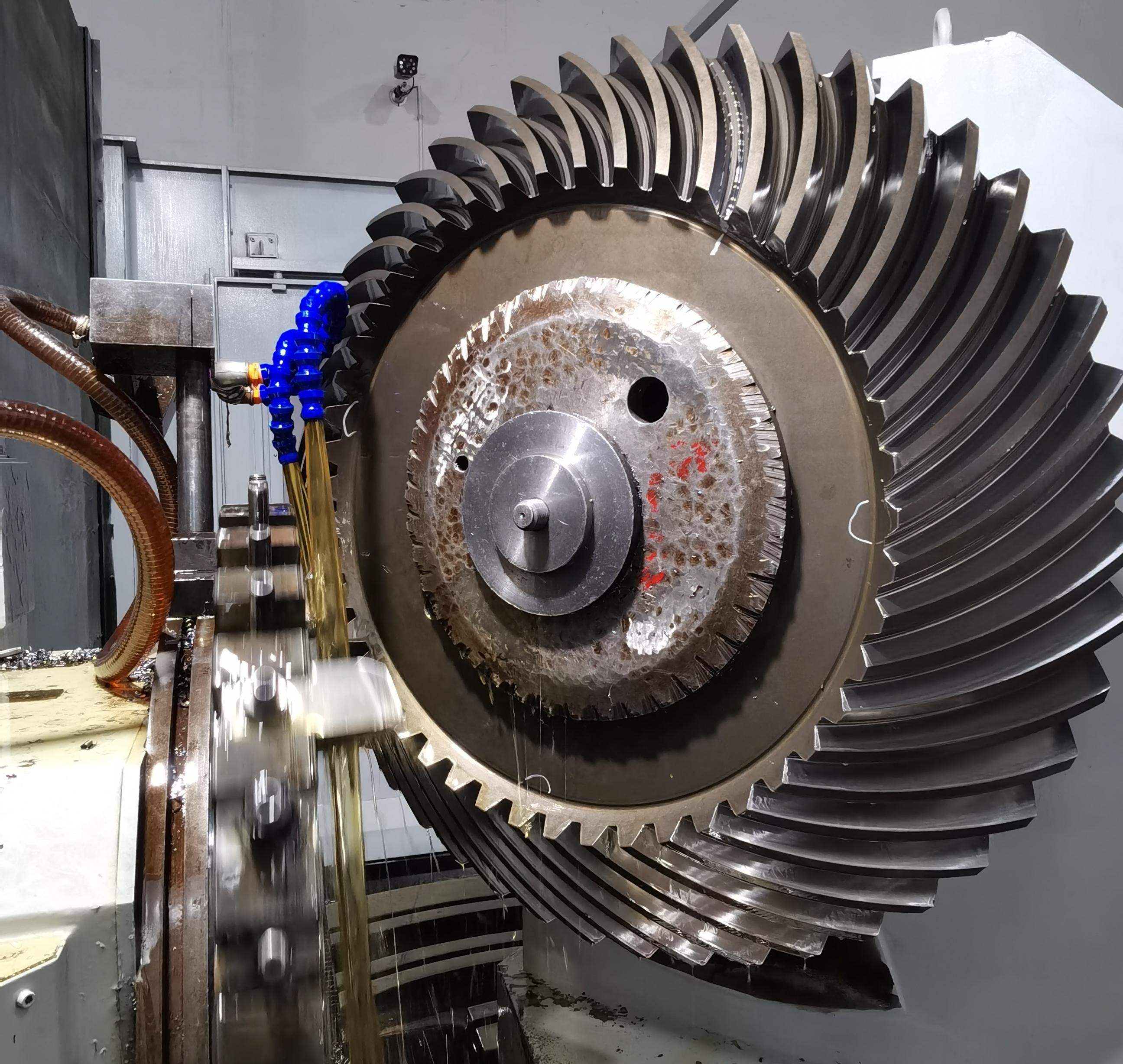

| Manufacturing | Gear Milling & Gear Teeth Grinding |
| Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
Forging Machining Cutting
Heat Treatment Grinding Inspection
