| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 20 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 35 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Type: | Manual | Profile One: | Spur Gear |
|---|---|---|---|
| Accuracy Grade: | ISO 7 Grade | Compatible Vehicle Type: | Mining Equipment |
| Dimension: | As Sample Or Drawing | ||
| Highlight: | compact transmission gear shaft,high precision gear shaft,efficient transmission gear shaft |
||

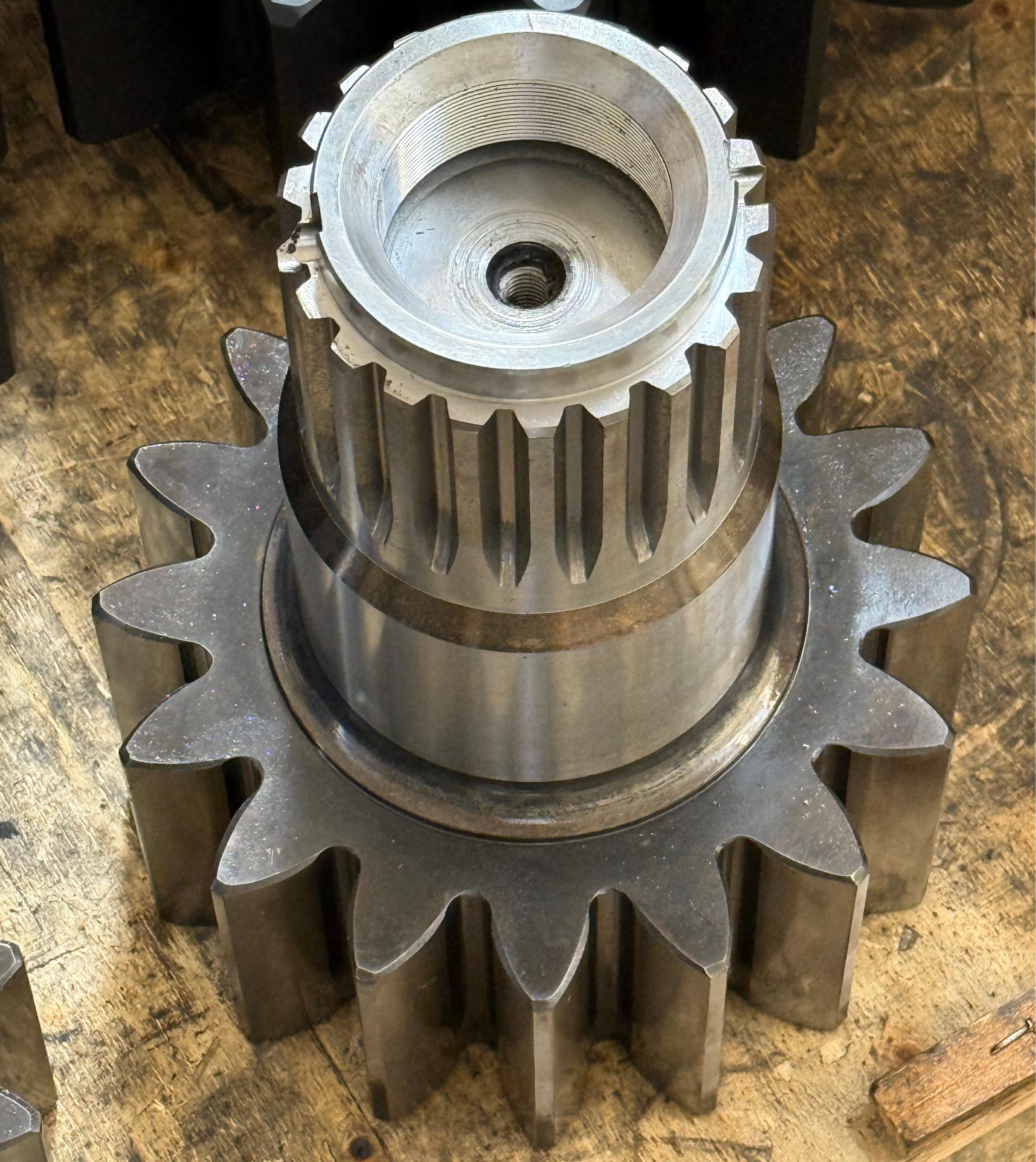

From a structural and functional integration perspective, a transmission gear shaft is a drive component designed
and manufactured as an integrated unit combining gears and shafts, enabling dual functions of power transmission
and torque bearing without requiring additional connecting components.
Its defining features include a compact structure and high degree of integration, with no relative movement clearance
between the gear and shaft body. Key advantages encompass robust transmission rigidity, high power transmission efficiency
(achieving 96%-99%), effective reduction of transmission errors caused by assembly clearance, space-saving installation,
and simplification of the overall transmission system structure.
The drive gear shaft is secured to the equipment frame via support structures (e.g., bearings) at both ends.
When the drive-end gear shaft rotates, its teeth engage with the driven gear or gear shaft. Through the forces acting
between the tooth surfaces, rotational motion and torque are transmitted directly via the shaft to the next transmission component.
The integrated structure eliminates sliding or loosening losses between the gear and shaft.
Suitable for equipment requiring compact design and high transmission precision, such as main and secondary shafts
in automotive gearboxes, feed transmission gear shafts in precision machine tools, crankshaft gear shafts in motorcycle engines,
and transmission gear shafts in robotic joints.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
