| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GB22112301 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1000/ Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C,T/T,Western Union,D/P |
| Supply Ability: | 150 Sets/Month |
| Material: | 17CrNiMo6 | Type: | Planetary Gearbox |
|---|---|---|---|
| Tooth Profile: | Spur Gear & Internal Gear | Hardness: | 58-62 HRC |
| Applications: | Mining Equipment | Color: | Blue |
| Highlight: | Mining Roadheader Planetary Gear Box |
||
| Attribute | Value |
|---|---|
| Material | 17CrNiMo6 |
| Type | Planetary Gearbox |
| Tooth Profile | Spur Gear & Internal Gear |
| Hardness | 58-62 HRC |
| Applications | Mining Equipment |
| Color | Blue |

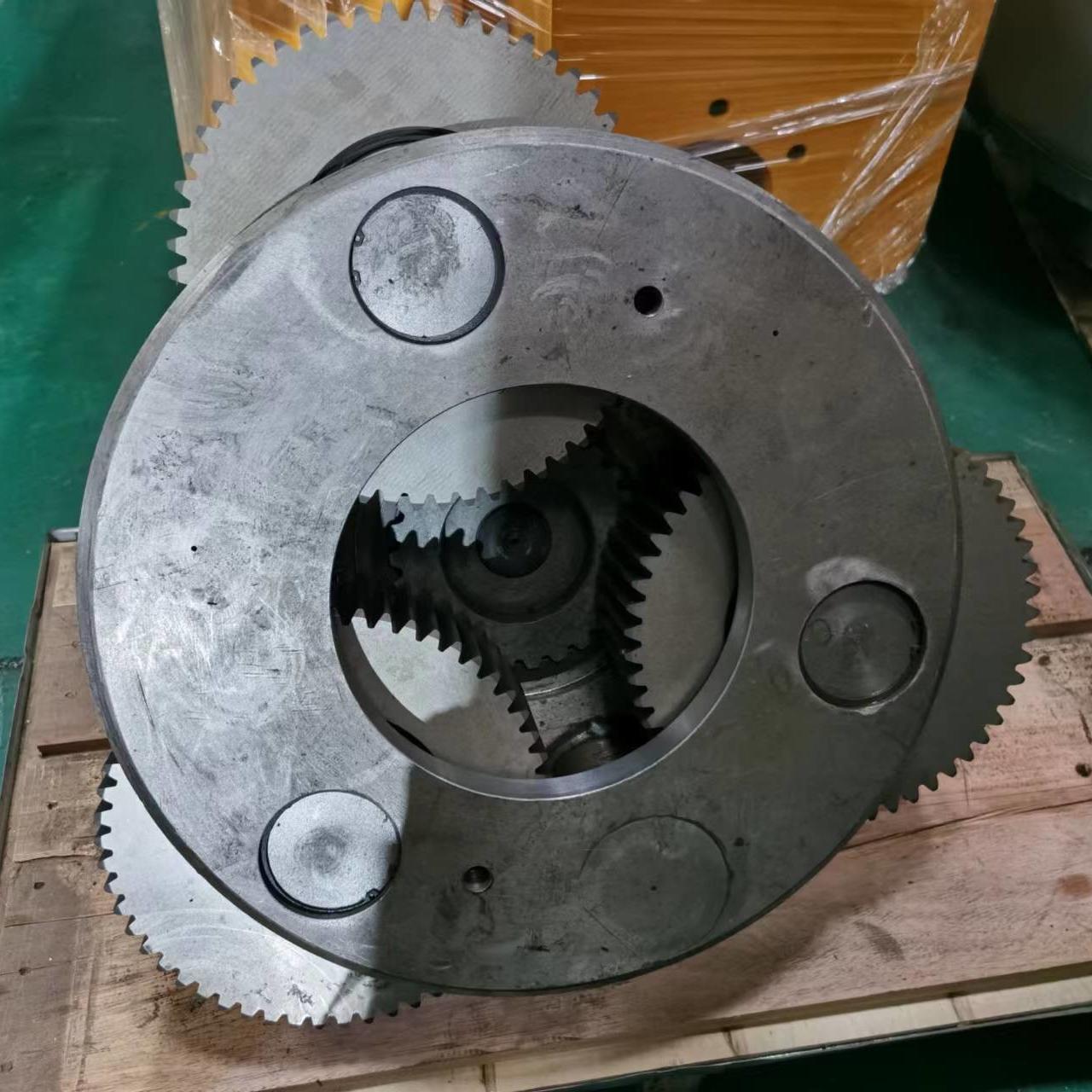

Planetary Gear Box With Three Planet Gears For Mining Roadheader Equipment
A planetary gearbox is designed to transfer the largest torque in the most compact form (known as torque density).
High efficiency due to low rolling power. Almost unlimited transmission ratio options through combination of multiple planet stages. Suitable as planetary switching gear by fixing specific parts of the gearbox.
| Products | Gear Box/Gear Reducer |
|---|---|
| Custom Made | √ |
| Profile Type | Helical Gear/Double Helical Gear |
| Manufacturing | Gear Hobbing/Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20°/14.5° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing/Cement Quenching/Nitriding |
| Surface Hardness | 58-62 HRC |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
