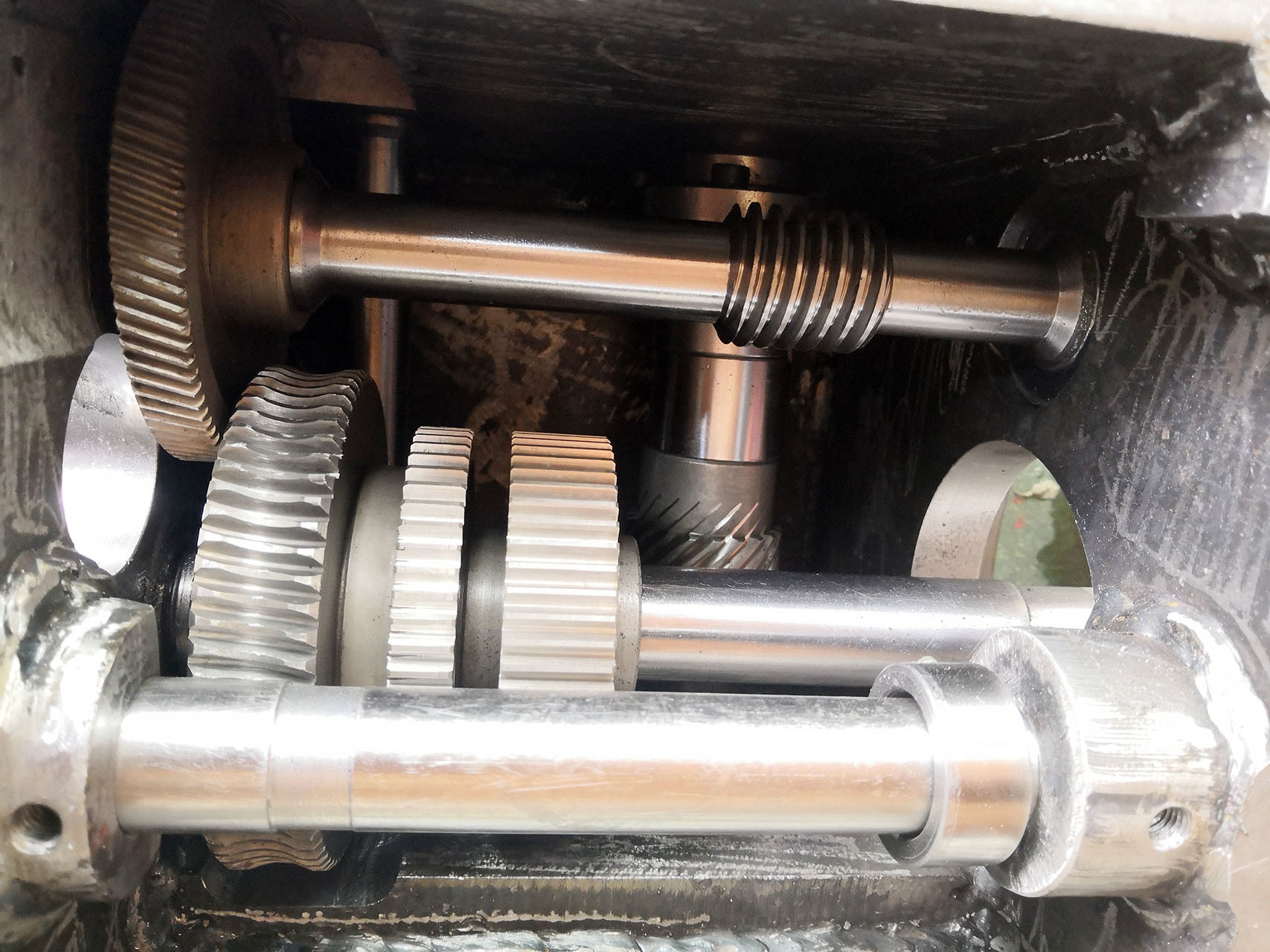

Helical Gear Worm Gear Reducer Gear Box 3600 RPM Speed Reduction

Helical Gear and Worm Gear Rated 3600 RPM Speed Reducer Gear Box

1) Speed Reduction of Speed Reducer/ Gear Box

a) Gear Ratio

The gear ratio is a measurement of how different gear sizes interact to transfer energy. The measurement

of a circle, which is a major component of gears, is the most important portion of this computation.

Examining the circumference of a circle might help you understand how to calculate the gear ratio.

b) Driver Gear

The driving gear is the equipment that provides the energy (often called the driver).

The majority of mechanical systems require the use of gears. Gears are wheel-like revolving objects

with teeth around their rims. One gearwheel transfers turning motion and force to the other as the gears

rotate together. In a mechanical system, gears are used to transport energy. Gear trains of two or more

wheels work together to transfer rotary motion and force from one part of a complex machine to another.

c) Driven Gear

The driven gear is the gear to which the force is directed (often called the follower).

Regardless of how many gears are in the series, they are the biggest of the gear set and come

in a variety of designs.
