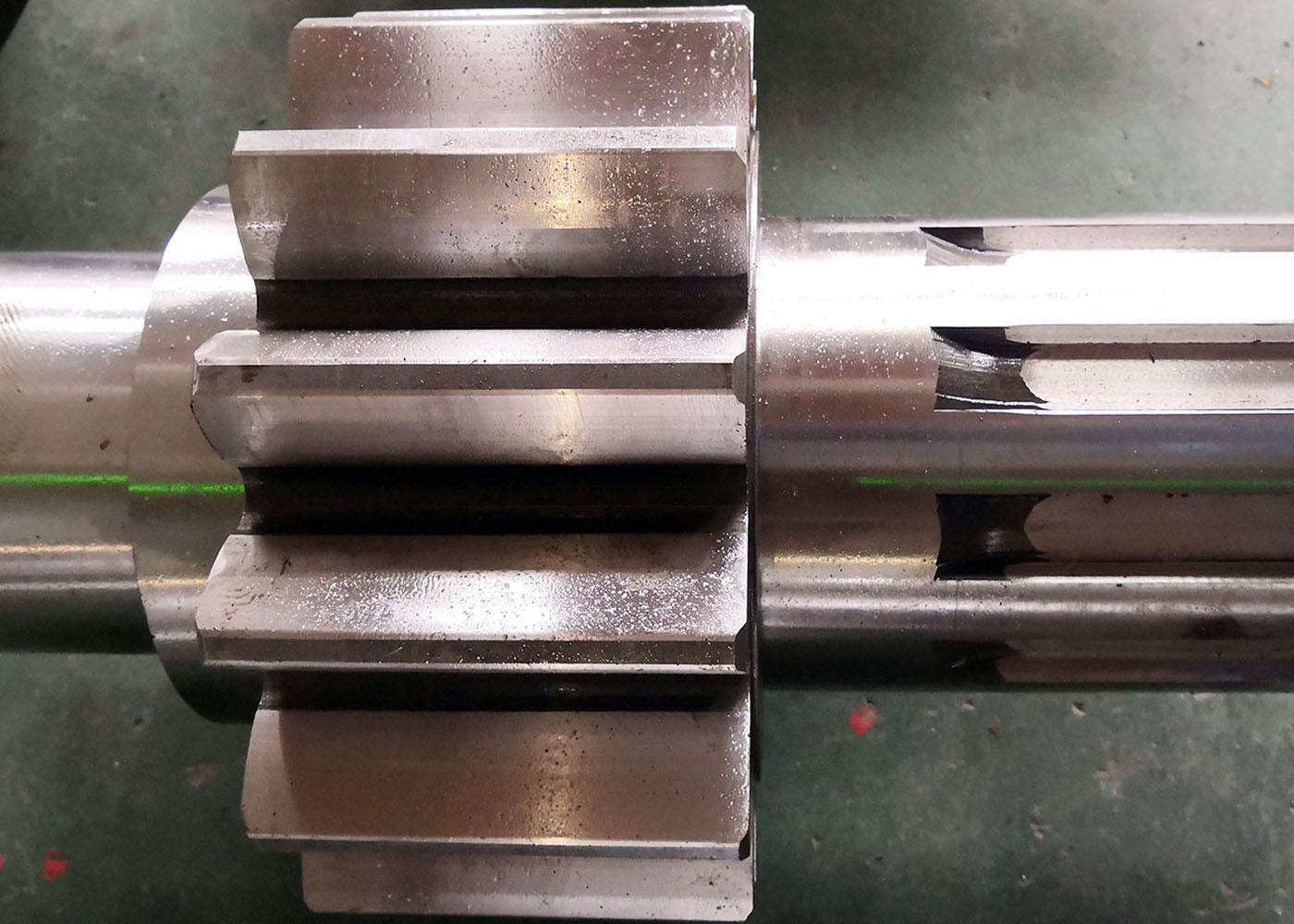

Carburizing Transmission Gear Shaft Spline Shafts For Gear Reducers

Place of Origin	CHINA
Brand Name	YIZGEAR
Model Number	GS2207001

Product Details

Material:

20Cr2Ni4

Heat Treatment:

Carburizing

Hardness:

58-62 HRC

Quality Grade:

ISO 6-7 Grade

Profile Type:

Cylindrical Gear

Length:

520mm

Highlight:

Carburizing Transmission Gear Shaft

gear Spline Shafts For Gear Reducers

Carburizing gear Spline Shafts

Payment & Shipping Terms

Minimum Order Quantity

5 Pieces

Price

$200.0/Piece

Packaging Details

Plywood Crate

Delivery Time

60 Days

Payment Terms

L/C, D/P, Western Union, T/T

Supply Ability

300 Pieces/Month

Product Description

Transmission Parts-Gear Shafts & Spline Shafts For Gear Reducers
1) Description of Transmission Parts
Gears and gear shafts are widely used in various types of machinery as a transmission component.
Types of Gears:

Spur and helical gears
Bevel Gears
Worm gears and hypoid gears

2)Characteristics of Spur Gear
The teeth are straight and parallel to the shaft axis. Transmit power and motion between rotating two parallel shafts.
Features:

Easy to manufacture.
There are no axial force.
Relatively easy to reach high-quality grade.

Technical Specifications

Parameter	Specification
Custom Made	Available
Gear Profile Type	Gleason
Manufacturing Process	Gear Milling/Gear Cutting/Gear Hobbing
Teeth Grinding	Included
Module (M)	Custom
Number of Teeth (Z)	Custom
Pressure Angle (α)	Custom
Lead Angle	Custom
Accuracy Grade	ISO 6 Grade
Heat Treatment	Carburizing
Surface Hardness	58-62HRC

Steel Code Grades Comparison

CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

Production Equipment

Carburizing Transmission Gear Shaft Spline Shafts For Gear Reducers 0

Manufacturing Process

Carburizing Transmission Gear Shaft Spline Shafts For Gear Reducers 1
