| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS2207001 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $300.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Material: | 20Cr2Ni4 | Heat Treatment: | Carburizing |
|---|---|---|---|
| Profile Type: | Spline | Manufacturing Process: | Spline Grinding |
| Hardness: | 58-62 HRC | Length: | 1730mm |
| Highlight: | ODM Rectangular Spline Shafts,1730mm Length Splined Shaft,OEM ODM Splined Shaft |
||

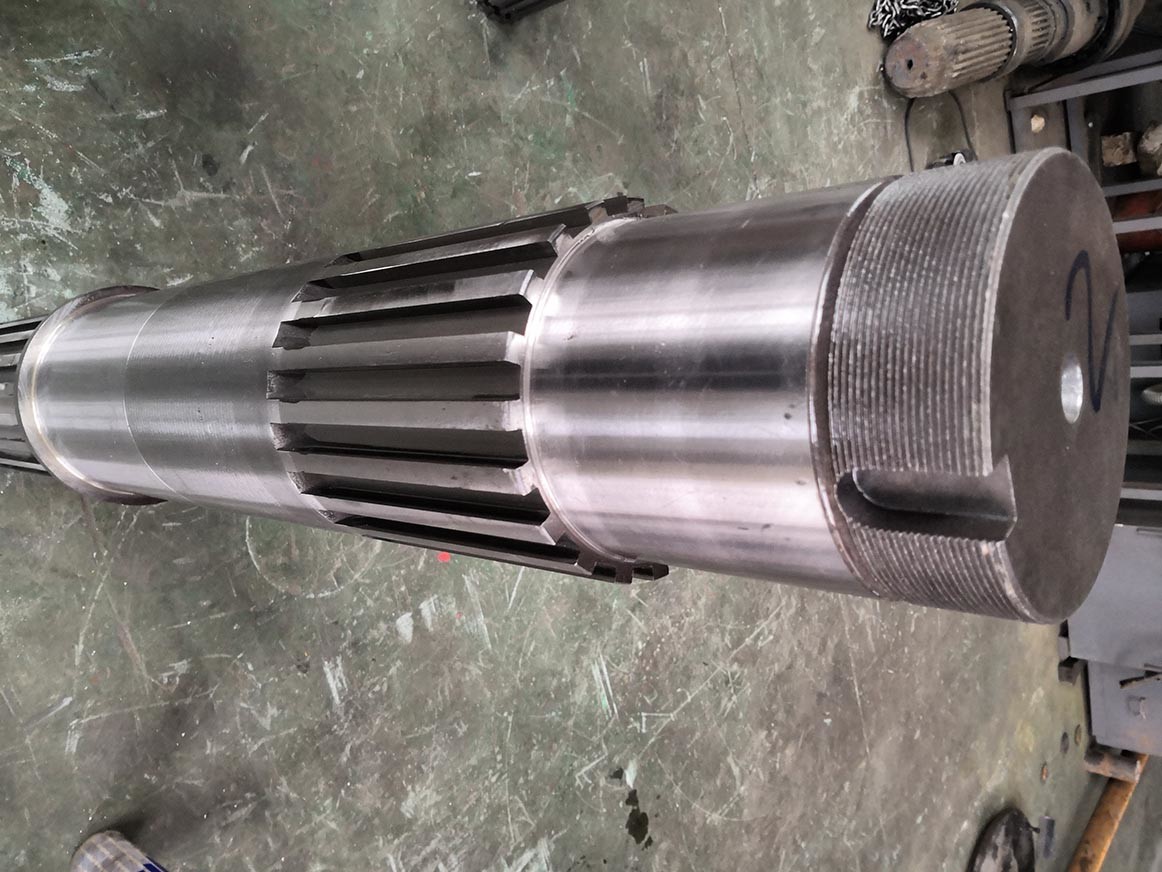

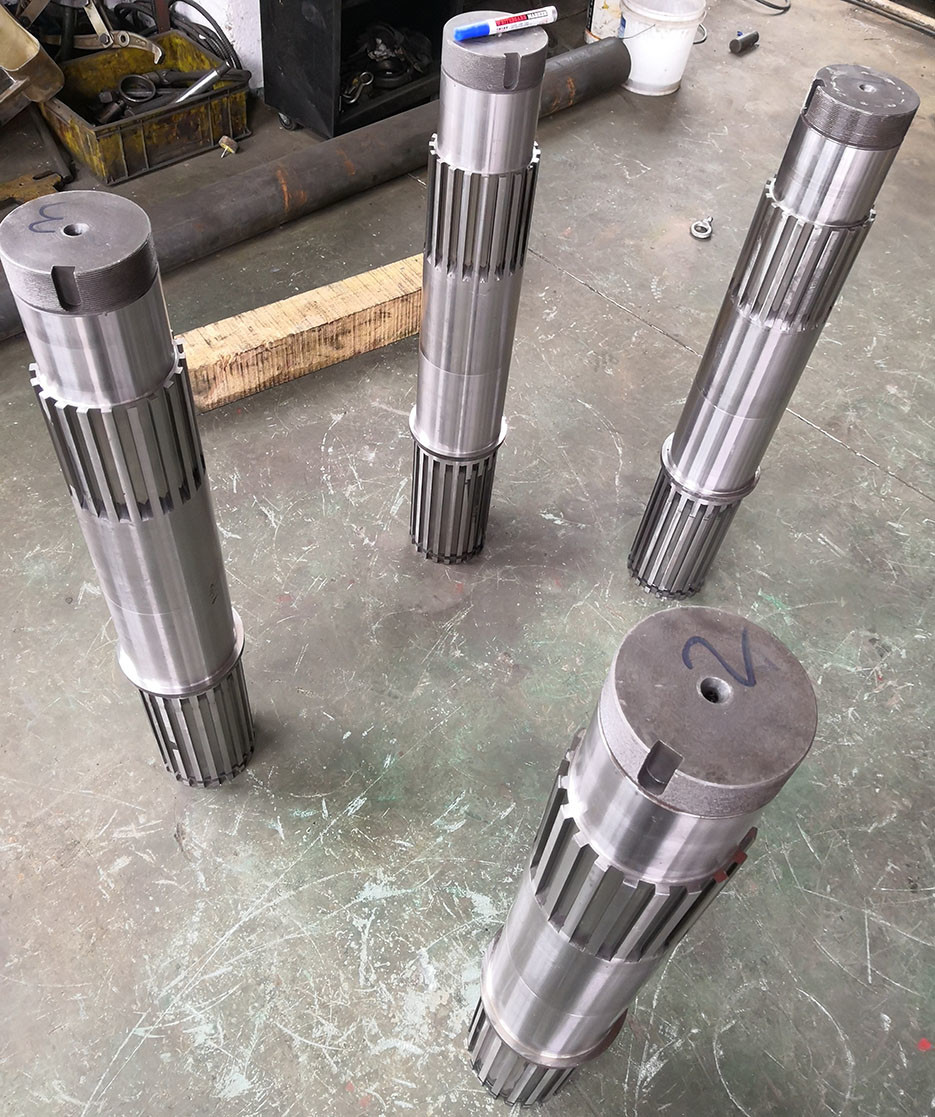

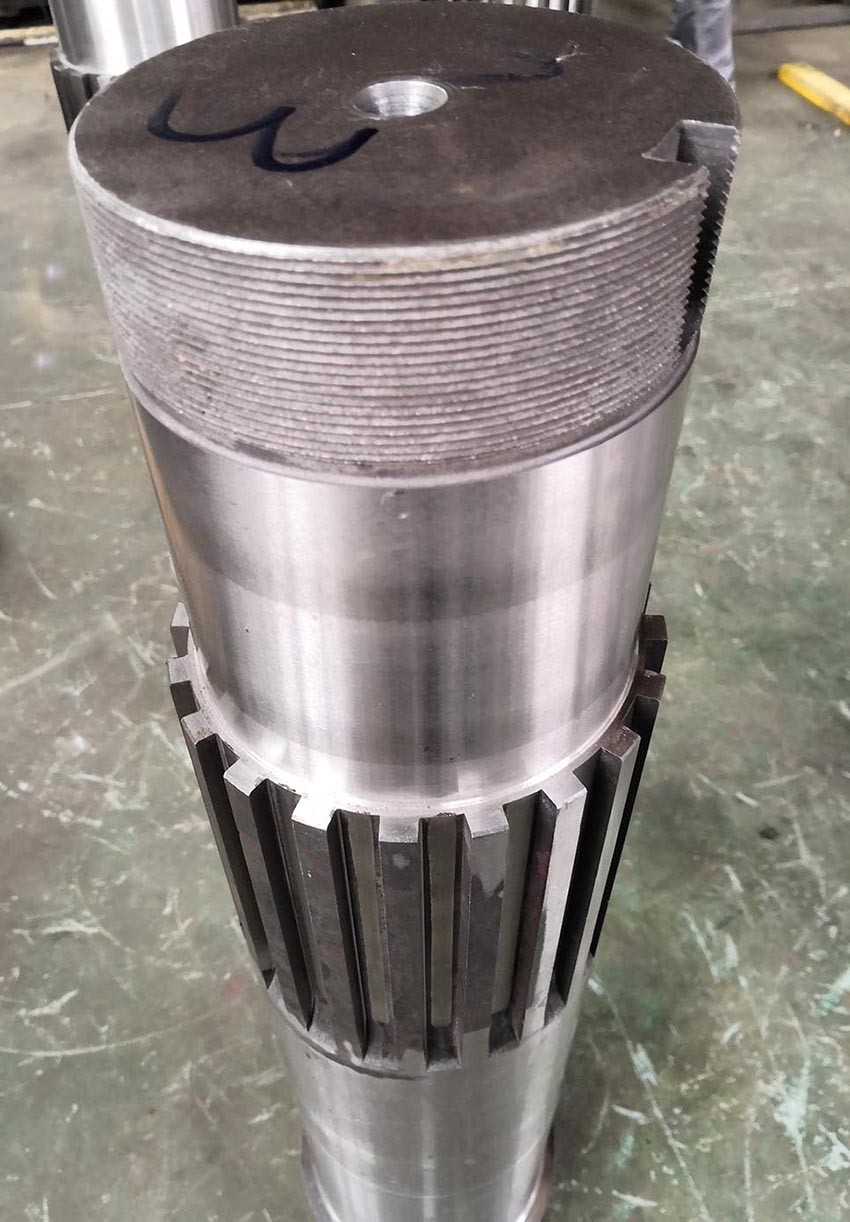

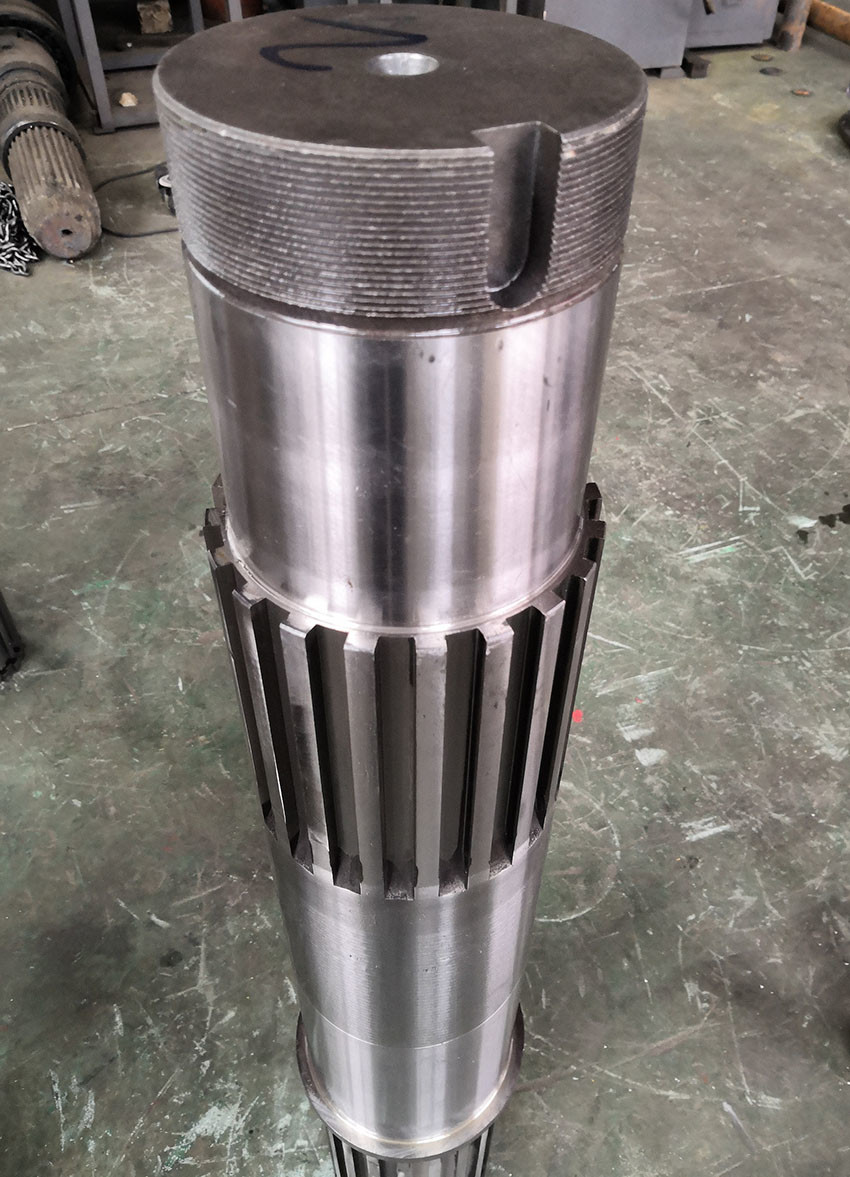

Customized Spline Grinding Rectangular Spline Shafts
1) Description of Spline Shaft
Splines are ridges or teeth on a drive shaft that matches with grooves in a mating piece and transfer
torque to it. Maintaining the angule correspondence between them.
2) Types of Spliens
a) Parallel key spline
b) Involute Spline
c) Crowned spline
d) Serrations
e) Helical Spline
| Products | Rectangular Spline Shafts |
| Custom Made | √ |
| Gear Profile Type | Spline |
| Gear Teeth manufacturing | Spline Milling |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 30° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
