| Place of Origin | CHINA |
| Brand Name | YIZGEAR |
| Model Number | HB2207003 |
| Attribute | Value |
|---|---|
| Profile Type | Herringbone Gear |
| Material | Forging Steel |
| Heat Treatment | Quenching & Tempering |
| Module | 25 |
| Pressure Angle | 20° |
| Brand | OEM |

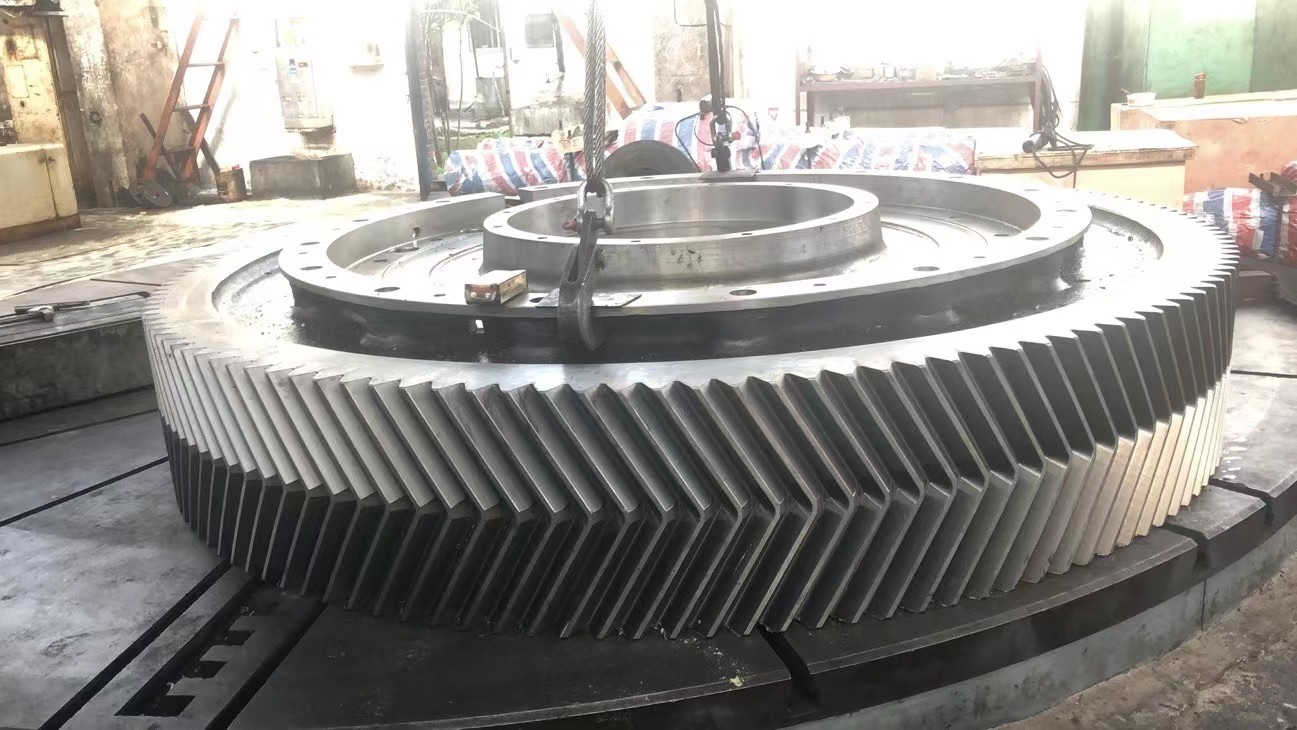

Like helical gears, herringbone gears have the advantage of transferring power smoothly. However, herringbone gears do not produce an additional axial load.
There is no central gap between the left-hand and right-hand helical gear. From the top, each helical groove of the herringbone gear looks like the letter V, and many together form a herringbone pattern.
| Products | Herringbone Gear |
|---|---|
| Custom Made | √ |
| Gear Profile Type | Herringbone |
| Gear Teeth Manufacturing | Gear Milling |
| Gear Teeth Grinding | Null |
| Module (M) | Custom |
| Number of Teeth (Z) | 125 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
