Herringbone Gears for High-Intensity Work Conditions and Wind Turbine Generators

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Minimum Order Quantity: 1 Sets
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Month
Detail Information
Gear Profile: Herringbone Gear Application: Power Transmission
Heat Treatment: Quenching & Tempering Helix Angle: 20°
Shape: Cylindrical Accuracy: High Precision
Highlight:

High Intensity Work Conditions Herringbone Gears

,

High Intensity Herringbone Gears

,

Wind Turbine Generator Herringbone Gears


Product Description

1)Description of Herringbone Gear

From the perspective of maintenance and upkeep, the herringbone gears are mechanical components

that require regular inspection, lubrication and repair to maintain good transmission performance.

2)Feature of Herringbone Gear

The structure is relatively complex, but the reasonable design makes it easy to disassemble and install.

High requirements are placed on lubrication conditions; an appropriate lubricant can reduce wear;

the wear condition can be evaluated through regular inspections of the tooth surface.

3)Advantage of Herringbone Gear

Reasonable maintenance can significantly extend the service life of gears and reduce equipment replacement costs;

regular maintenance can promptly identify potential problems and prevent major failures;

the maintenance operations are relatively standardized, which facilitates the formulation of standardized maintenance procedures.

4)Application of Herringbone Gear

In equipment such as port cranes and construction machinery, regular maintenance of the zigzag gears

ensures the normal operation of the equipment under high-intensity work conditions; in wind turbine generators,

proper maintenance can ensure the stable operation of the gearbox and improve the power generation efficiency.

Products Herringbone Gear
Custom Made
Gear Profile Type C​ylindrical Gear
Gear Teeth manufacturing Gear Milling
Gear Teeth Grinding
Module (M) 12
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Helix Angle (β) Custom
Teeth Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 230-260 HB



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

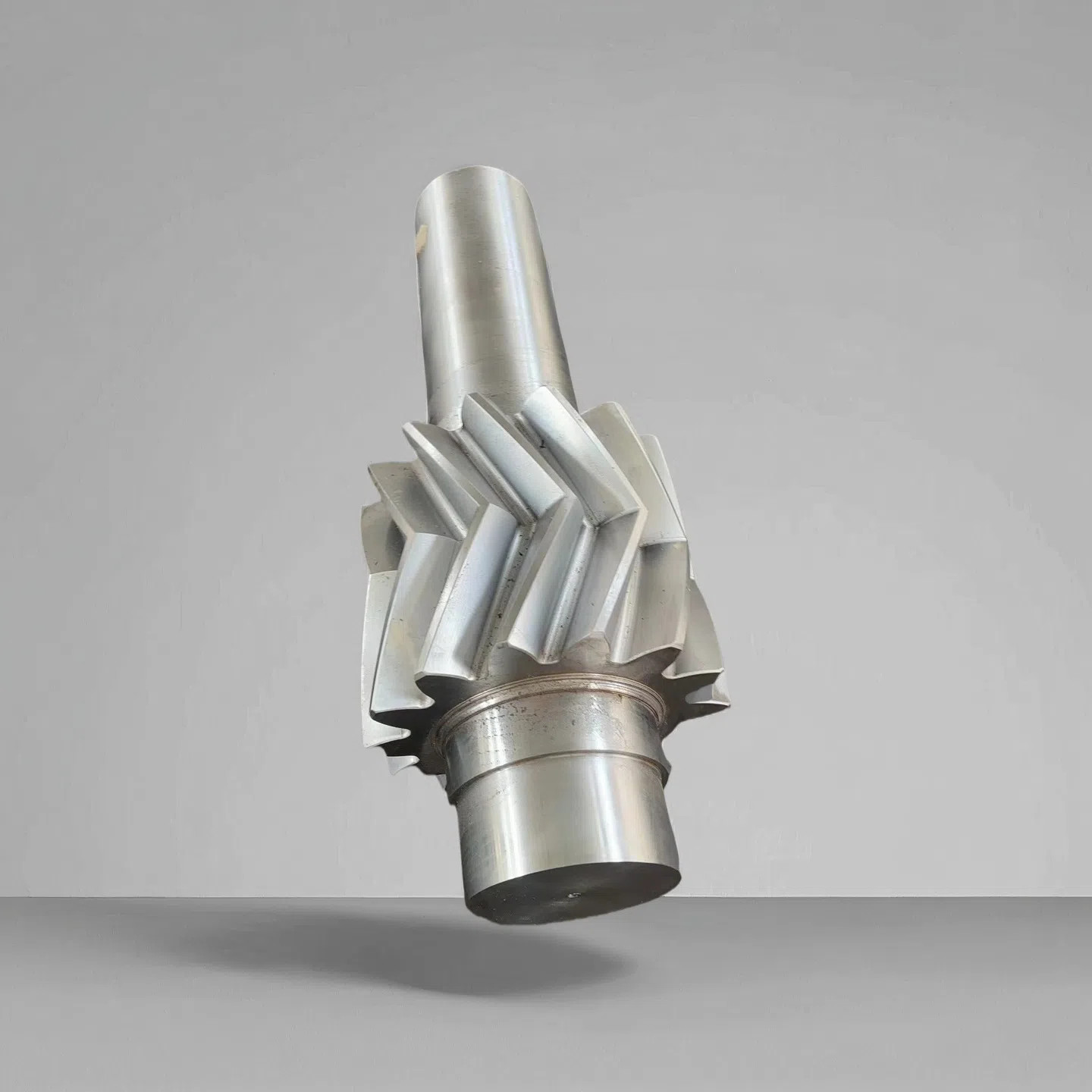

Herringbone Gears for High-Intensity Work Conditions and Wind Turbine Generators 0

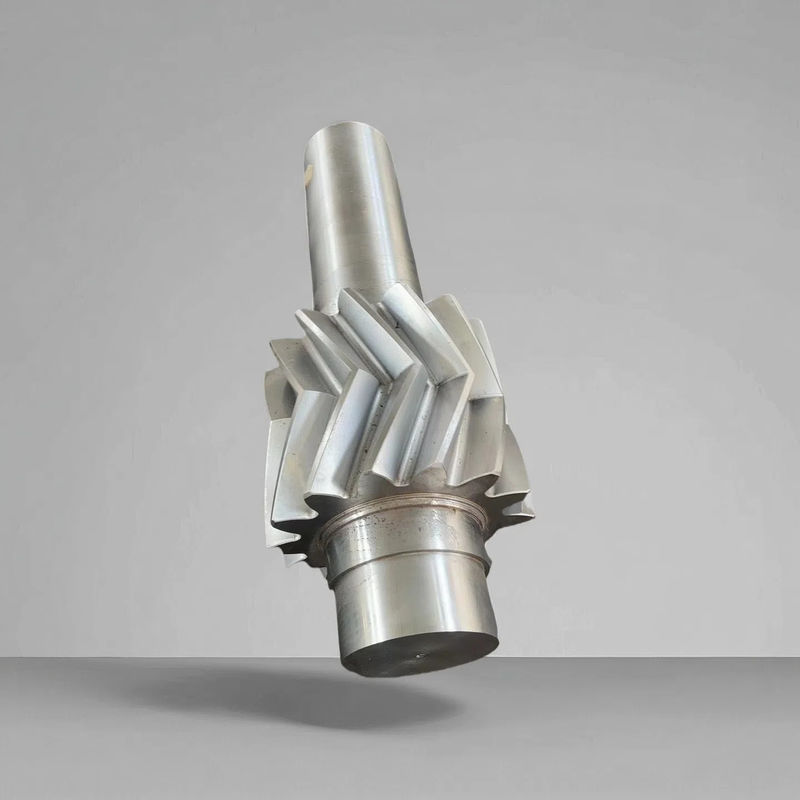

Herringbone Gears for High-Intensity Work Conditions and Wind Turbine Generators 1
