| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB22072701 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Set/Month |
| DP: | 3.09 | Module: | 8.22 |
|---|---|---|---|
| Gear Teeth Number: | 12 & 33 | Material: | AISI 4320 |
| Heat Treatment: | Carburizing | Manufacture Processing: | Gear Grinding |
| Highlight: | AISI 4320 Steel Bevel Gear Set,Helix Bevel Gear DP3.09,12T 33T Steel Bevel Gear Set |
||

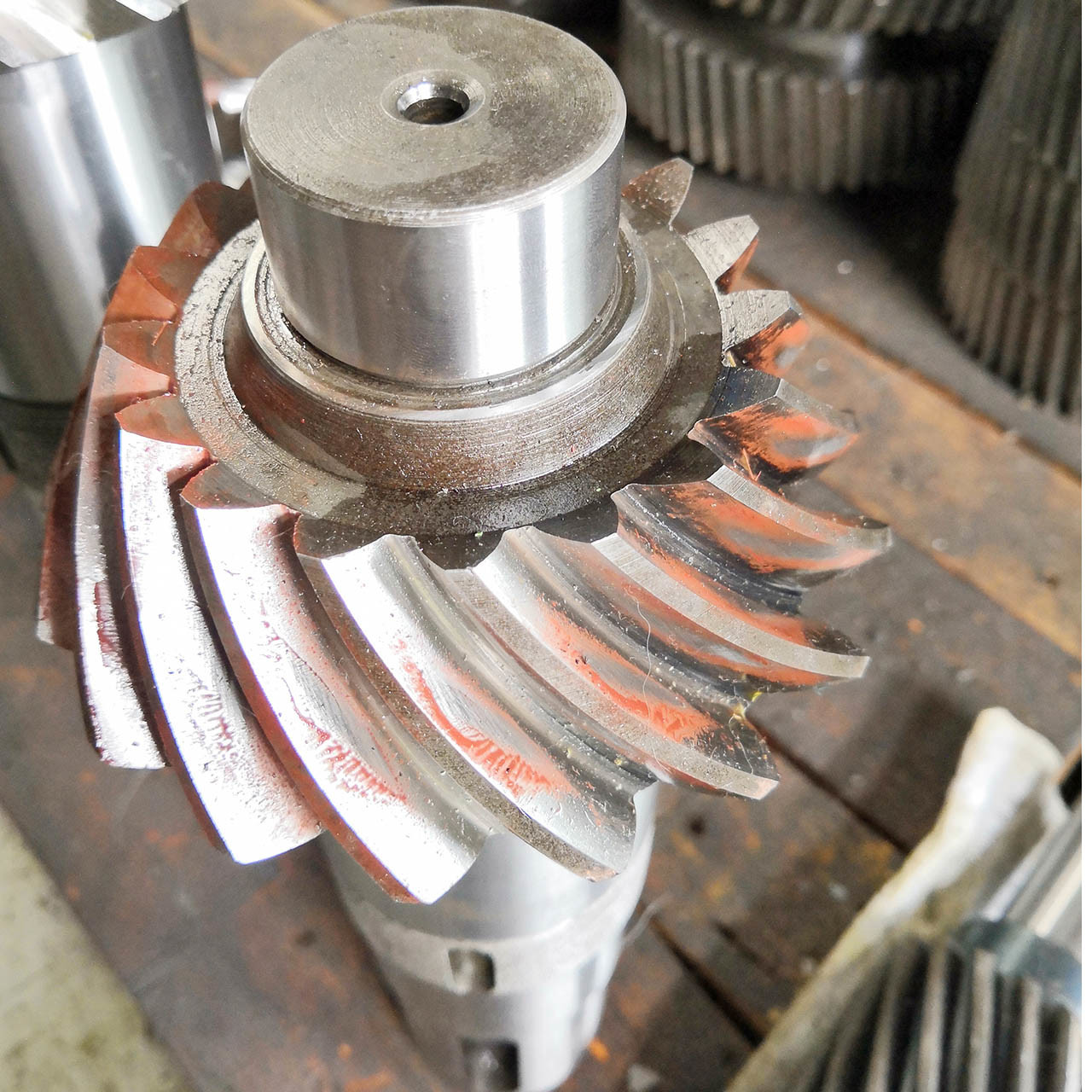

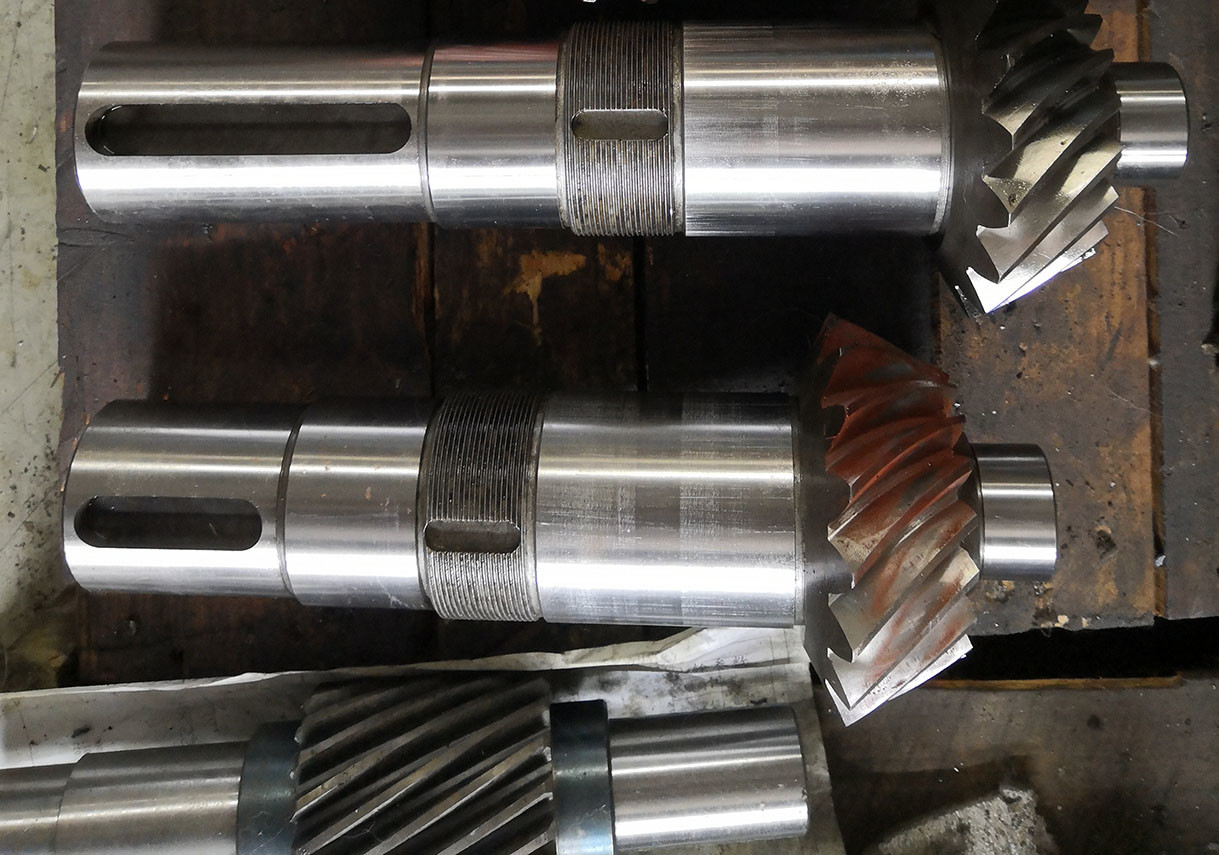

1) Applications of spiral bevel gear
High speed train, oil drilling system, automobiles
2) Feature of spiral bevel gear
Spiral bevel gear with a helical angle of spiral teeth, it can offers higher strength and less noise.
| Products | Spiral Bevel Gear |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Gear Teeth Manufacturing | Gear Teeth Grinding |
| DP | 3.09 |
| Working Angle/Shaft Angle | 90° |
| Number of Teeth (Z) | 12&33 |
| Pressure Angle (α) | 20° |
| Lead Angle | 35° |
| Material | AISI 4320 |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
