| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG22072201 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Material: | 42CrMo/AISI 4140 | Heat Treatment: | Induction Hardening |
|---|---|---|---|
| Hardness: | Gear 50-55 HRC Pinion 58-62 HRC | Gear Quality: | ISO 8-9 Grade |
| Profile Type: | Straight Bevel Gear | Quality Grade: | ISO 8-9 Grade |
| Highlight: | Customized Straight Bevel Gears,Customized 90 Degree Conical Gear,Straight Bevel Gears 90 Degree |
||

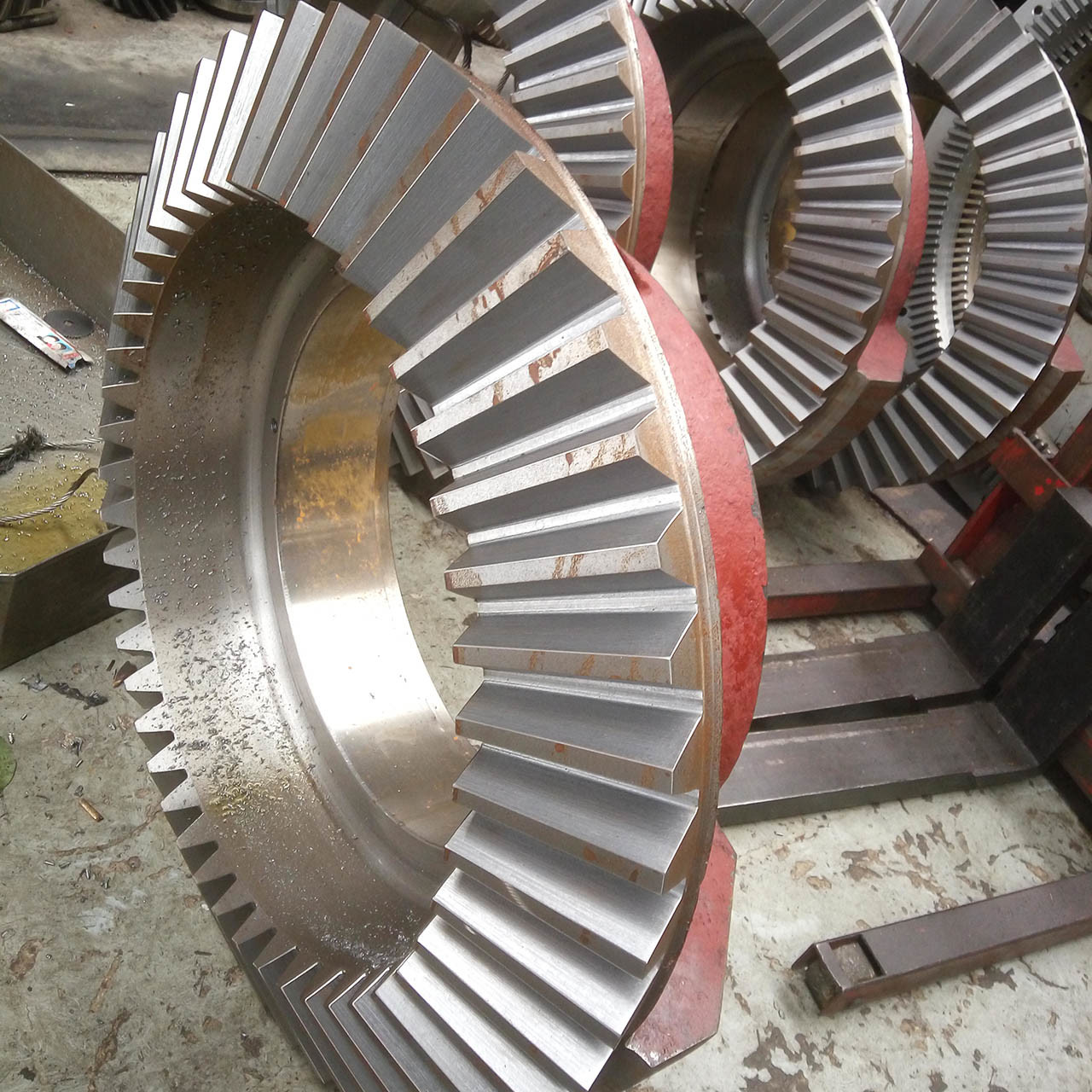

Customized 90 Degree Conical Gear For Mining Equipment-Conical Gear-Straight Bevel Gear
1) Feature of Straight Bevel Gear
Straight bevel gear is easy to manufacture and most widely used compared with other type bevel gears.
2) Description of Straight Bevel Gear
Stright bevel gear is a simple form of bevel gear having straight teeth. The gear teeth have tapered conical
elements that have the same direction as teh pitch cone line.
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 14 |
| Number of Teeth (Z) | 21/60 |
| Pressure Angle (α) | 20° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Induction Hardened/Carburizing |
| Surface Hardness | Pinion 58-62 HRC/Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
