| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Model Number: | BG22072201 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Module: | 12.5 | Teeth Number: | 33 & 52 |
|---|---|---|---|
| Material: | SAE 4340 | Heat Treatment: | Induction Hardened |
| Hardness: | 50-55 HRC | Quality Grade: | ISO 8-9 Grade |
| Highlight: | SAE 4340 Straight Bevel Gears,Gear Shaping Miter Bevel Gear,Straight Bevel Gears 12.5 Module |
||

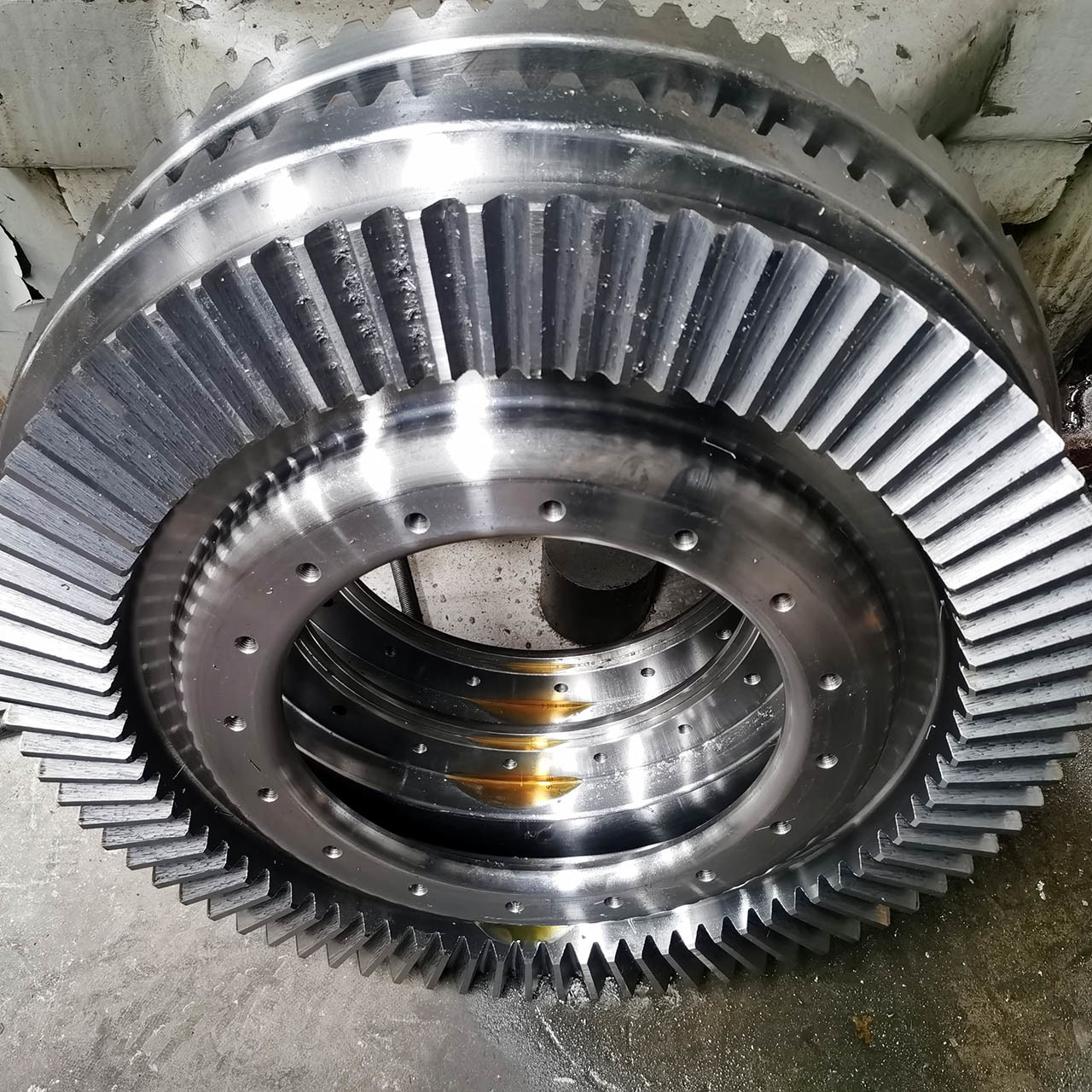

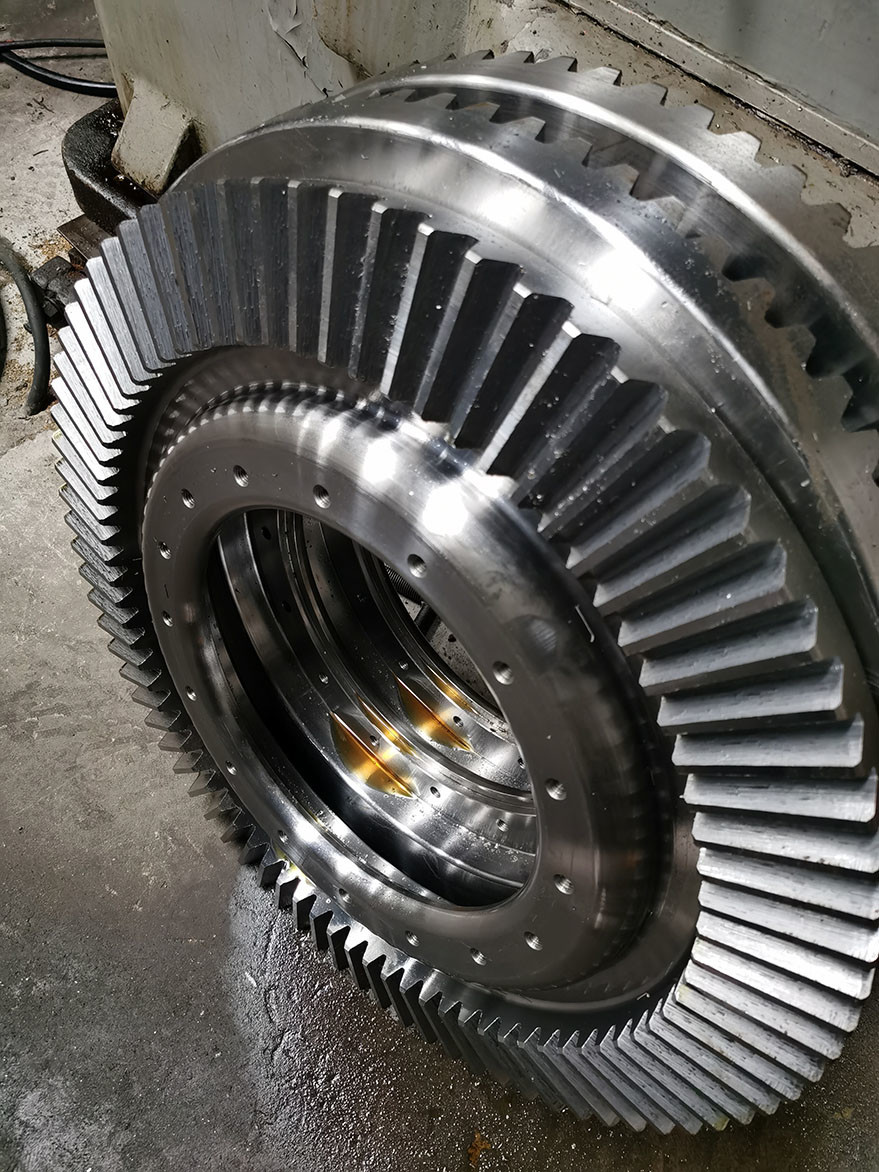

12.5 Module Gear Shaping Straight Bevel Gear-Conical Gear
1) Applications of straight bevel gear
Electric tools, machine tools, cone crusher, printing presses.
2) Features of straight bevel gear
a) Straight bevel gear can provides reduction ratios up to approx 1:5
b) Straight bevel gear is easy to manufacture.
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 14 |
| Number of Teeth (Z) | 26/60 |
| Pressure Angle (α) | 20° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Carburizing/ Induction Hardending |
| Surface Hardness | Pinion 58-62 HRC/Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
