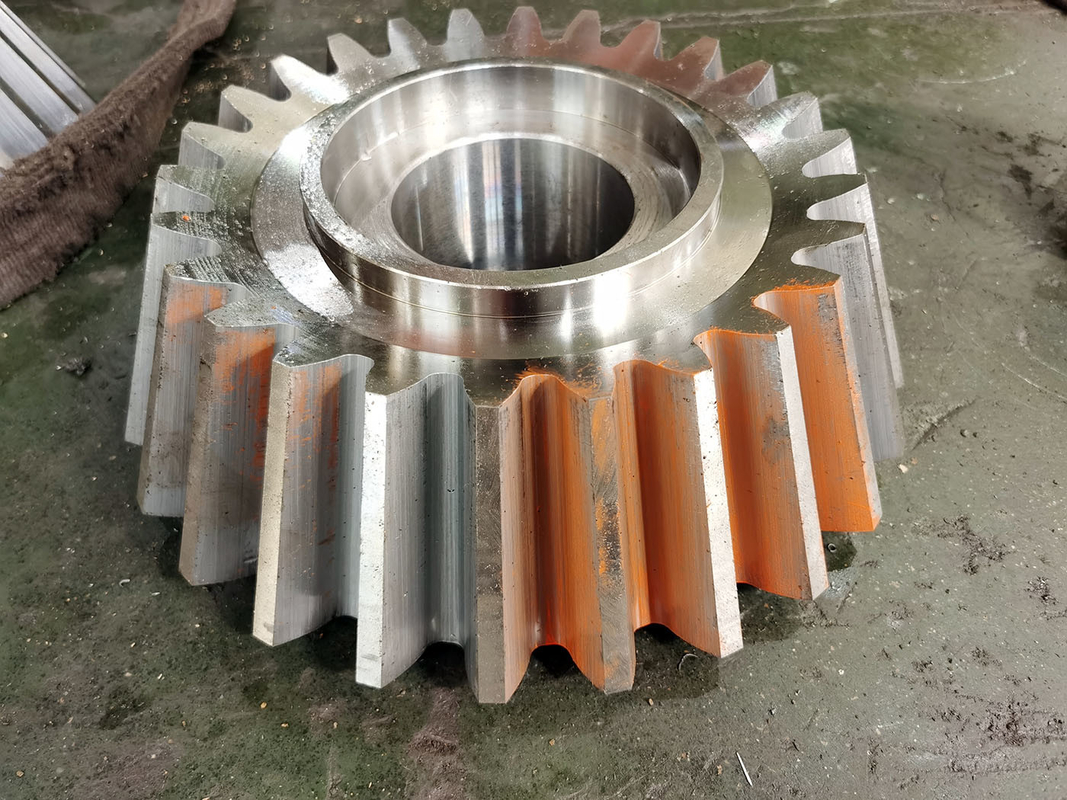

20CrNi2MoA Alloy 58-62 HRC Straight Conical Gear with Carburizing Heat Treatment
  • 20CrNi2MoA Alloy 58-62 HRC Straight Conical Gear with Carburizing Heat Treatment
20CrNi2MoA Alloy 58-62 HRC Straight Conical Gear with Carburizing Heat Treatment

20CrNi2MoA Alloy 58-62 HRC Straight Conical Gear with Carburizing Heat Treatment

Place of Origin CHINA
Brand Name YZGEAR
Model Number BG22123102
Product Details
Material:
20CrNi2MoA/ SAE 4320
Pressure Angle:
20°
Pitch Angle:
19.29°
Face Angle:
21.01°
Thickness:
19.63
Addendum Factor:
1
Highlight:

Alloy Pinion Straight Conical Gear

,

Straight Conical Gear With Carburizing

,

Straight Conical Gear Heat Treatment

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$300.0/Set
Packaging Details
Plywood Crate
Delivery Time
55 Days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
200 Sets/Month
Product Description

20CrNi2MoA Alloy Pinion Straight Conical Gear With Carburizing Heat Treatment

1) Applications of Straight Bevel Gear

Cone crusher, power tools.

2) Heat treatment of Straight Bevel Gear

Carburising heat treatment for pinion gears

3)Material of Straight Bevel Gear

20CrNi2MoA (similar to SAE 4320)

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Shaping
Teeth Grinding Included
Module (M) 12.5
Number of Teeth (Z) 26/60
Pressure Angle (α) 20°
Lead Angle Custom
Accuracy Grade ISO 8-9 Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

20CrNi2MoA Alloy 58-62 HRC Straight Conical Gear with Carburizing Heat Treatment 0

Manufacturing Process



20CrNi2MoA Alloy 58-62 HRC Straight Conical Gear with Carburizing Heat Treatment 1
